CardioSoft CAM Connect 14 (CC14) without Integration Installation Guide

This guide will show you how to install and configure CardioSoft for CAM-USB and CAM Connect 14 ECG machines. If you need the license keys and SWOPT files please request them by going to Numed Installation Guides and Request Licenses.

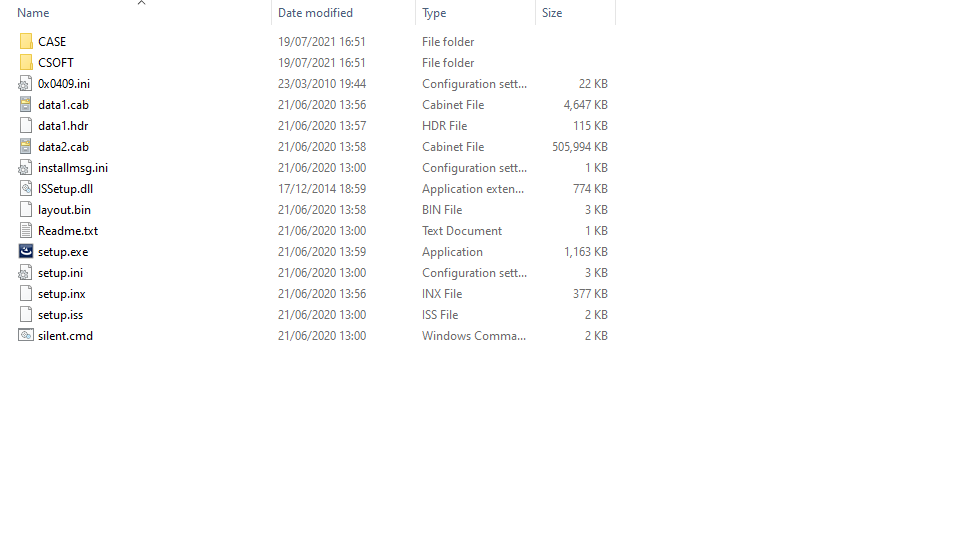

Download and extract https://downloads.numed.co.uk/software/ge/Cardiosoft.zip then run setup.exe

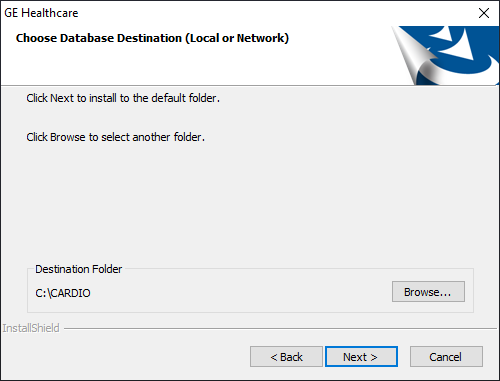

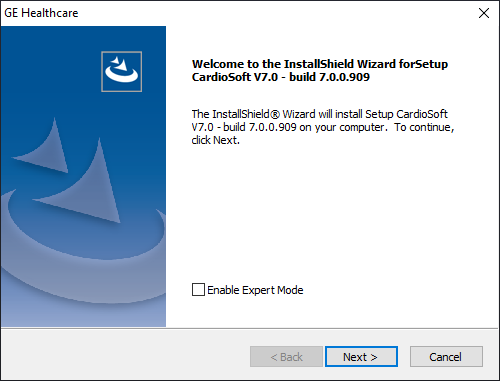

Click Next
Click Next

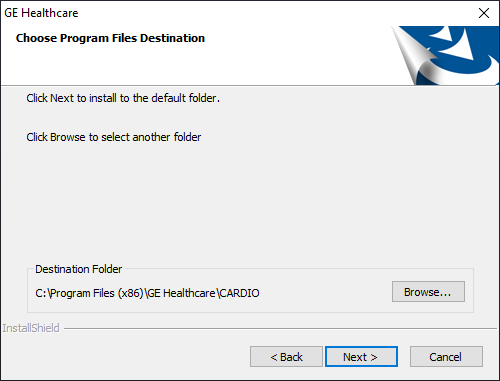

Click Next

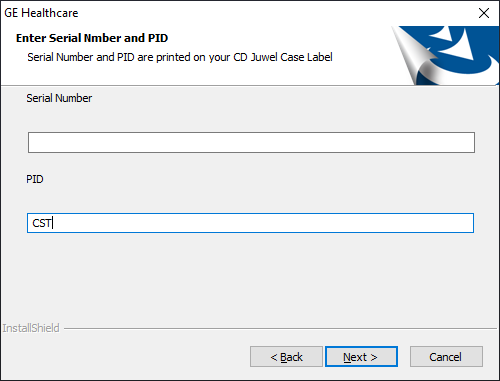

Enter the serial number found on the base of the unit, for those units whose serial numbers begin with V you will need to remove the VU5 from the front and the letters at the end to locate the serial number. Enter the serial number in the format SSG[DEVICE SERIAL]HA. So, if the device serial number is VU521220099SA, the software serial will be SSG21220099HA. The PID is always CST then click Next

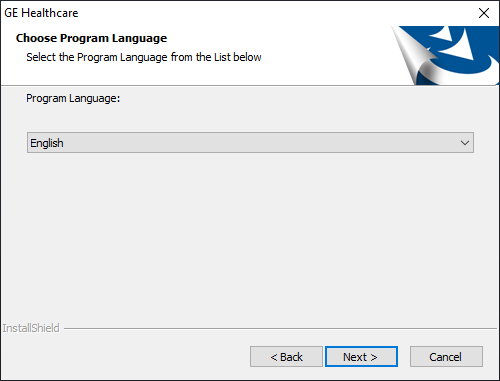

Ensure English is selected and click Next

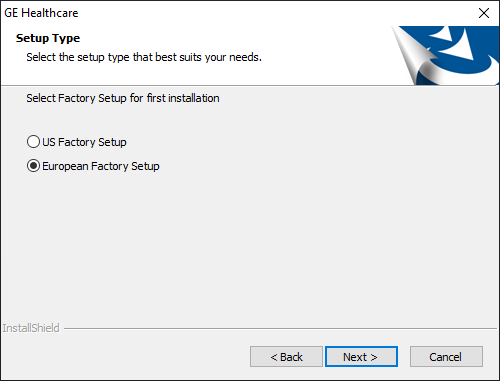

Ensure European Factory Setup is selected – if this step is missed you will need to uninstall and start from the beginning again.

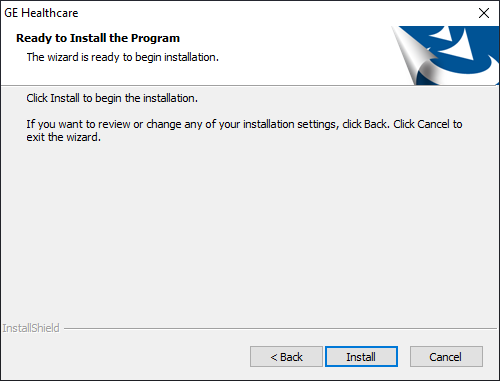

Click Install

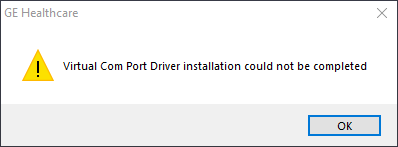

The Virtual Com Port Driver is not needed – click OK

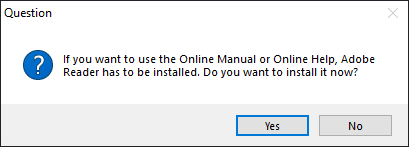

Click No to installing Adobe Reader

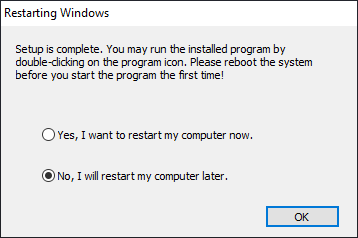

Click No to restarting the PC and click OK

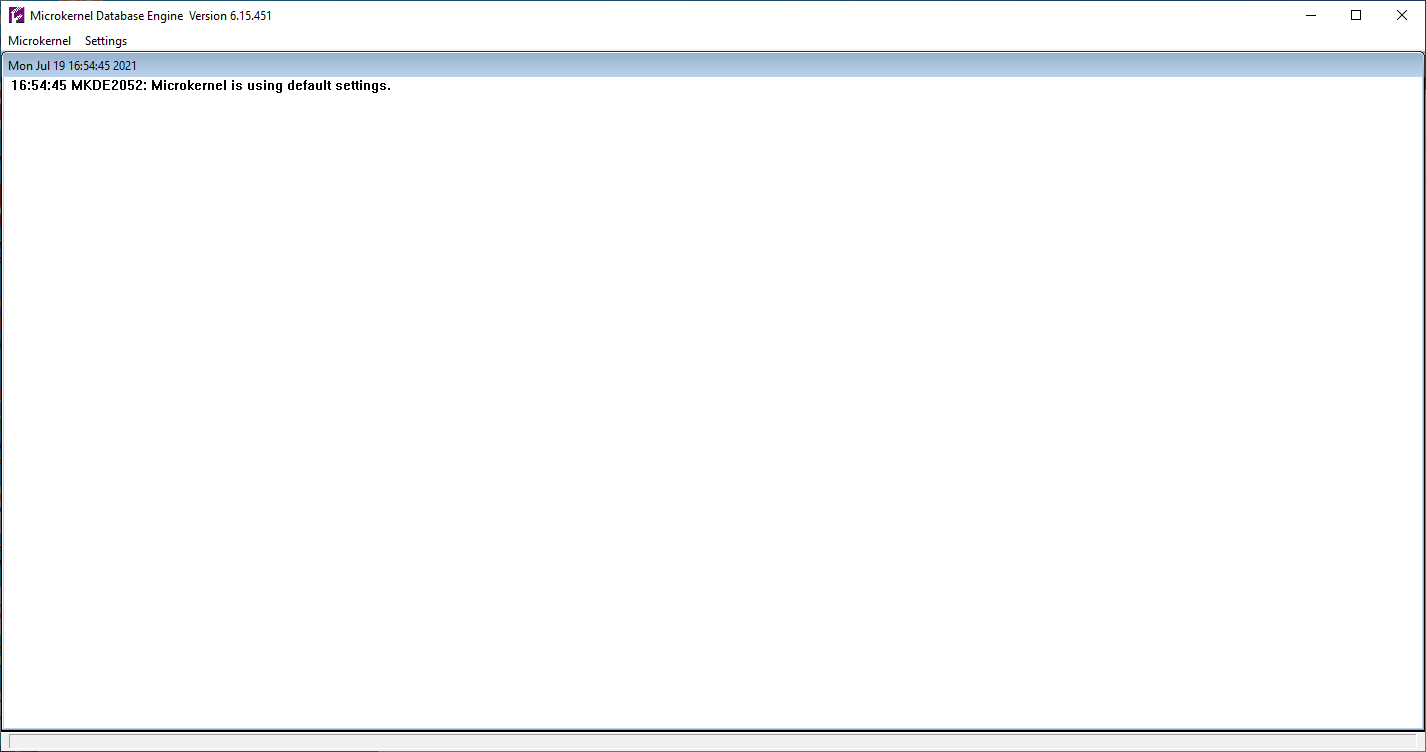

This window will have opened automatically, you must close it before proceeding as it will impact on software operation.
If the device is a CAM-USB (serial number begins 101…), please download and run https://downloads.numed.co.uk/Support/GECardioSoft/CAM-USB-V2-Driver-Set.zip
Plug in the ECG machine to a spare USB port on the PC

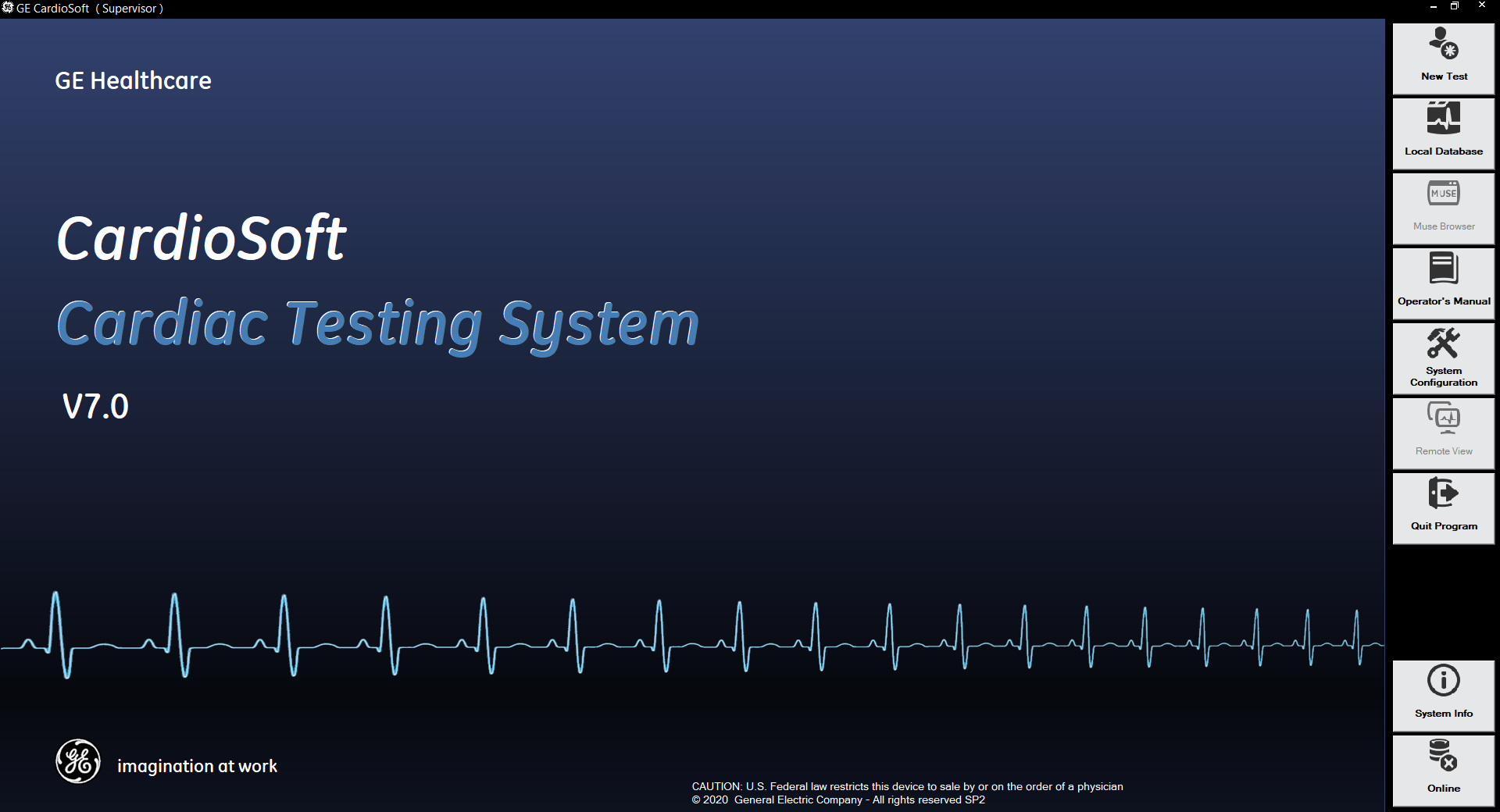

Go to the desktop and open CardioSoft

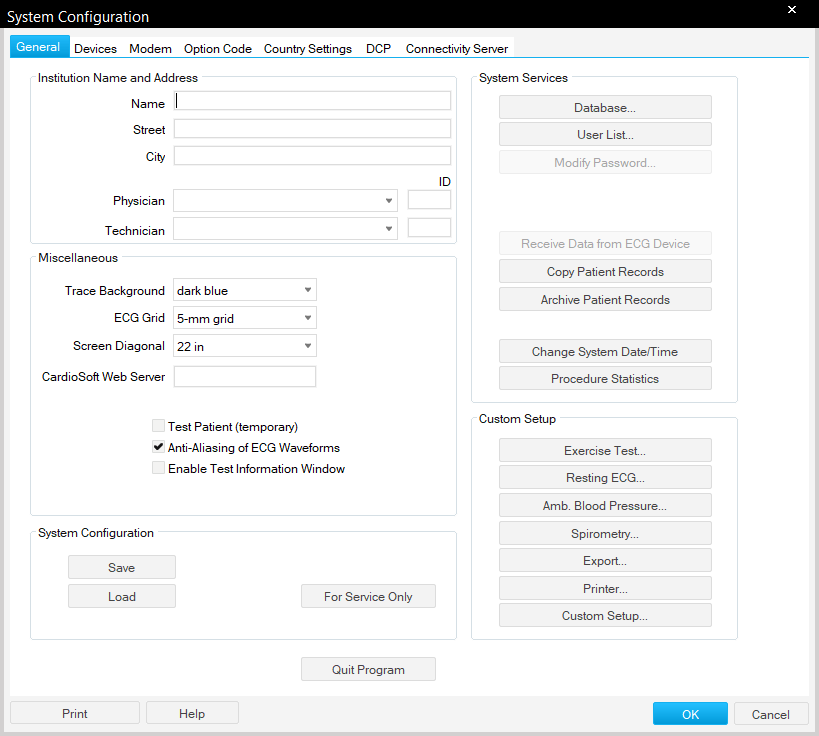

Click System Configuration on the right-hand side.

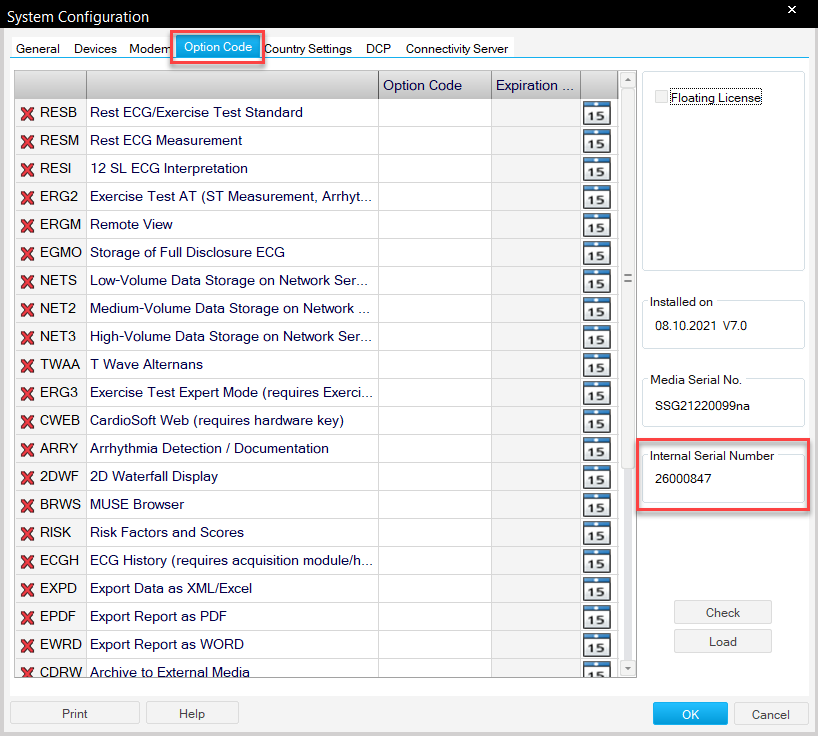

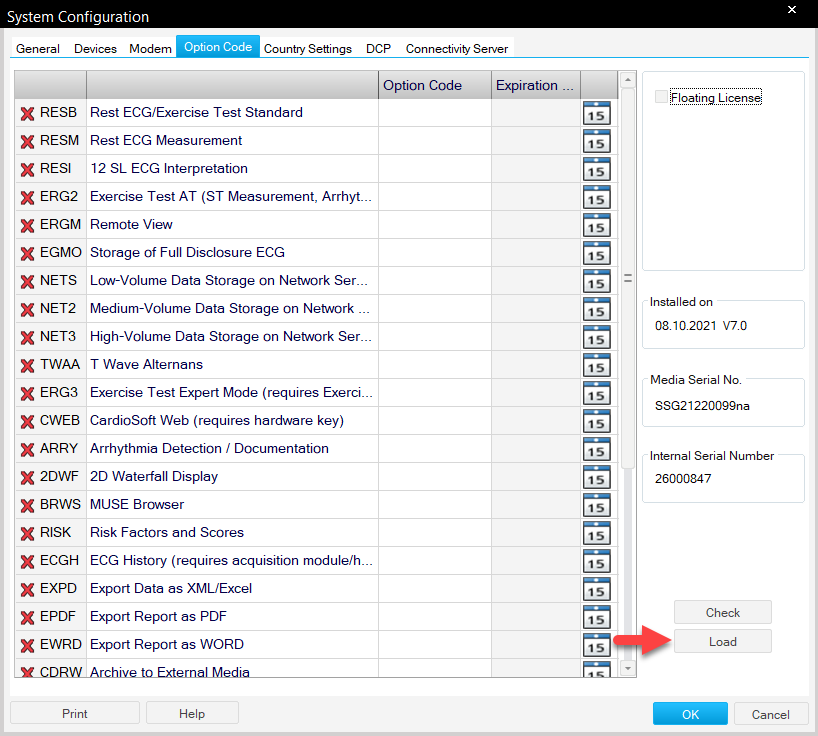

Go to the Option Code tab (top of the window) and confirm the serial number is visible.
Click Load

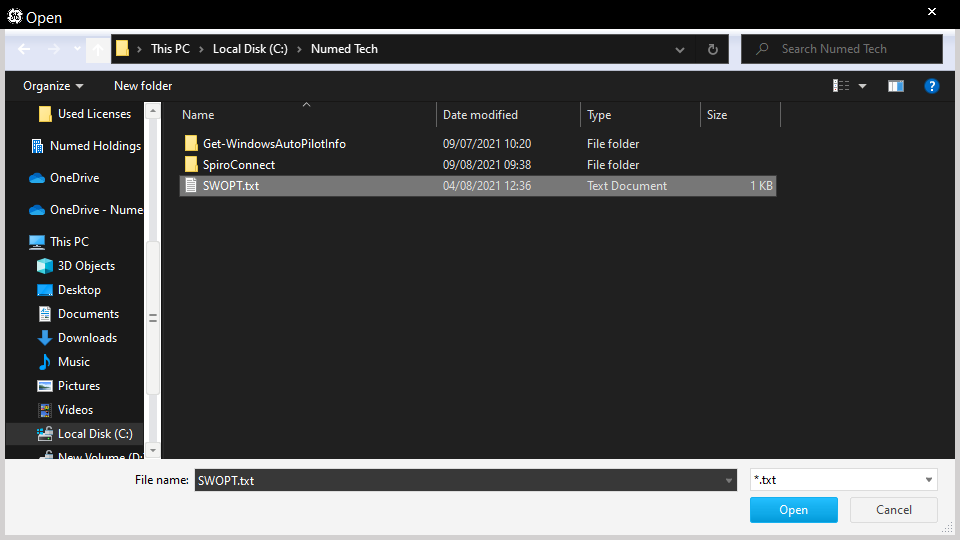

Navigate to where you’ve placed the supplied option codes text file, this file is typically named SWOPT – serial number.txtand click open.

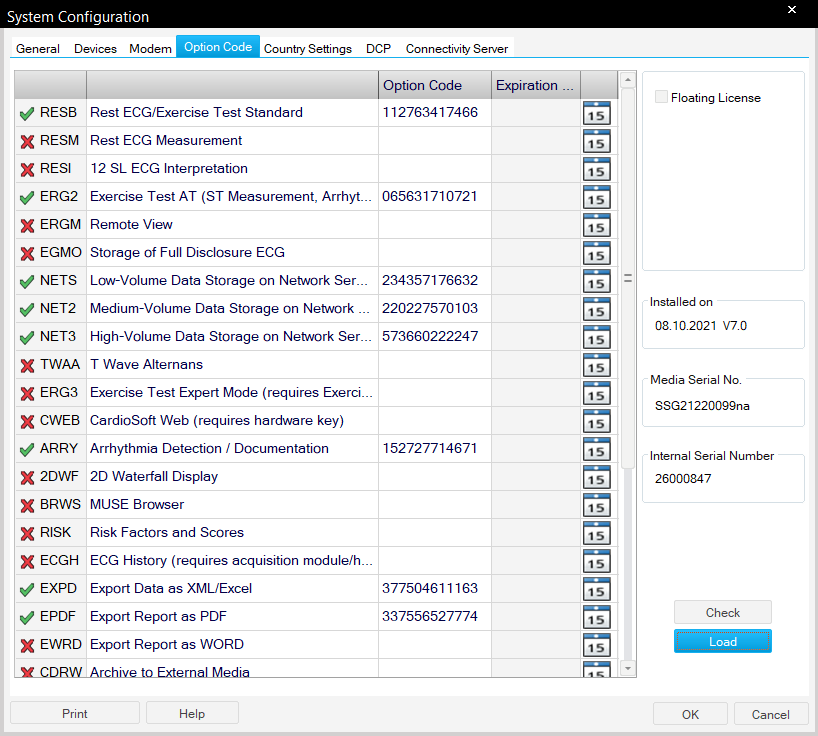

If the Option codes are correct you should see a green tick against the imported codes. Click OK
Click System Configuration
Click Resting ECG in Custom Setup

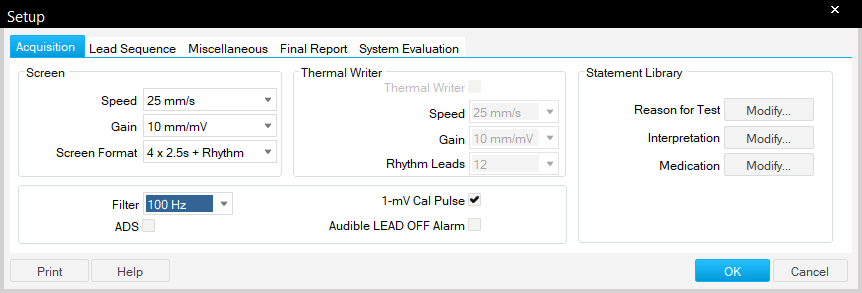

Configure Acquisition tab as below

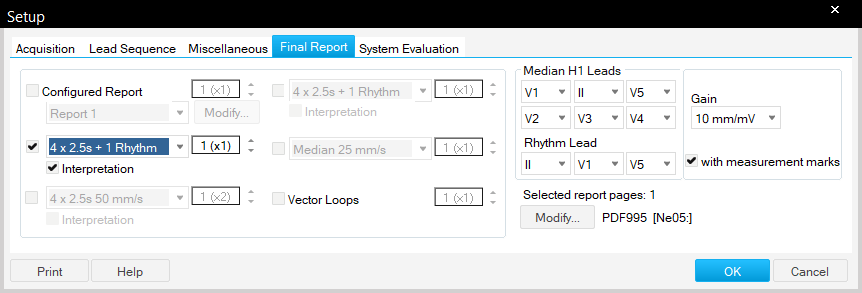

Configure Final Report tab as below
All other tabs you can leave with defaults, once finished Click OK
Click on Export in Custom Setup

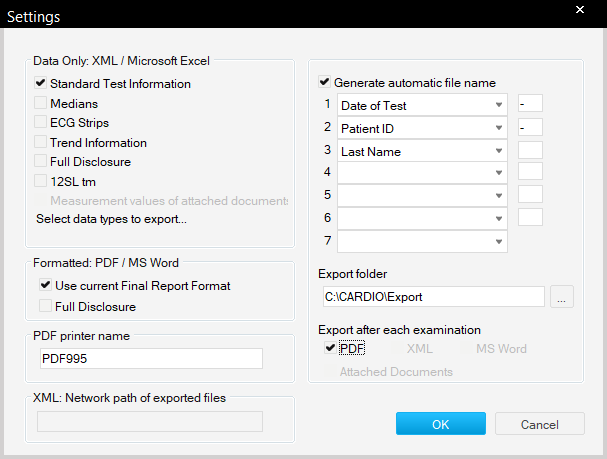

Configure setup as below, please note the PDF tick box will only be enabled if the device is plugged in. Click OK when done
Click Printer in Custom Setup

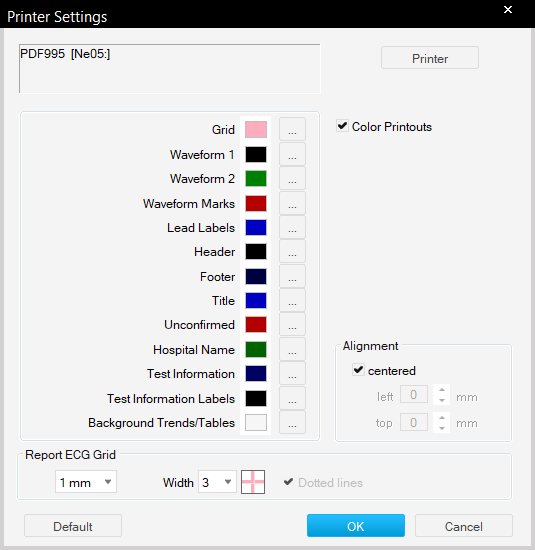

Configure as below, click OK when done
Click OK and Quit Program
