Fitting and Removing the NO sensor

Fitting and Removing the NO sensor

To fit, remove or replace your NO sensor follow the instructions below

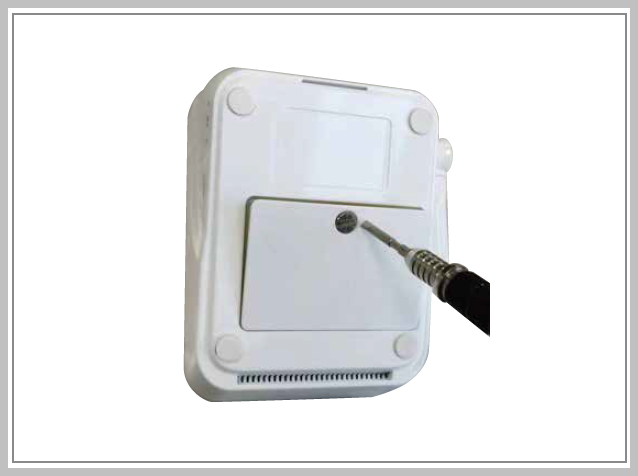

  1. Turn the monitor upside down and unscrew the sensor compartment cover, and set it to one side

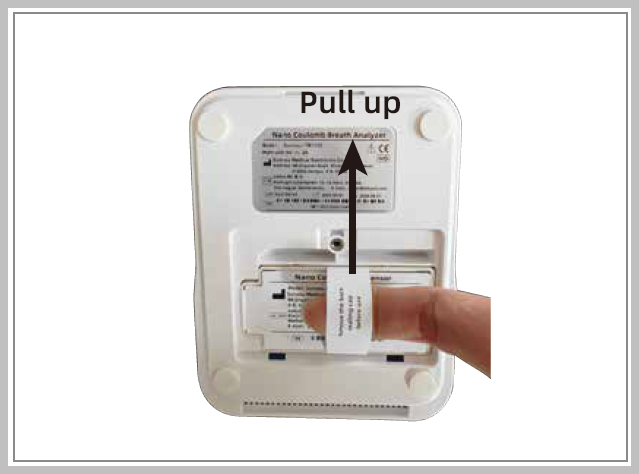

  2. Remove the sensor by pulling straight up using the handle on the back of the sensor

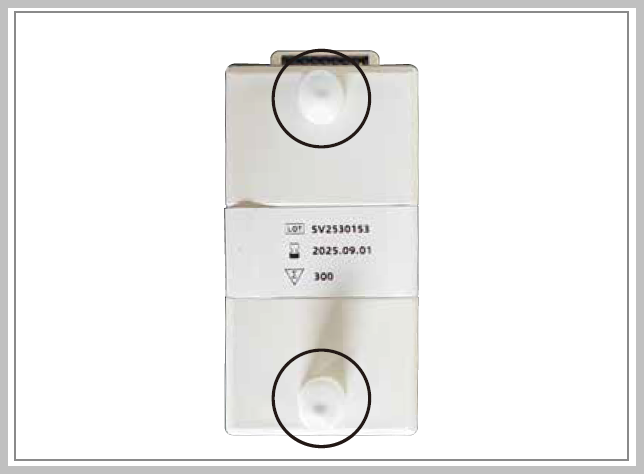

  3. Unpack and remove the sealing cap from the new sensor

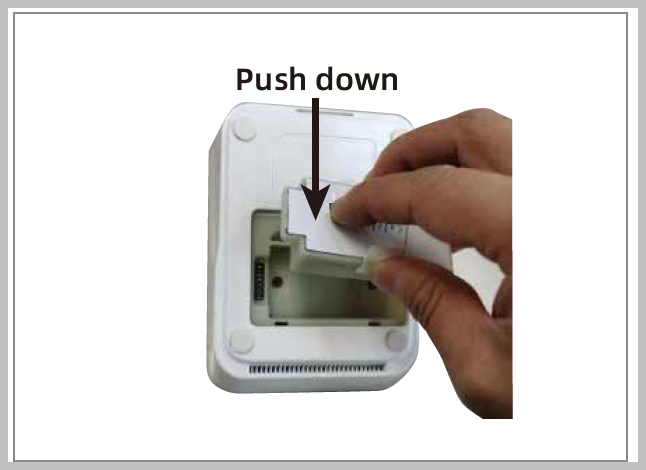

  4. Fit the new sensor, ensuring that it is in position correctly and push down to ensure a good fit
  5. Screw the sensor compartment cover back on.
