HMS Client Server Port, GDT and Export Settings Tech Tip For HMS 6.4 onwards

HMS Client Server Port, GDT and Export Settings Tech Tip For HMS 6.4 onwards

This tech tip will show you how to configure the settings for the HMS Client Server so that you can ensure the settings are correct when using the software at any point, but especially for the first time.
The software settings are for the logged-in Windows user only; when a new user logs in, they may need to check their settings at that time. There is a PDF version of this guide that you can download in the attachments at the bottom or you can watch our video on this as well.

1.   Open the HMS Client Server via the icon on the desktop
A grey square with white letters Description automatically generated

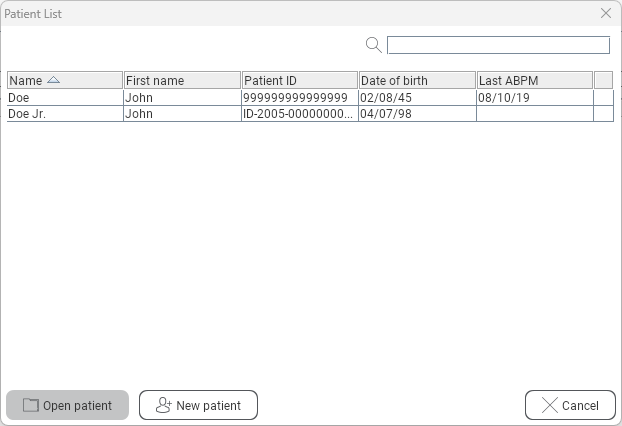

2.    Double-click on John Doe.

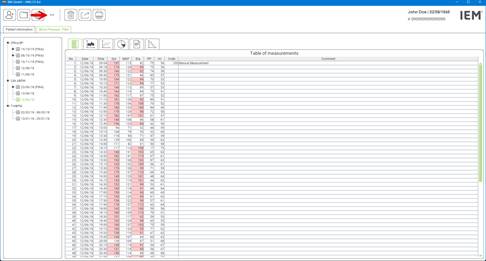

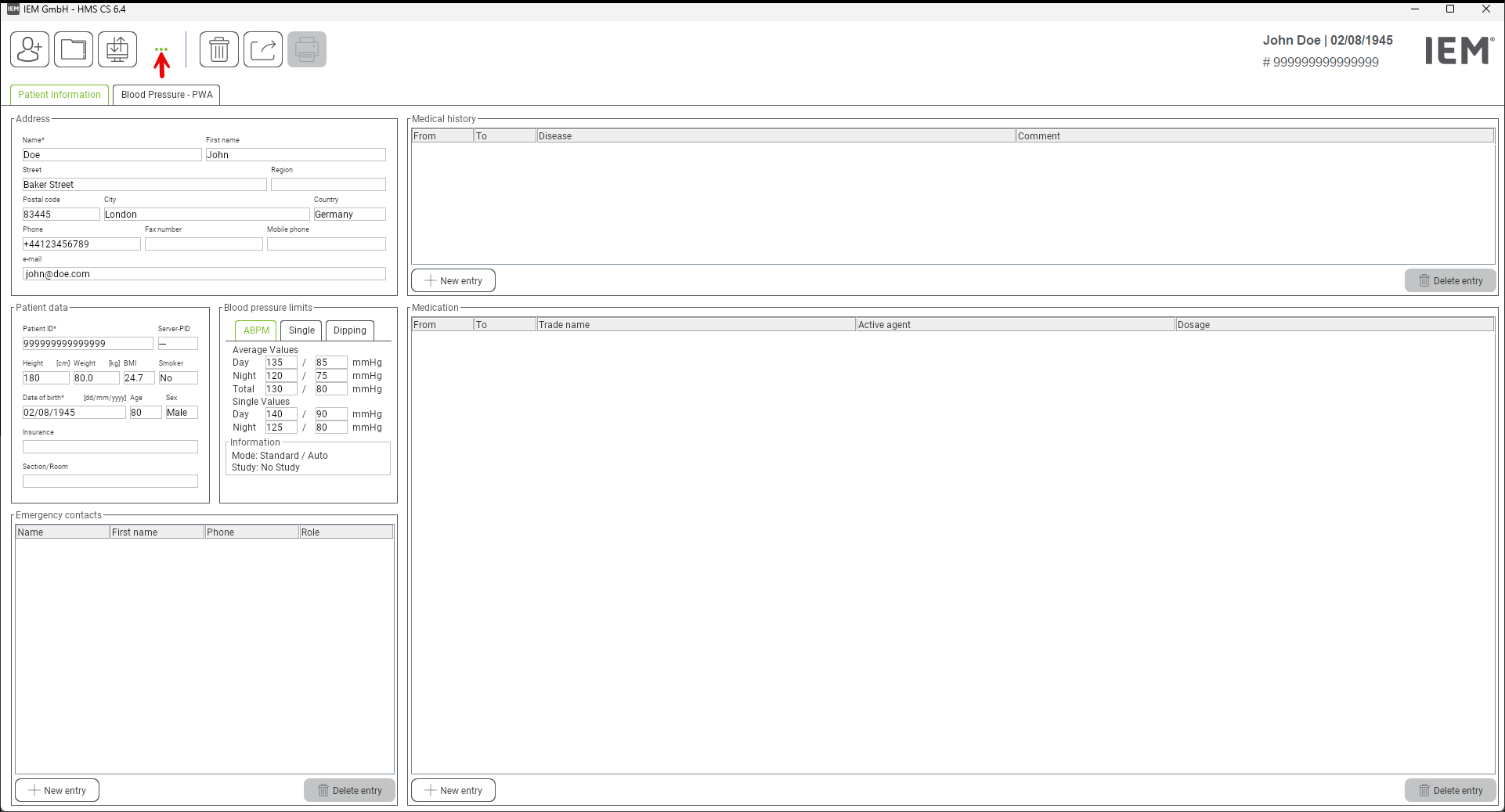

3.    Click the 3 dots at the top of the screen

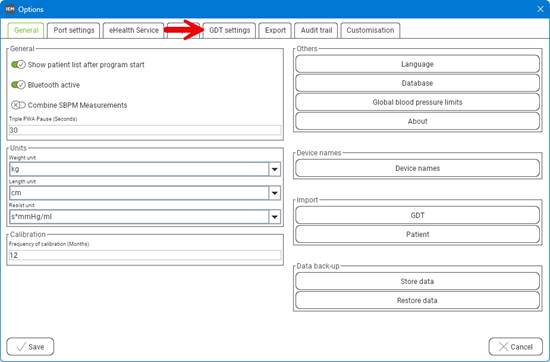

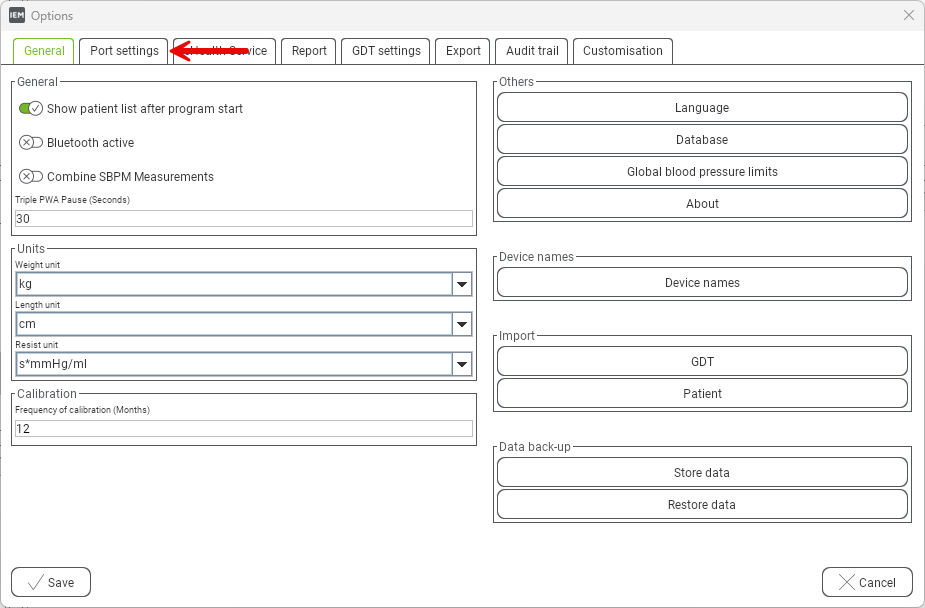

4.    Ensure that the General settings match – Bluetooth can be turned off if using the download cables only – and then go to Port Settings

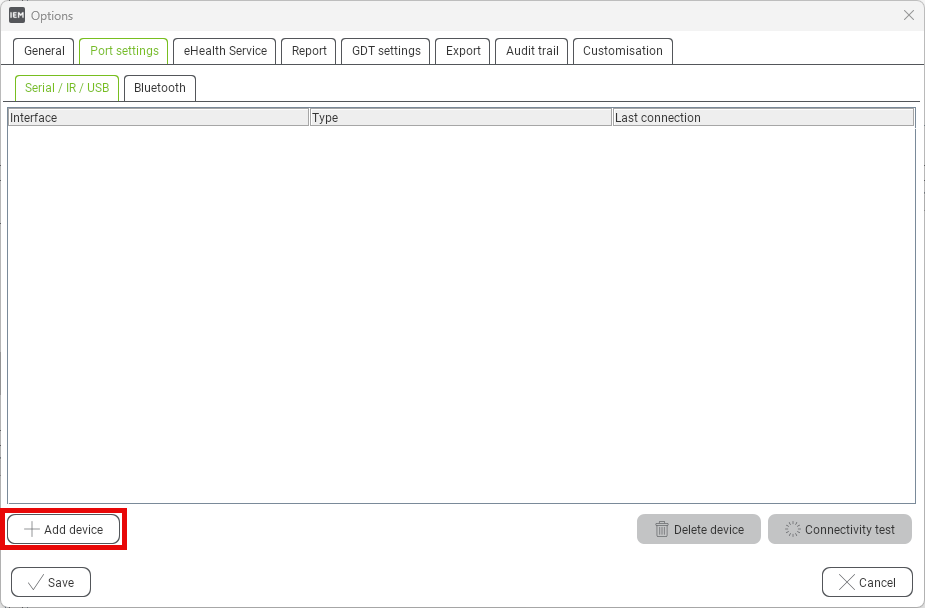

 5.    Ensure that the Mobil-o-Graph is connected with CO on its screen, then click Add device

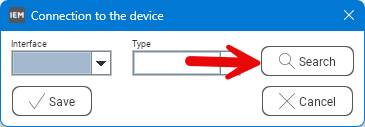

6.    Click Search

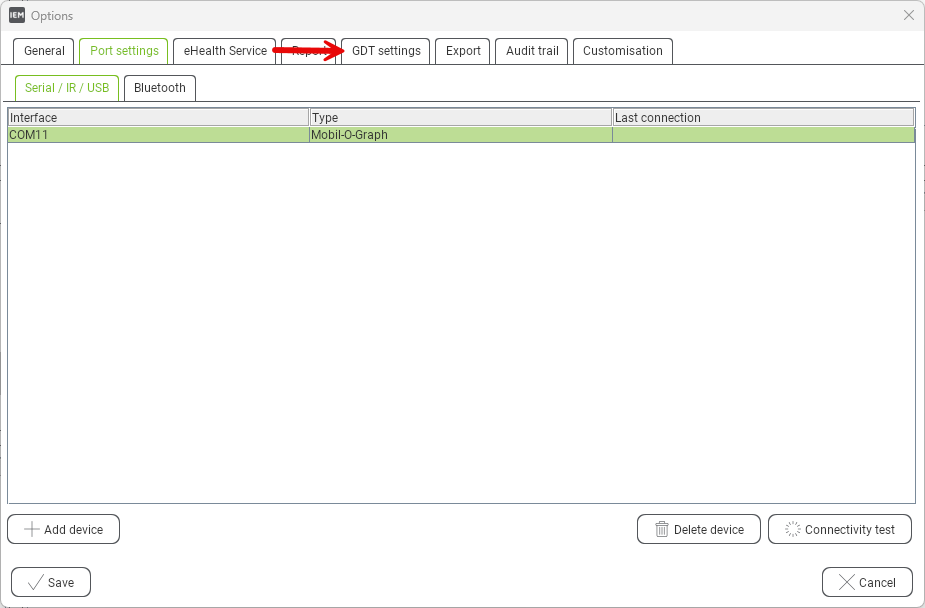

7.    Make sure it has detected your device, and then click Save – please note your Interface may display a different COM number
A screenshot of a computer Description automatically generated
8.    Click Save

10. Go to GDT Settings

11.

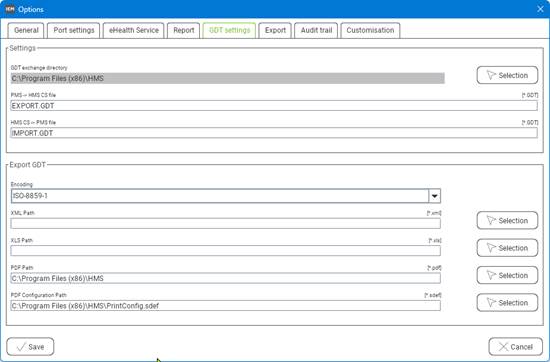

  1. Check and make sure that the settings ringed in red are correct
  2. Click the selection on the PDF Path

  3. Click the drop-down arrow at the top of the box.

  4. Scroll up until you locate (C:) - in my example, it shows as Local Disk, but on your computer, it may show differently.
  5. Double-click on Program Files (x86)
  6. Double-click on HMS
  7. Click Save
  8. Click Selection on PDF Configuration Path
  9. Double-click on HMS
  10. Select PrintConfig.sdef and then click Save. If PrintConfig.sdef is missing, please contact Numed support using the chat button on this page.
  11. The port and GDT settings will need to be done for each Windows user
  12. Click Export

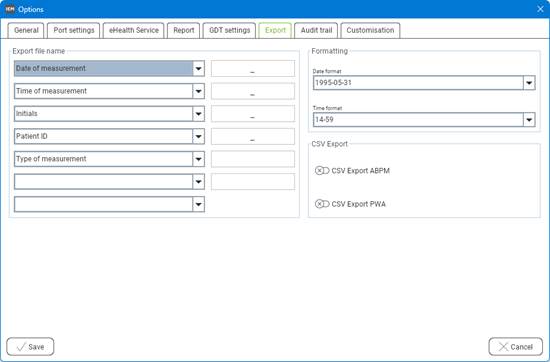

  13. Ensure the settings match and then click Save
Your software is now ready for use, and you are able to use the Mobil-o-Graph. If you have any issues or problems connecting the device, please contact Numed support via https://www.numed.co.uk/support or by calling 0114 399 0010 option 3.
