How to activate store as PDF on the MAC600

How to activate store as PDF on the MAC600

When a MAC 600 is purchased new, it does not have store PDF to SD card enabled by default. If you are transferring your ECGs to the clinical system via the SD card, follow the steps below to enable the PDF creation.

  1. Turn the machine on
  2. Press F4 More

  3. Press F2 Setup

  4. Enterthe  password, then press Enter (the round button in the middle of the arrows)
    1. For units before April 2023, this is 1111
    2. For units after April 202,3 this is 11112222
  5. Scroll down to PDF Configuration and press Enter

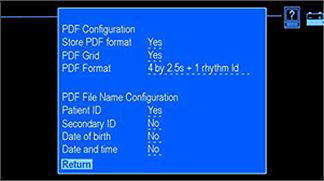

  6. Using the Enter and arrow keys, change Store PDF format to Yes. Once you've done this, the screen should look like:

  7. Scroll to the bottom of the menu and press Enter on Return

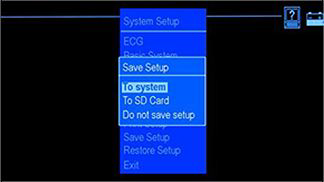

  8. Scroll down to Save Setup and press Enter
  9. Store Setup to both the System and the SD card.

  10. You can now exit the setup.
