This guide will show you how to install and configure the Intelligent Integration Interface for use with the Mobil-o-Graph ABPM device. If you need the license keys, please request them by going to Numed Installation Guides and Request Licenses. Before performing this installation, you will need the Mobil-o-Graph ABPM device and its download cable. If you are installing on Windows 11, only download cables with a blue sheath that are compatible. If you have an incompatible download cable, please go to https://www.numed.co.uk/products/iem-mobil-o-graph-usb-download-cable-blue to source a replacement.

Alert
All steps in this guide must be followed for your device to work correctly. The installation and configuration will take between 15 and 40 minutes to complete.

Installation of the Intelligent Integration Interface

INPS Vision hosted? Click here first
  1. Download https://downloads.numed.co.uk/Support/I3Tools/com0com.exe
  2. Run as administrator com0com.exe
  3. Click Next
  4. Click I Agree

  5. Untick CNCA <-> CNCB, then click Next
  6. Click Install

  7. Click Install if required on any pop-up
  8. Click Next

  9. Tick Launch Setup and click Finish

  10. Set the COM ports to COM8 and COM9, then click Apply

  11. Close com0com down.


  1. Download and extract https://downloads.numed.co.uk/software/i3/I3installer.zip.

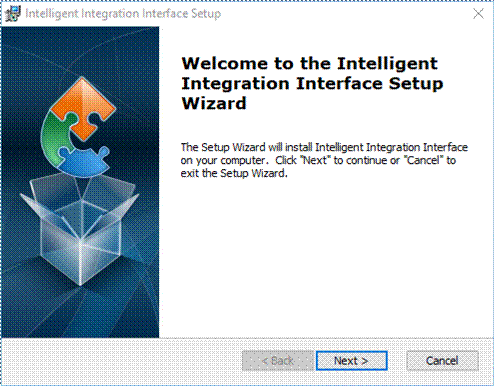

  2. Run I3installer.msi and then click Next.

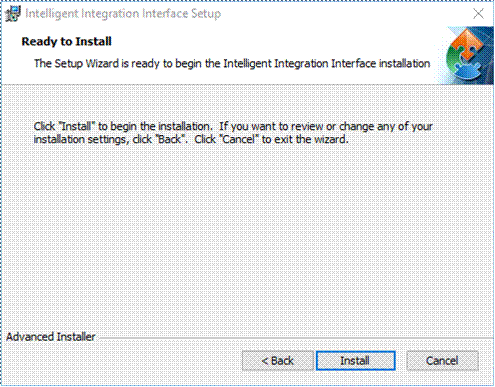

  3. Click Install

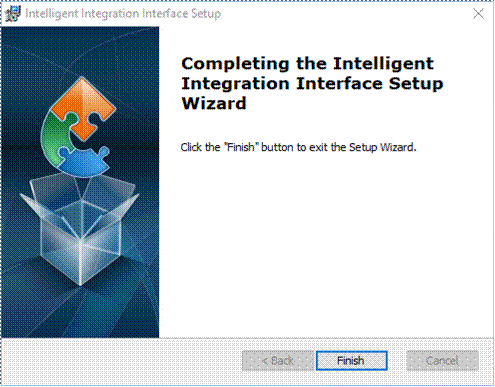

  4. Click Finish

Installation of HMS Client Server for Mobil-o-Graph

  2. Run as administrator CDM212364_Setup.exe

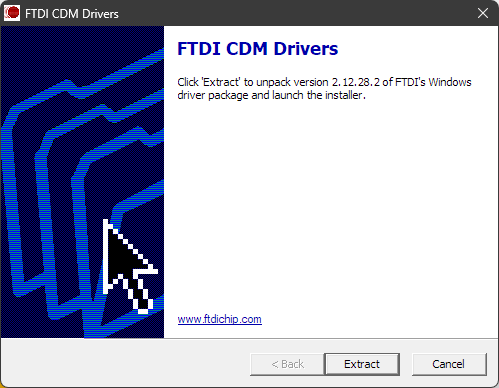

  3. Click Extract

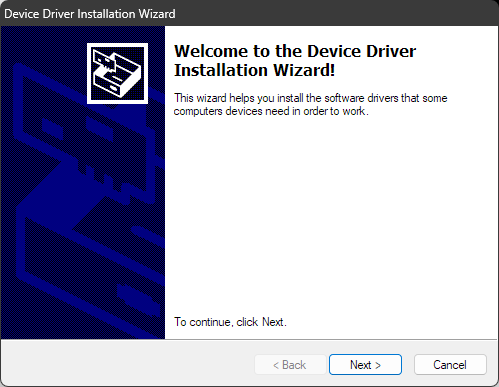

  4. Click Next

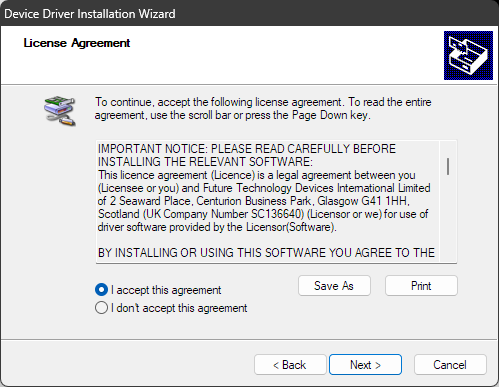

  5. Accept the agreement and click Next.

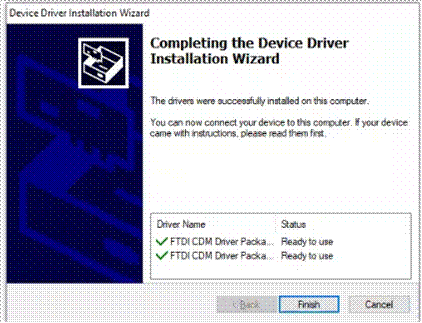

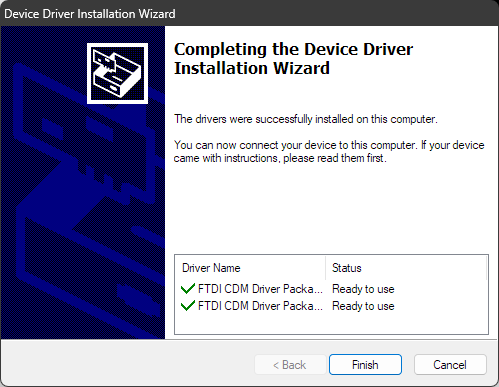

  6. Click Finish

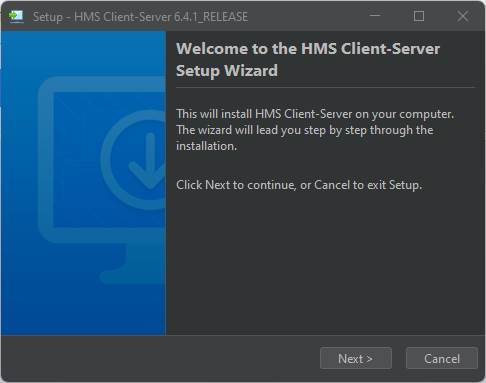

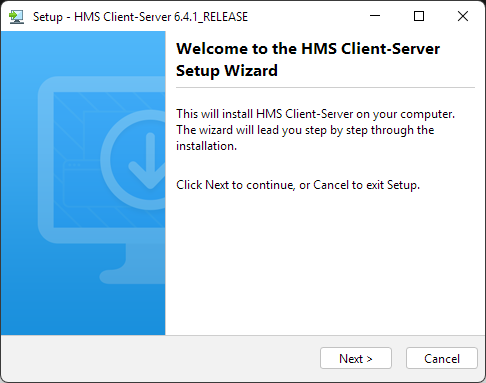

  7. Go back to the HMS-CSInstaller folder and run as administrator setup.exe

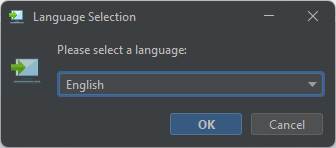

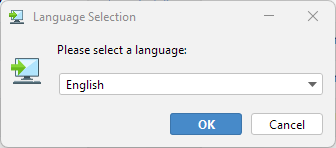

  8. Ensure English is selected and click OK

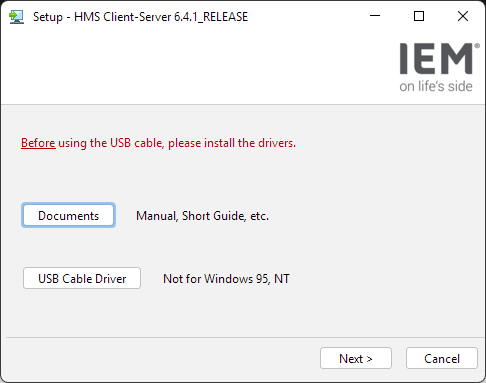

  9. Click Next – you will have already installed the relevant drivers in an earlier step above.

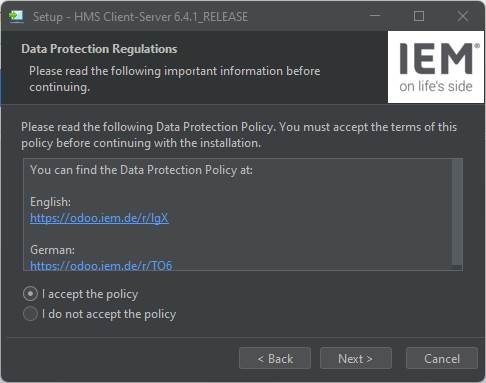

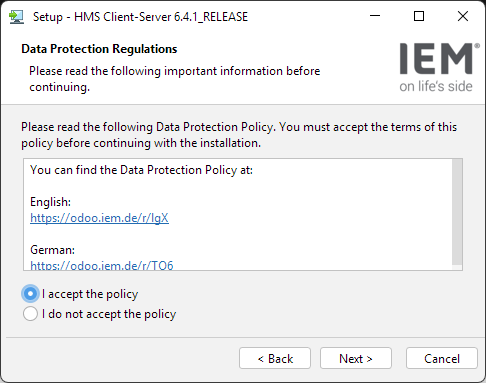

  10. Accept the policy and click Next

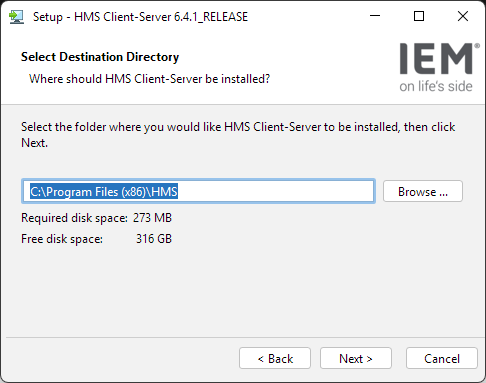

  11. Click Next

  12. Click Next

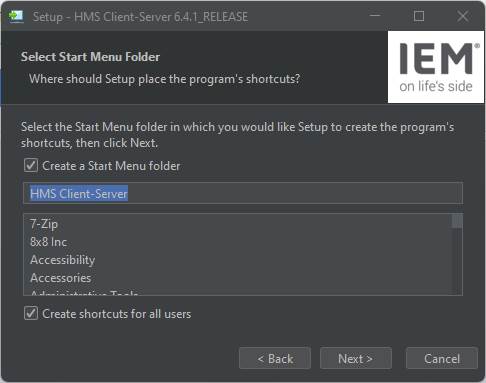

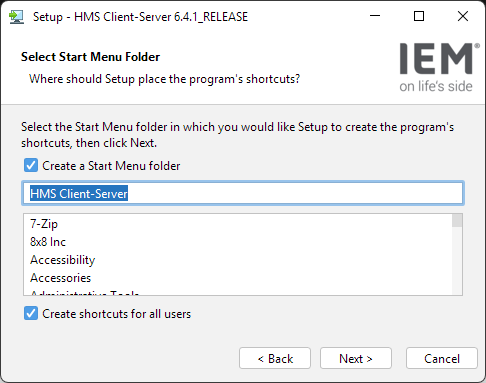

  13. Check that Create a Start Menu folder and Create shortcuts for all users are ticked, then click Next

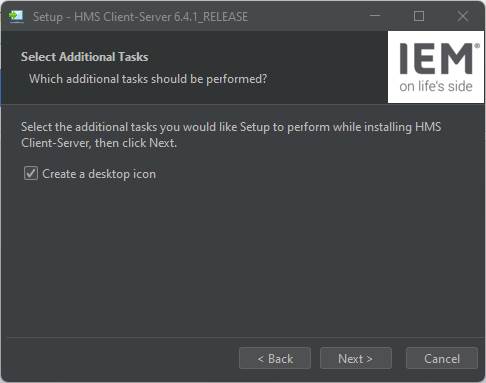

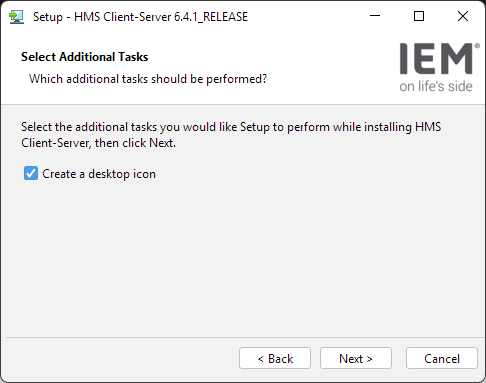

  14. Ensure that Create a desktop icon is ticked and click Next

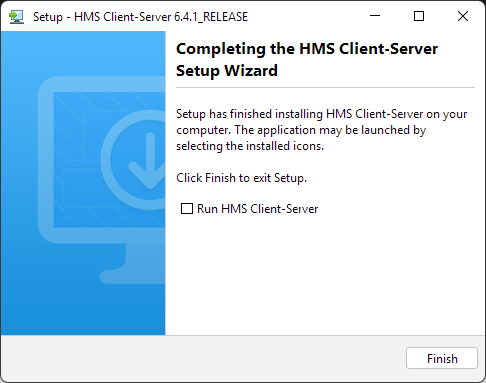

  15. Untick Run HMS Client Server and click Finish.

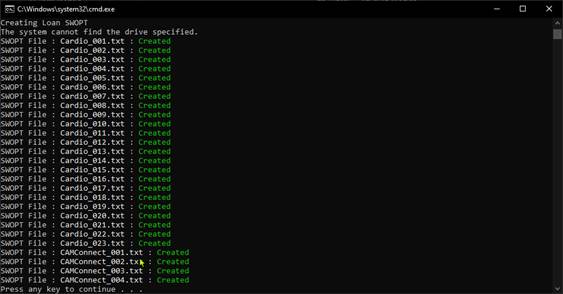

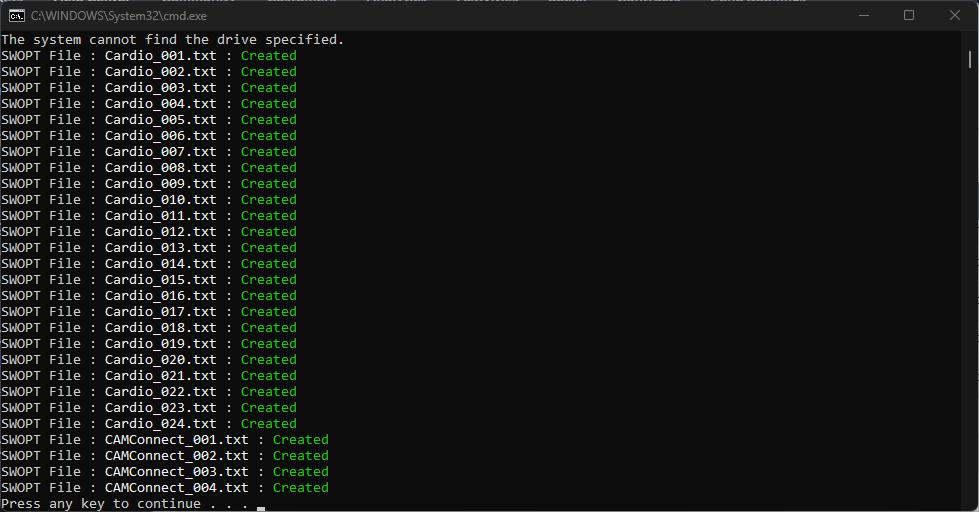

  16. Run as administrator SetPermissions.BAT then press any key once done.

Setting up the device before configuring the software

  1. Insert 2 AA batteries into the device

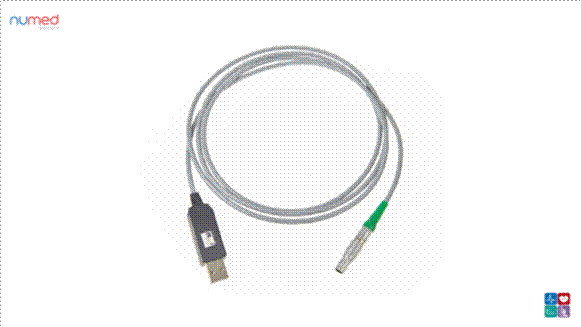

  2. Plug the USB end of the download cable into a spare USB port on your PC or laptop.

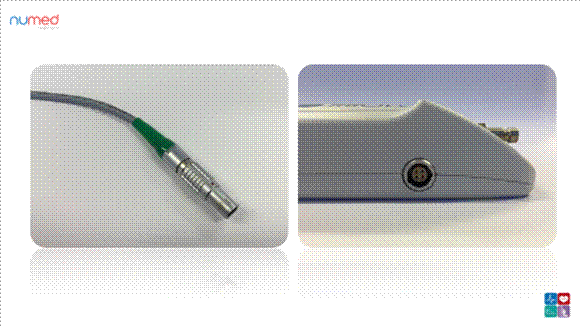

  3. Locate the red dot painted on the silver cylinder end of the download cable.

  4. Locate the red dot painted on the edge of the data port, which can be located on the side of the device.

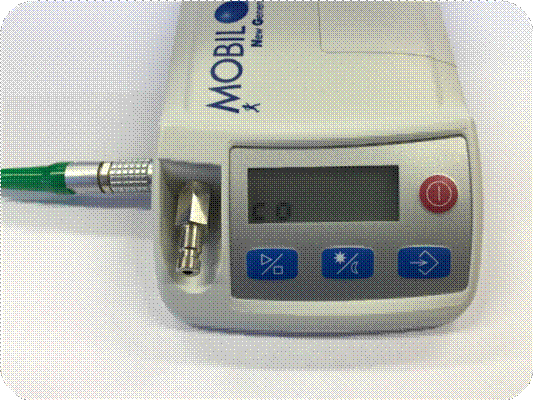

  5. Line both of the red dots up together and push the download cable straight into the device. There should be a slight clicking noise at the point of being fully inserted.
    6. Warning
    1. Do not attempt to force the download cable as this can cause damage to both the cable and the device.
  6. You can now turn your device on by pressing the power button, and then CO will appear on the screen.
  7. The device is now ready to communicate with the software on your PC or laptop.

Configuration of HMS Client Server Part 1

  1. Open the HMS Client Server via the icon on the desktop
    A grey square with white letters Description automatically generated

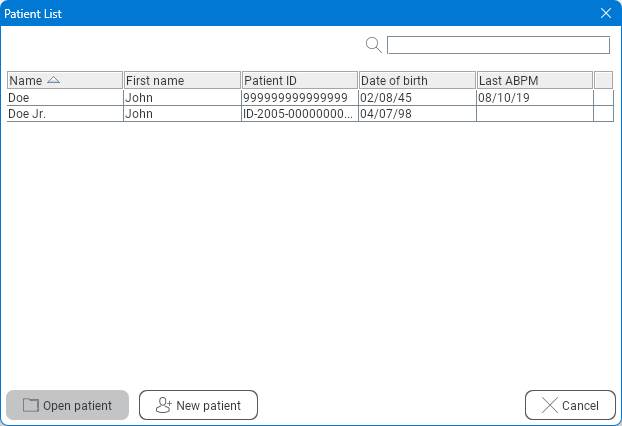

  2. Double-click on John Doe

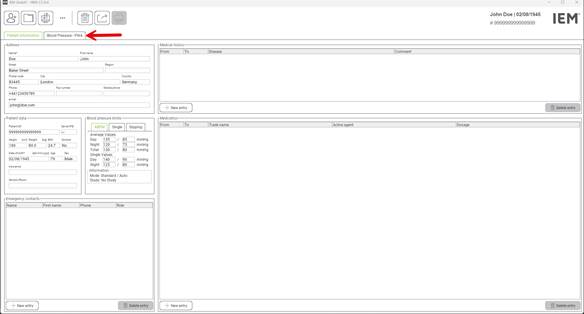

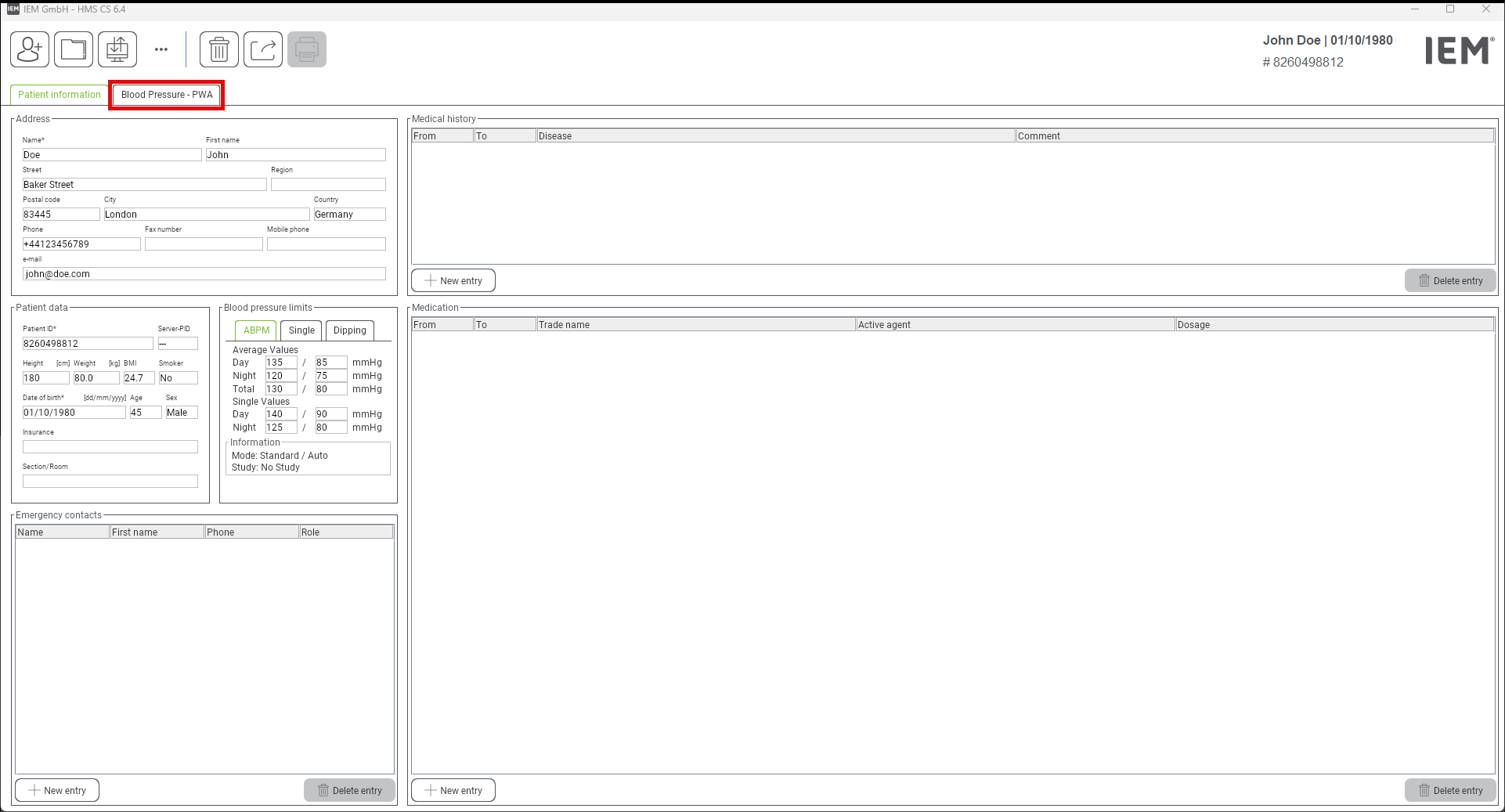

  3. Click on the  Blood Pressure – PWA tab.

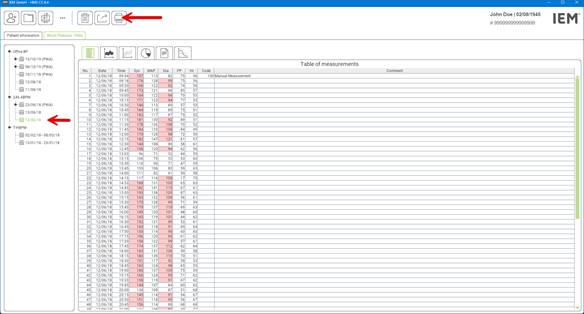

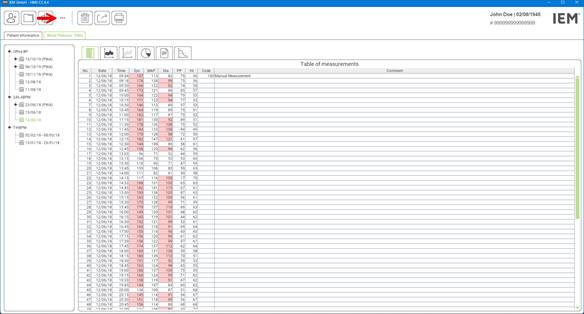

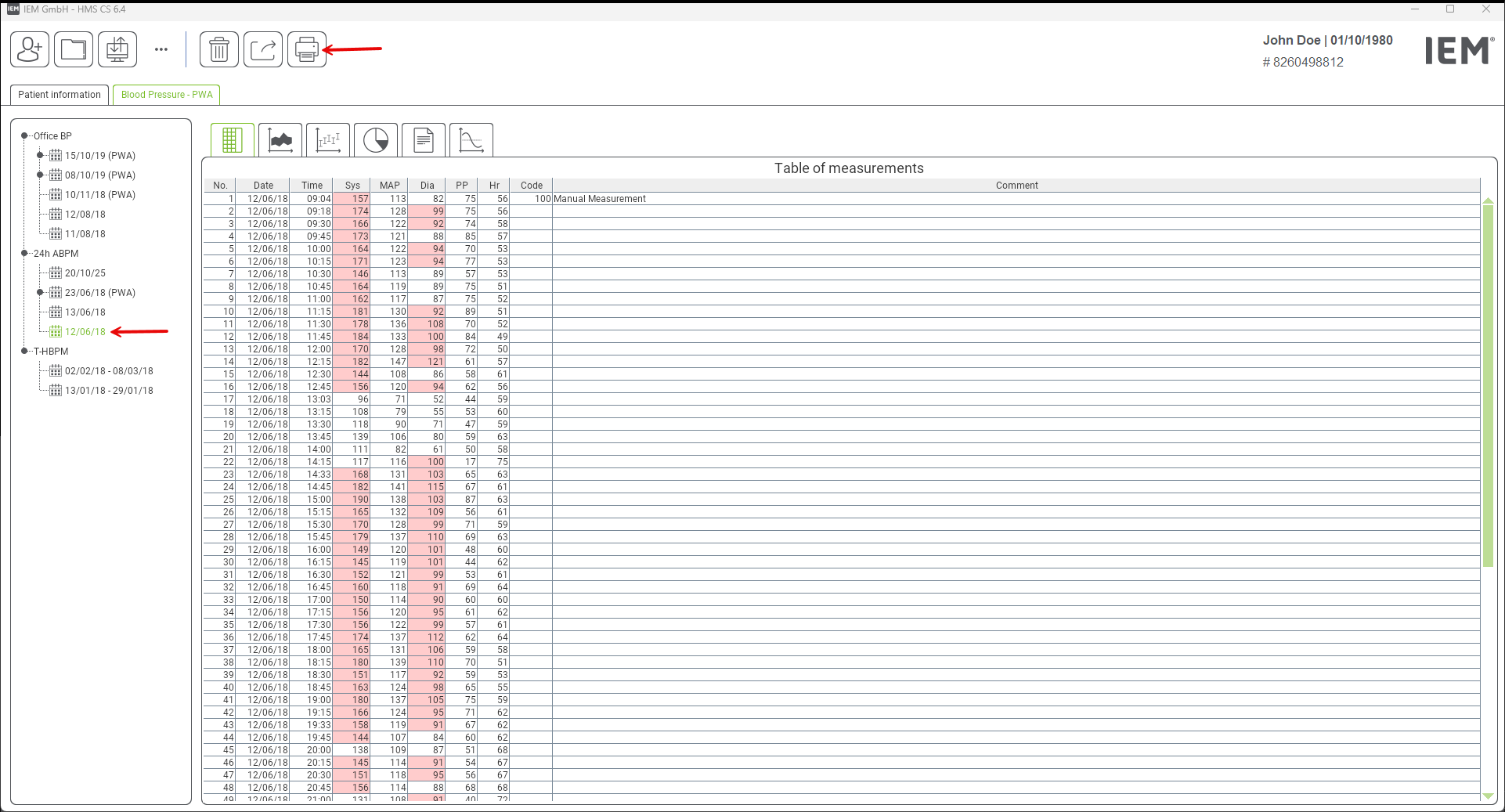

  4. 1st select a 24hr ABPM report on the left-hand side, then 2nd click the Print button.

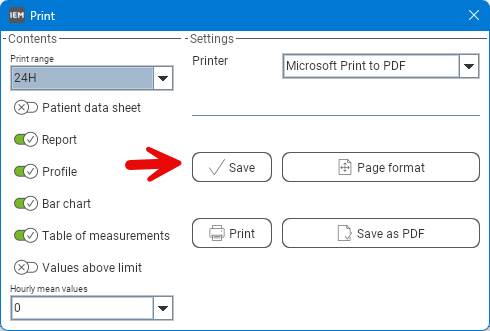

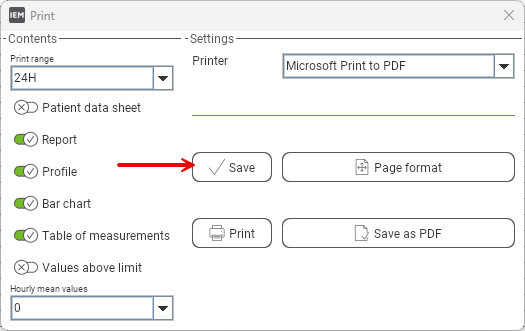

  5. Click Save and then close this box.

  6. Leave HMS open and move to the next section.

Configuration of Intelligent Integration Interface (I3)

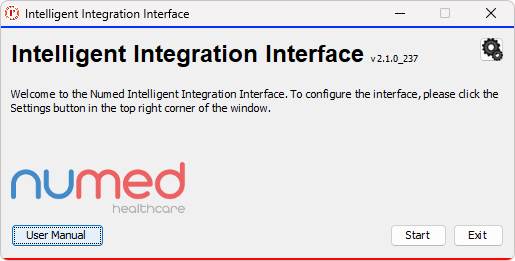

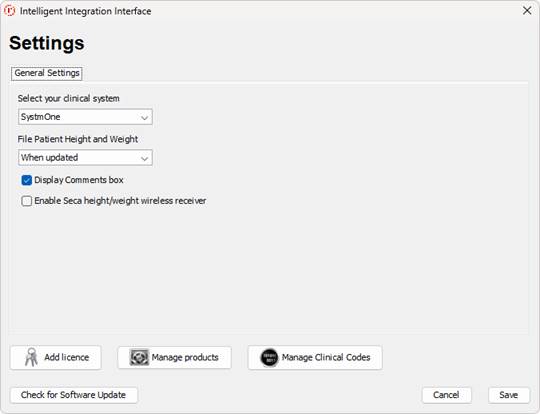

  1. Launch the Intelligent Integration Interface (I3) and click the settings cog in the top right-hand corner

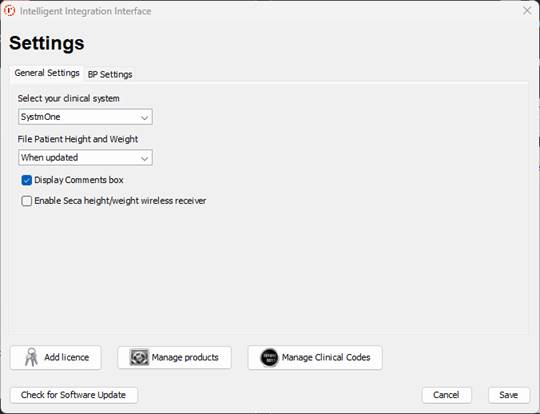

  2. Select your clinical system and configure to match the image.
  3. SystmOne
    EMIS web
    Vision Hosted
    Vision LAN
    Clanwilliam
    SystmOne

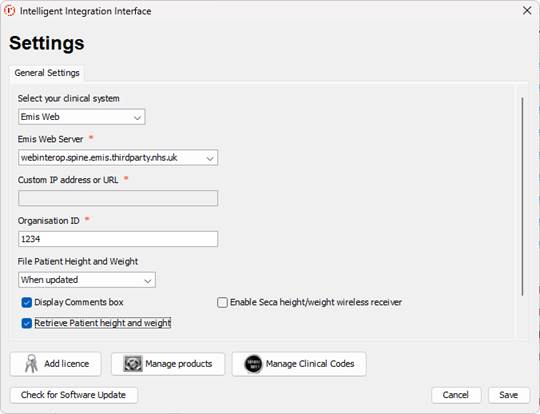

    EMIS web
    Please note that the EMIS Web Server is set for England in this example; please ensure that you select the correct one for the region. The Organisation ID is the EMIS number (may be known as a CDB number).


    Vision Hosted
    We recommend that you use a dedicated Vision account with the Intelligent Integration Interface. If one hasn't already been setup we suggest a username of "NUMED".

    The use CHI number is for Scottish customers only.




    Vision LAN
    We recommend that you use a dedicated Vision account with the Intelligent Integration Interface. If one hasn't already been setup we suggest a username of "NUMED".

    The use CHI number is for Scottish customers only.

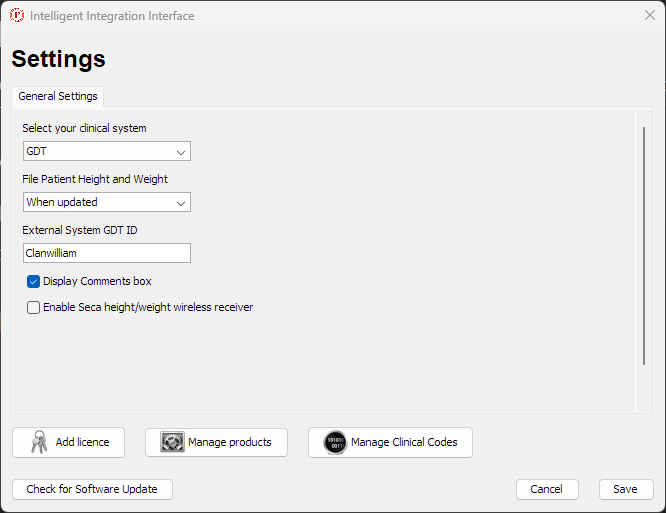

    Clanwilliam
    The Intelligent Integration Interface works with both Socrates (local server only) and HealthOne. Please note that it does not work with Socrates Cloud.

  4.  Click Add license
  5. Enter the supplied license key and click Internet Activation. Click Close once the license is activated - the license key in the image below is a dummy and will not activate.

    1. If you get an error activating the license key, please contact support via the live chat on this page.

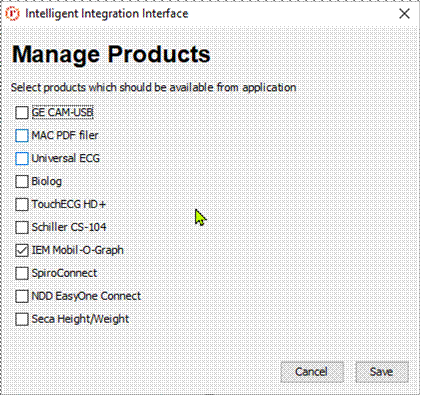

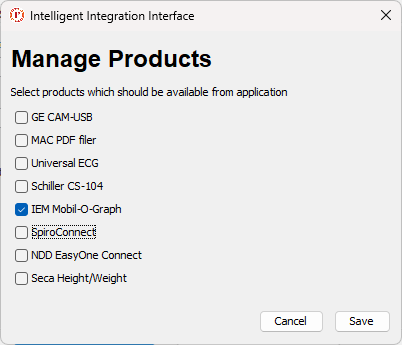

  6. Click on Manage products.
  7. Ensure that your device is ticked. If you have any other devices already enabled, please leave them ticked. Then click Save

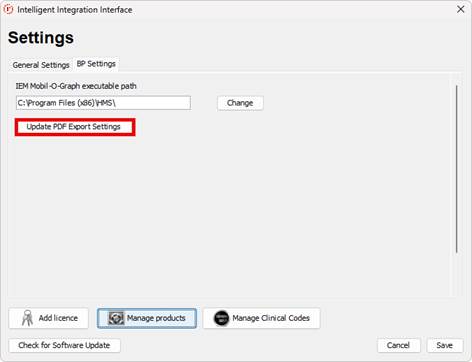

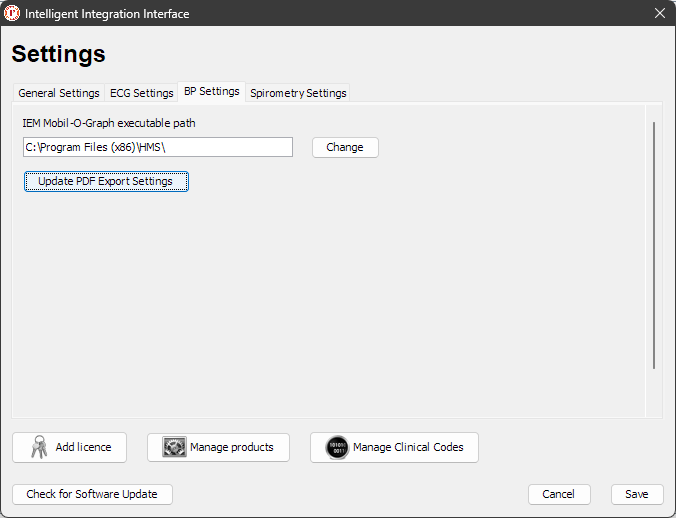

  8. Click on the BP settings tab
  9.  and then click Update PDF Export Settings.

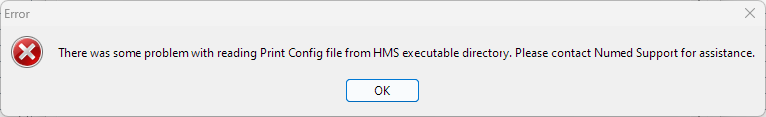

  10. The error box is normal; you can click OK on this.
  11. Click Save and exit the software.

Configuration of HMS Client Server Part 2

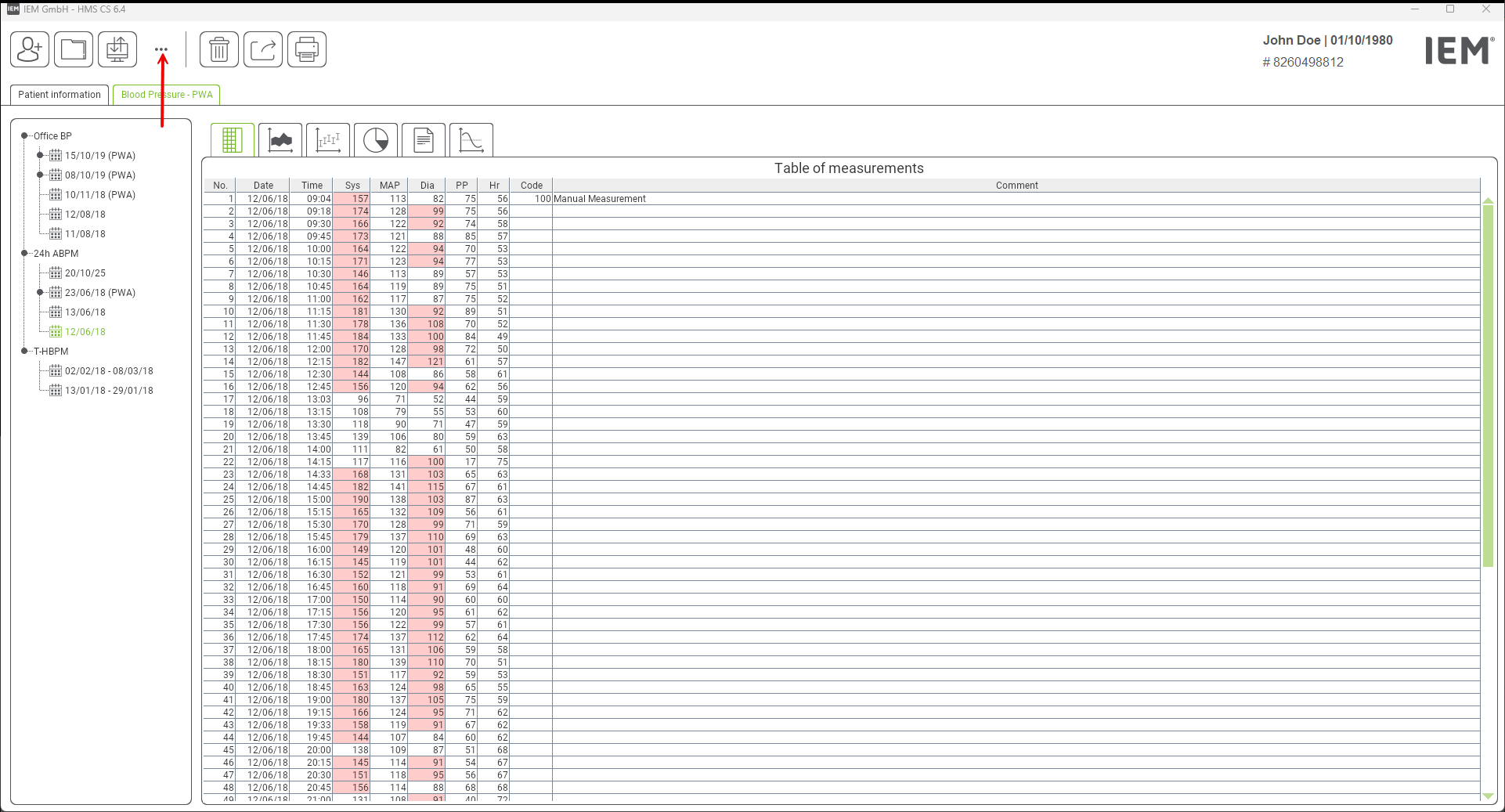

  1. Go back to the HMS Client Server, which will still be open in a separate window. Click the 3 dots at the top of the screen

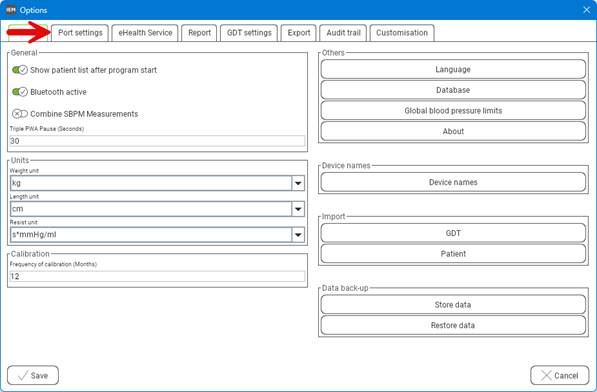

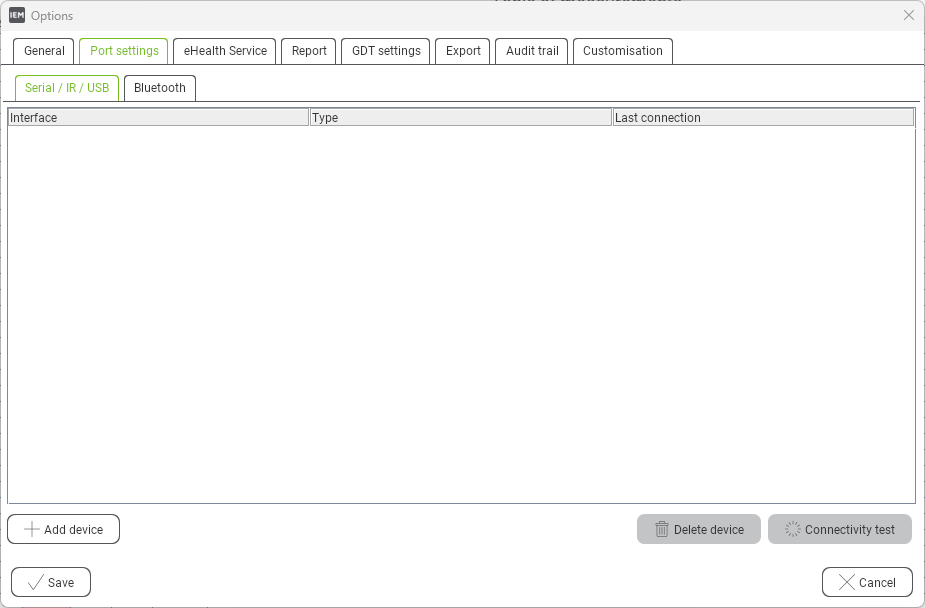

  2. Turn Bluetooth active to off, then click on Port Settings

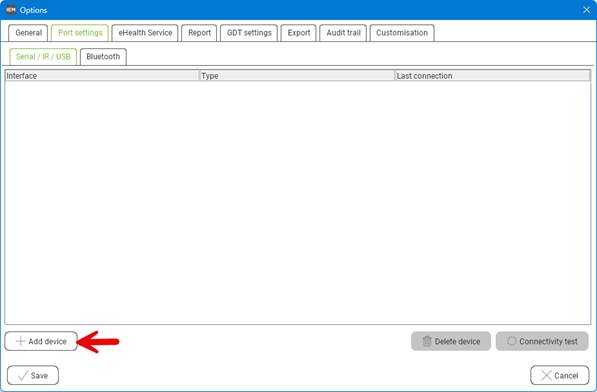

  3. Click Add device

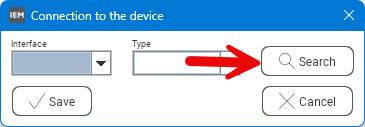

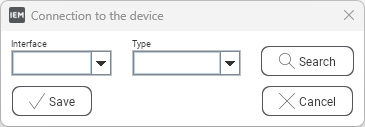

  4. Click Search

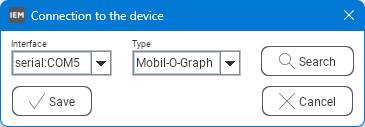

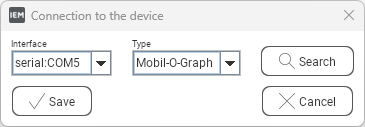

  5. Make sure it has detected your device, and then click Save – please note your Interface may display a different COM number, then click Save

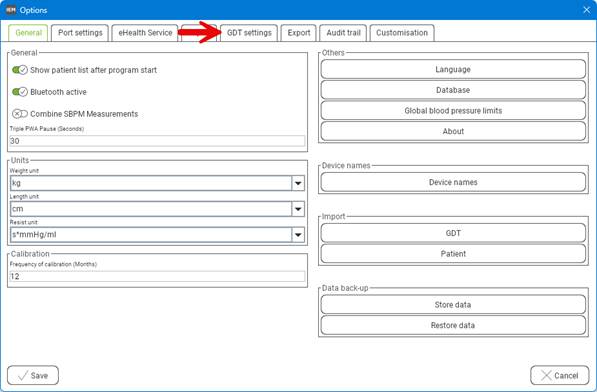

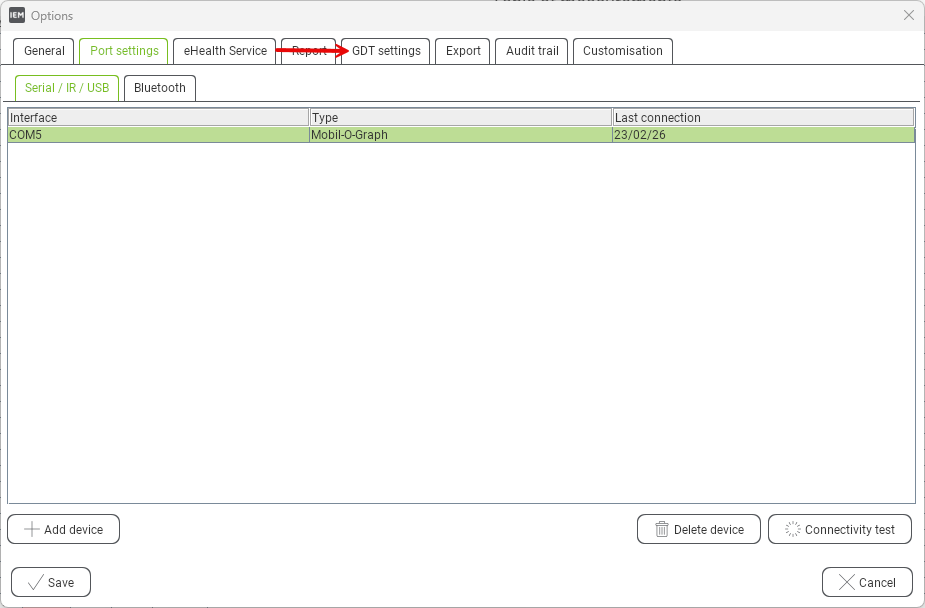

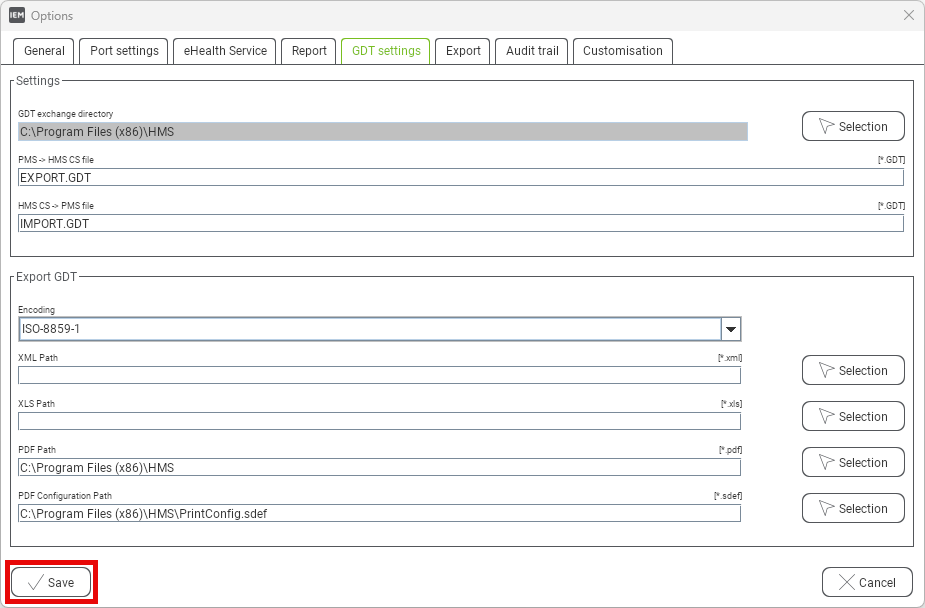

  6. Go to GDT Settings

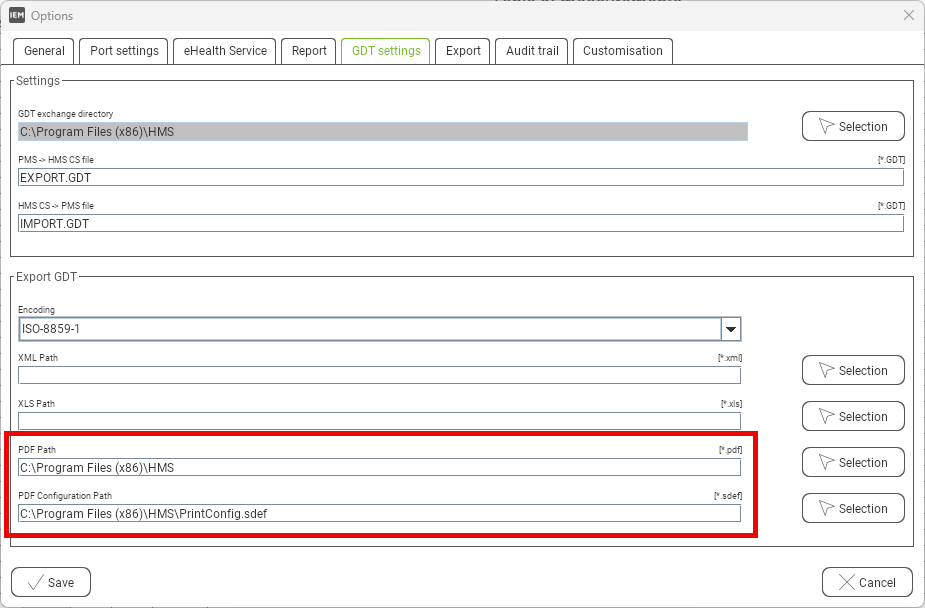

  7. Check and make sure that the settings ringed in red are correct
  8. Click the selection on the PDF Path

  9. Click the drop-down arrow at the top of the box

  10. Scroll up until you locate (C:) - in my example, it shows as Local Disk, but on your computer, it may show differently.
  11. Double-click on Program Files (x86)
  12. Double-click on HMS
  13. Click Save
  14. Click Selection on PDF Configuration Path

  15. Double-click on HMS
  16. Select PrintConfig.sdef and then click Save. If PrintConfig.sdef is missing, repeat the steps in Configuration of HMS Client Server Part 1 and steps 8 and 9 of Configuration of Intelligent Integration Interface (I3). If PrintConfig.sdef still doesn't appear, please contact Numed support using the chat button on this page.
  17. Click Save.

    1. The port and GDT settings will need to be done for each Windows user
  18. Exit the HMS Client Server software

Your software is now fully configured and ready for use. If at any point you experience any issues, please use the live chat option on this page.

Info
For TPP SystmOne customers, please ensure that a user with high-level access runs the software for the first time to approve the connection to SystmOne.


Info
For the EMIS web, please ensure that the Intelligent Integration Interface Partner API has been fully activated in the EMAS manager before the first use. Please see How to configure EMAS Manager for I3 for further information on this.
