My ECG report shows just numbers only

My ECG report shows just numbers only

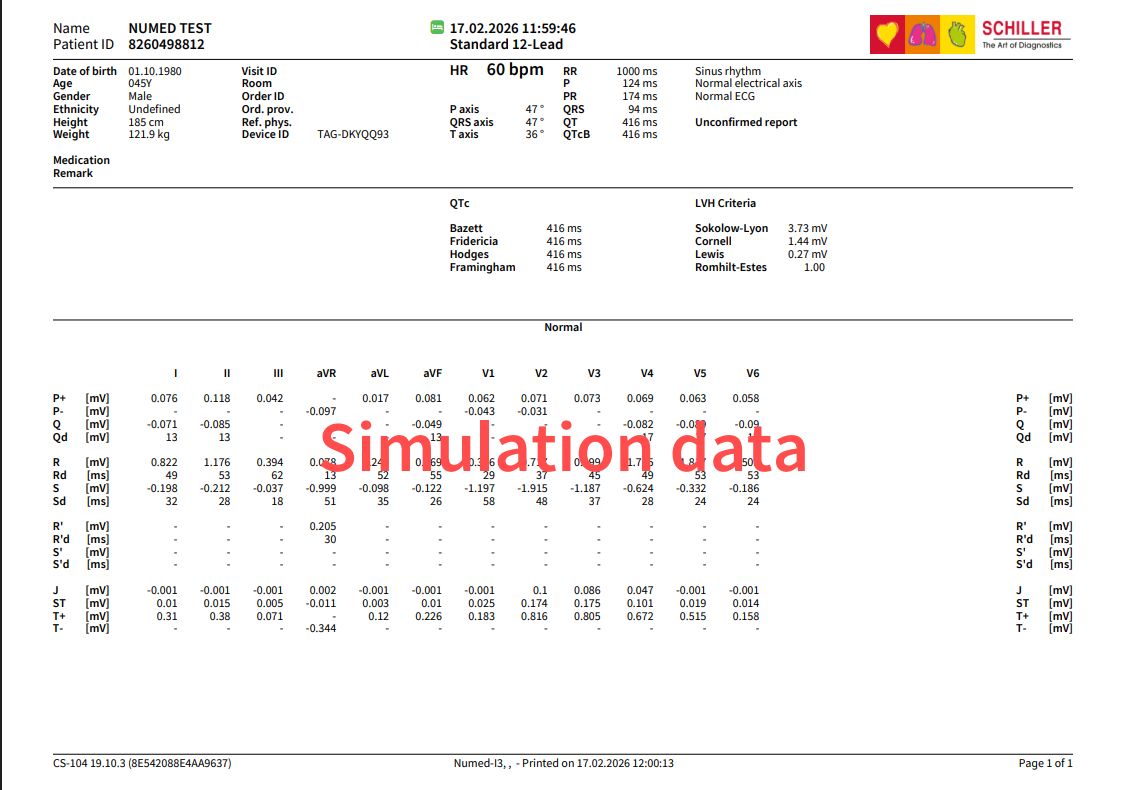

If your ECG shows numbers or measurements, for example:

This indicates that the configuration of your software needs adjusting. Follow these steps to adjust the settings.
  1. Open CS-104 from your desktop

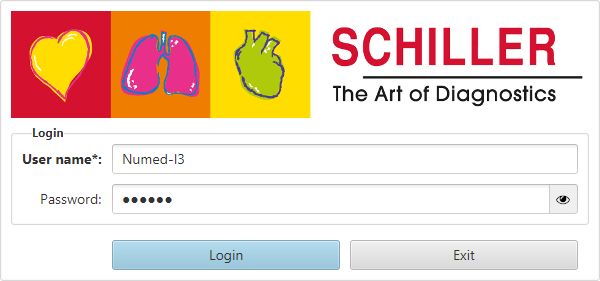

  2. Enter your username and password and click.
    1. For most installations, the username will be Numed-I3, and the password will be Numed1

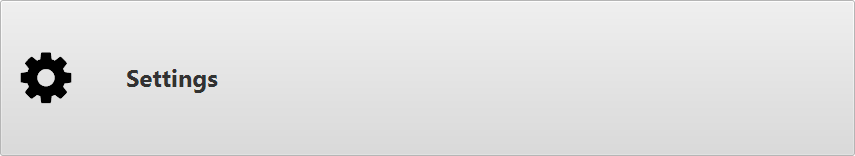

  3. Click on

  4. Scroll through the list of options on the left-hand side until you reach Reports.

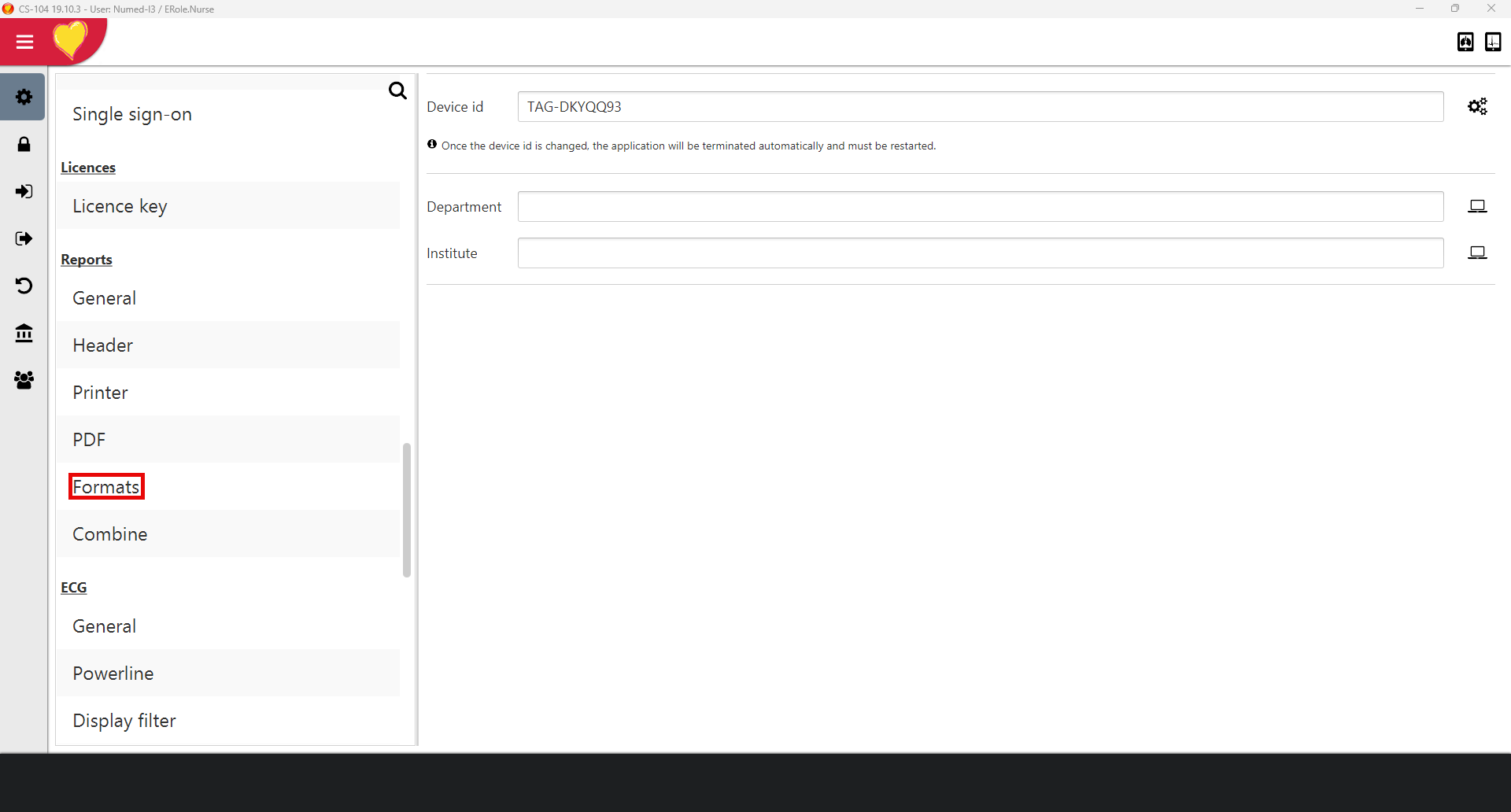

  5. Select Formats

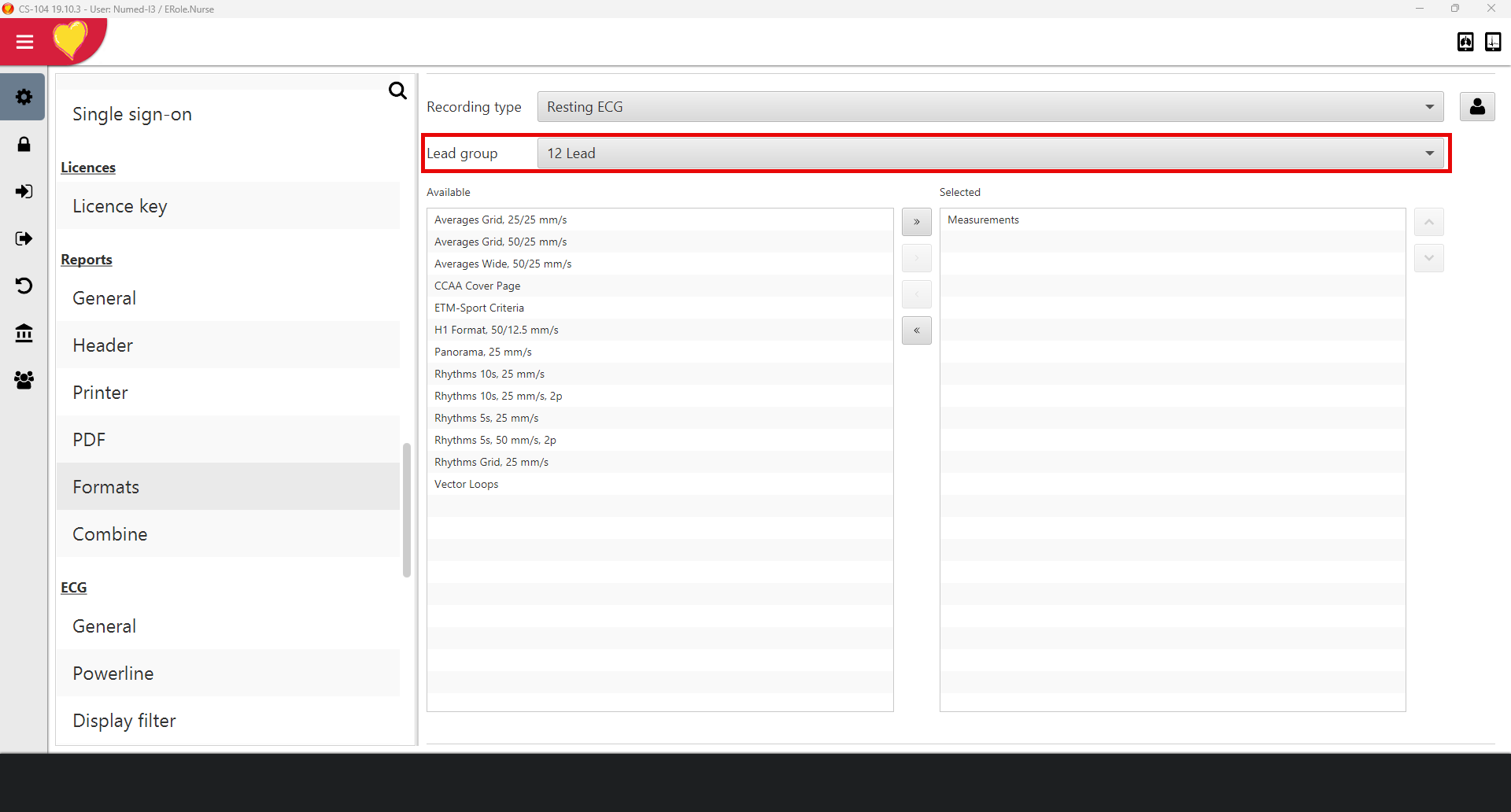

  6. Change the Lead group to 12 Lead.

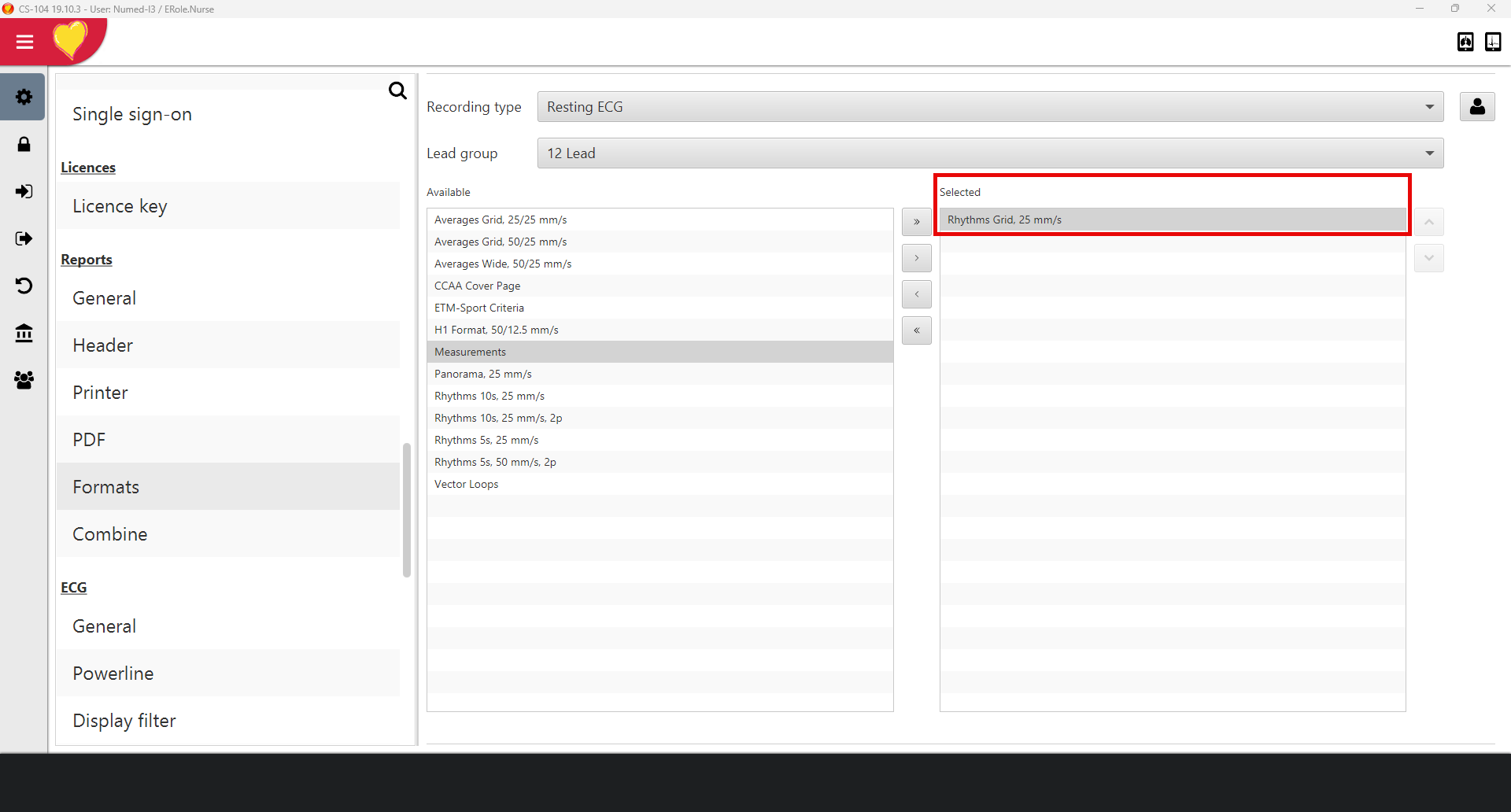

  7. Using  and  make sure that Rhythms Grid 25mm/s is in the Selected column

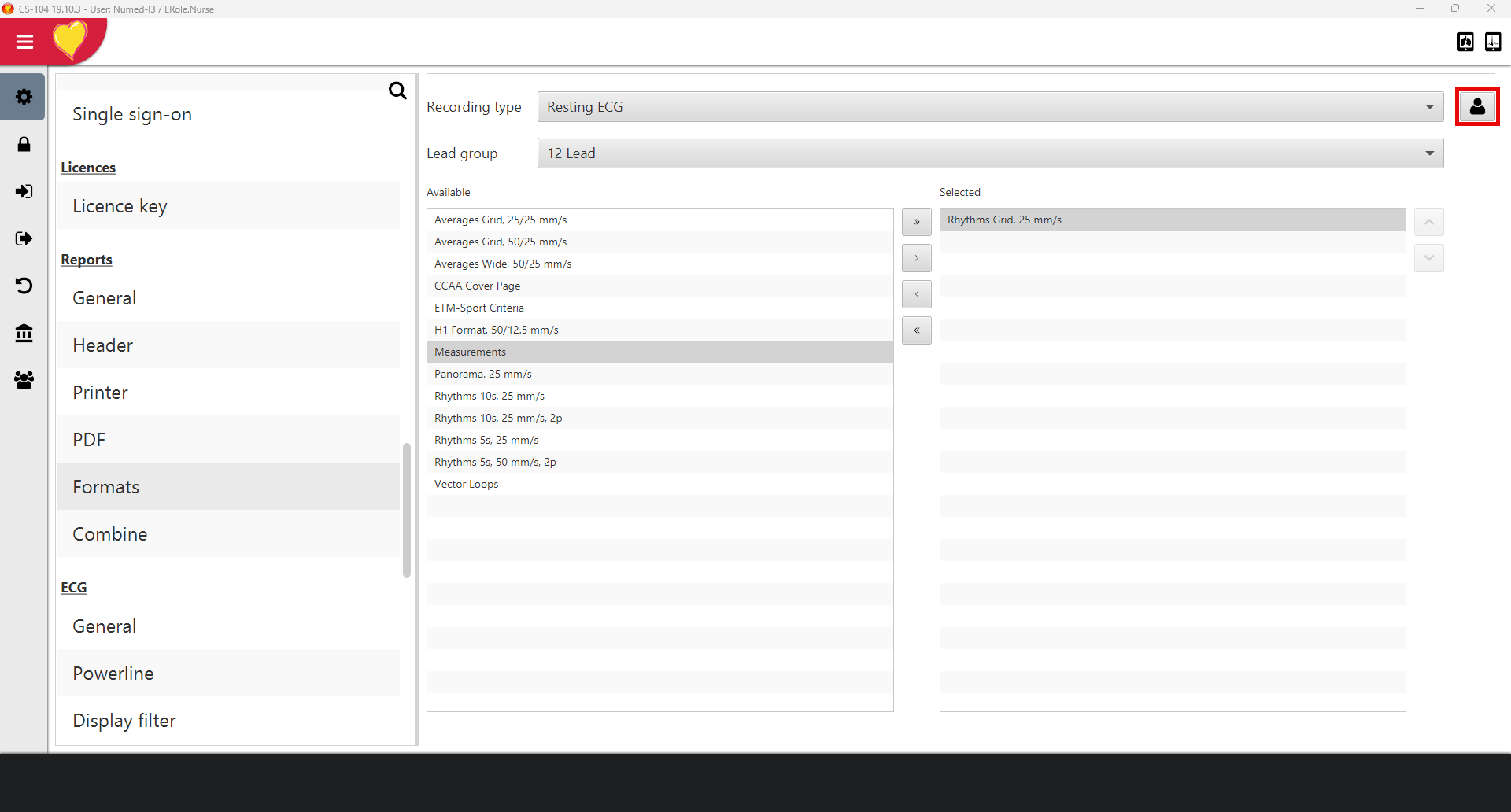

  8. Once you've made the change, click.
  9. Close the software down. When you next take an ECG, the report will show the ECG traces.
