Small Squares on ECG report

Small Squares on ECG report

With the Universal ECG machine, you can turn the smaller squares that appear in the PDF of the ECG report on and off. This guide shows how to do this.

Info
This setting is something that each user would need to change, as their settings are linked to the user logged into Windows.

  1. Open CardioView
  2. Click on Print Settings

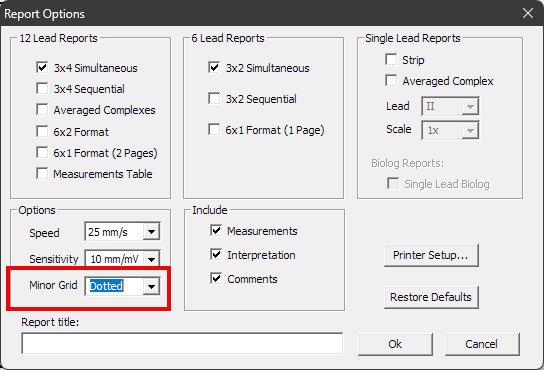

  3. The setting that needs looking at is the Minor Grid in the bottom left hand corner. We would recommend using Dotted, but Lines can be chosen if preferred.
  4. Click OK and close the CardioView window before attempting to take an ECG.
