Smart Universal ECG Machine and CardioView Settings Tech Tip

Smart Universal ECG Machine and CardioView Settings Tech Tip

The settings within CardioView are set on a Windows user basis. When we install the software, we attempt to copy the settings to all the users on the PC, however, occasionally this doesn’t work due to local IT restrictions. Therefore, in those situations, each user must configure CardioView before using the Smart Universal ECG for the first time.

This guide can also be used by customers with a Universal USB ECG machine.

1.      Open CardioView from the desktop
A heart with a pulse line AI-generated content may be incorrect.
2.      Click on ECG SETTINGS
A screenshot of a computer screen AI-generated content may be incorrect.
3.      Set the Measurement System to Metric
A screenshot of a computer program AI-generated content may be incorrect.

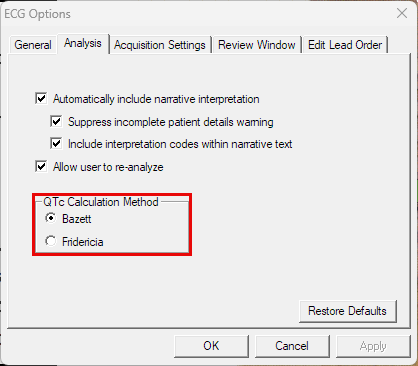

4.      Some surgeries prefer to change the QTc Calculation to Fridericia. This is a clinical decision and we would recommend speaking with your GP or consultant if you are unsure. This will affect how the software measures QTc on the reports. Bazett is the default but older calculation, some clinicians prefer Fridericia which is the newer method.
A screenshot of a computer program AI-generated content may be incorrect.

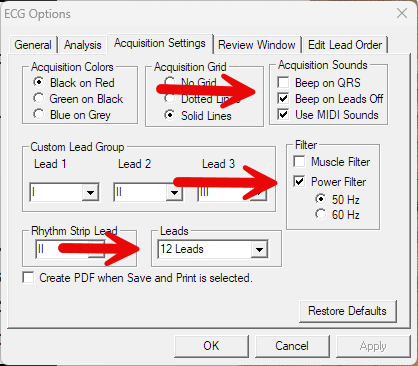

5.      Check the highlighted part, the power filter must be set to 50 Hz for UK and European use, then click OK
A screenshot of a computer AI-generated content may be incorrect.
6.      Click PRINT SETTINGS
A screenshot of a computer screen AI-generated content may be incorrect.

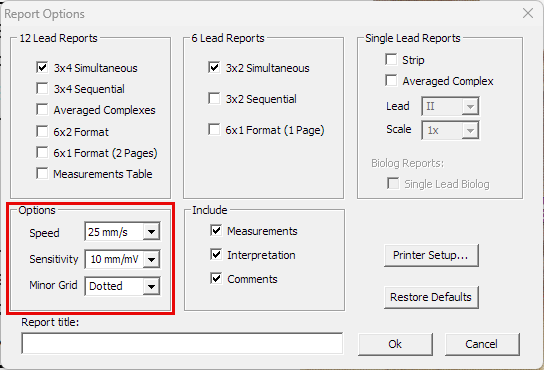

7.      Typically you will only need to change the highlighted part, click OK once done
A screenshot of a computer AI-generated content may be incorrect.

The software is now set up and ready for use. If you have any issues, please contact Numed Technical Support either by live chat https://www.numed.co.uk/support or by calling 0114 399 0010
