This guide will show you how to install and configure CardioView for use with the Universal Smart ECG System or the Universal USB ECG Machines.

If you are integrating this into your clinical system, please go to <url for integration guide>

Alert
All steps in this guide must be followed for your device to work correctly

Installation of CardioView

  1. Download and extract https://downloads.numed.co.uk/software/qrs/Cardioview.zip

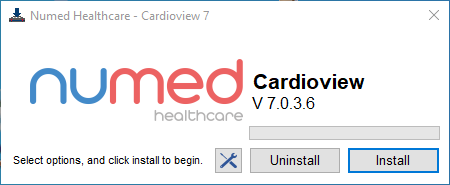

  2. Run as administrator setup.exe
  3. If any dependencies are required, the installer for those will run first

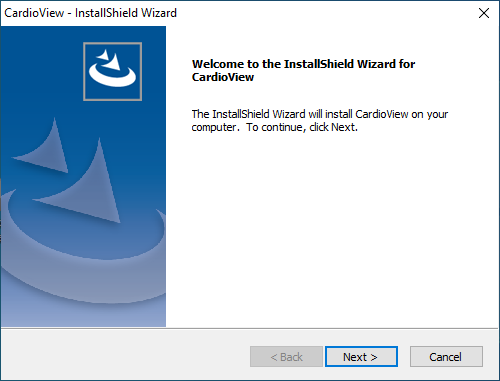

  4. Click Next

  5. Click Next

  6. Click Install

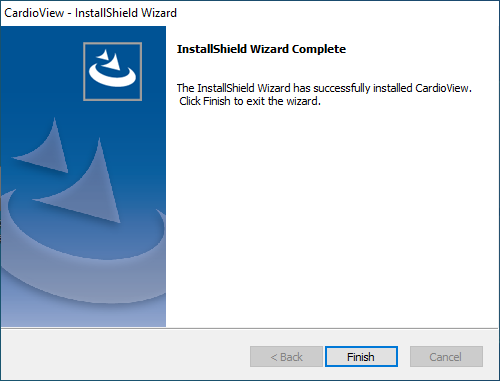

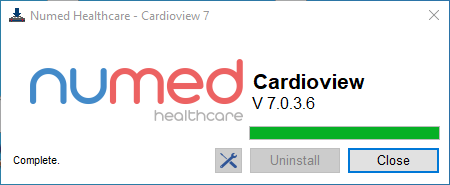

  7. Click Finish

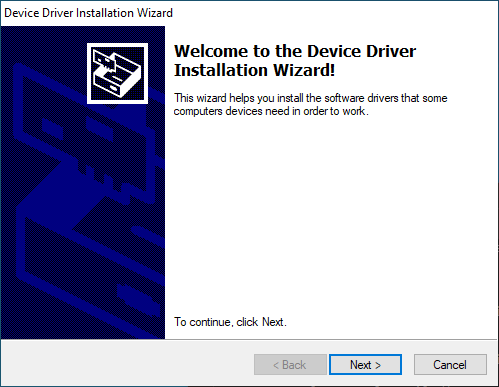

  8. It will then automatically install the driver and the required PDF printer.

Configuration of CardioView

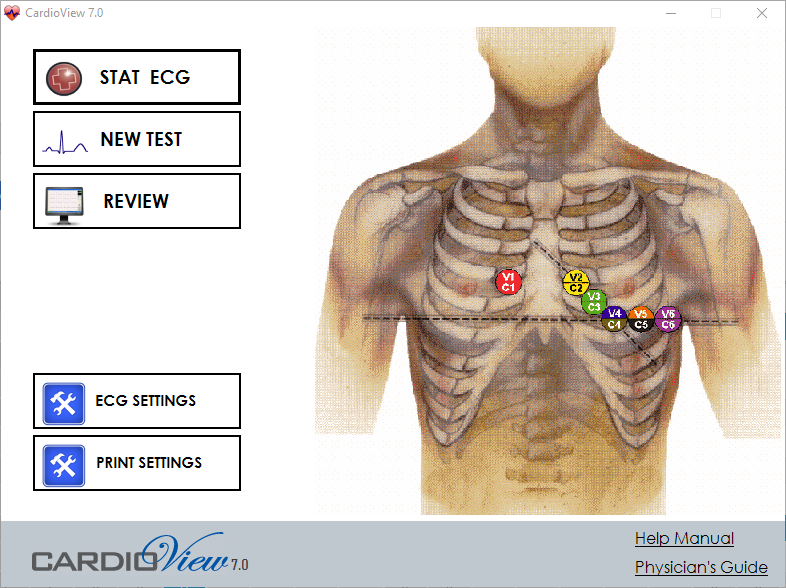

  1. Open CardioView from the desktop
  2. Select ECG SETTINGS

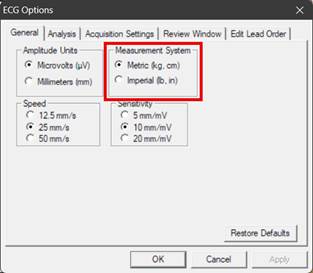

  3. Set the General tab as below

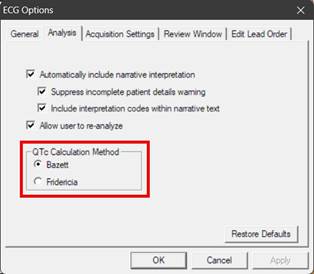

  4. On the Analysis tab, some surgeries prefer to change the QTc Calculation to Fridericia. This is a clinical decision, and we would recommend speaking with your GP or consultant if you are unsure. This will affect how the software measures QTc on the reports. Bazett is the default but older calculation; some clinicians prefer Fridericia, which is a newer method.

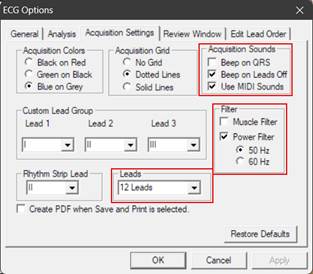

  5. On the Acquisition Settings, for the software to work correctly, ensure everything is set as the image, especially Use MIDI Sounds and the 50 Hz Power Filter.
  6. Click OK
  7. Click PRINT SETTINGS

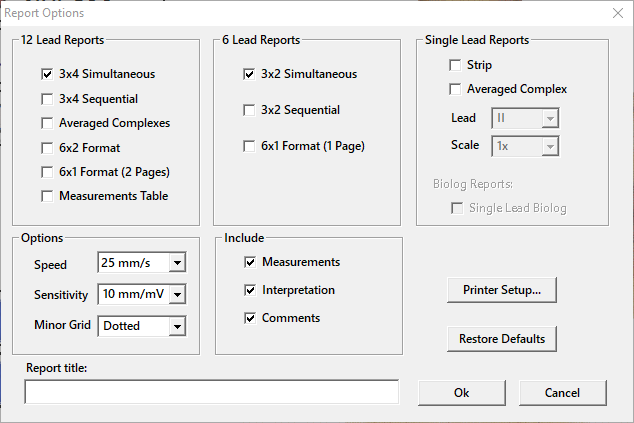

  8. Set as below, typically only Minor Grid (bottom left-hand corner) needs adjusting

  9. Close CardioView
Your software is now fully configured and ready for use. If at any point you experience any issues, please use the live chat option on this page.
