Sunvou Easy User Guide

Sunvou Easy User Guide

Follow the instructions below to set up and use your Sunvou HA1101 FeNo Monitor. There is a PDF file containing this information at the bottom of the screen.

Setting Up Your Sunvou HA1101 FeNO Monitor
  1. Connect the monitor to the supplied power cable and adapter – please note it is recommended that the monitor is charged for at least 2 hours before first use.

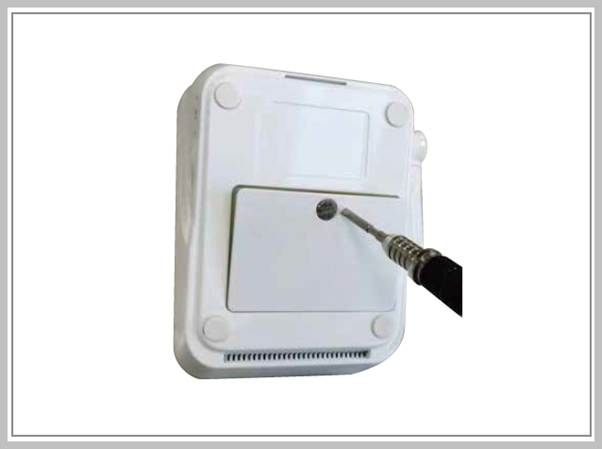

  2. Turn the monitor upside down, unscrew the sensor compartment cover, and set it aside.
    A screwdriver on a white box AI-generated content may be incorrect.

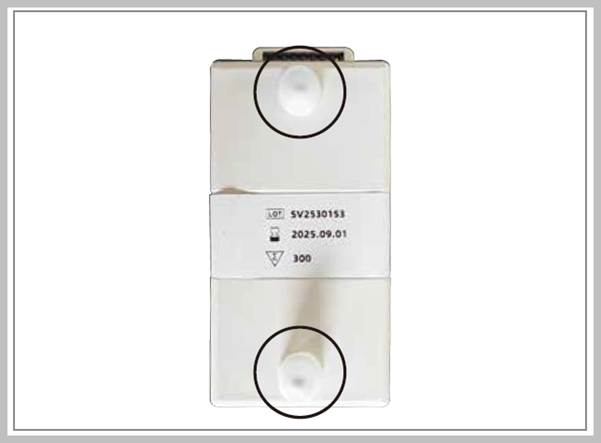

  3. Unpack the new sensor and remove the two sealing caps.
    A white rectangular object with black circles AI-generated content may be incorrect.

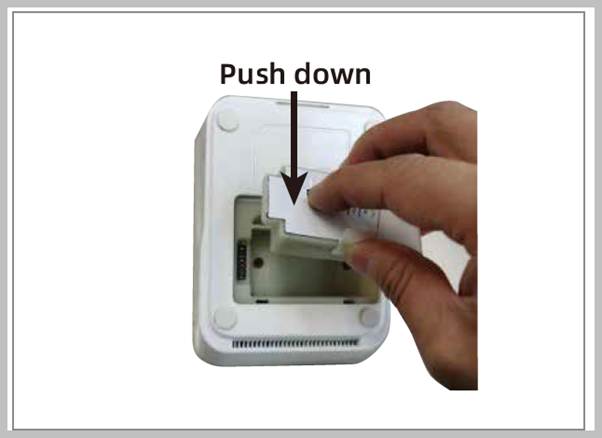

  4. Fit the new sensor, ensuring that it is in position correctly and push down to ensure a good fit.
    A hand pushing a button on a switch AI-generated content may be incorrect.

  5. Screw the sensor compartment cover back on.
    A screwdriver on a white box AI-generated content may be incorrect.

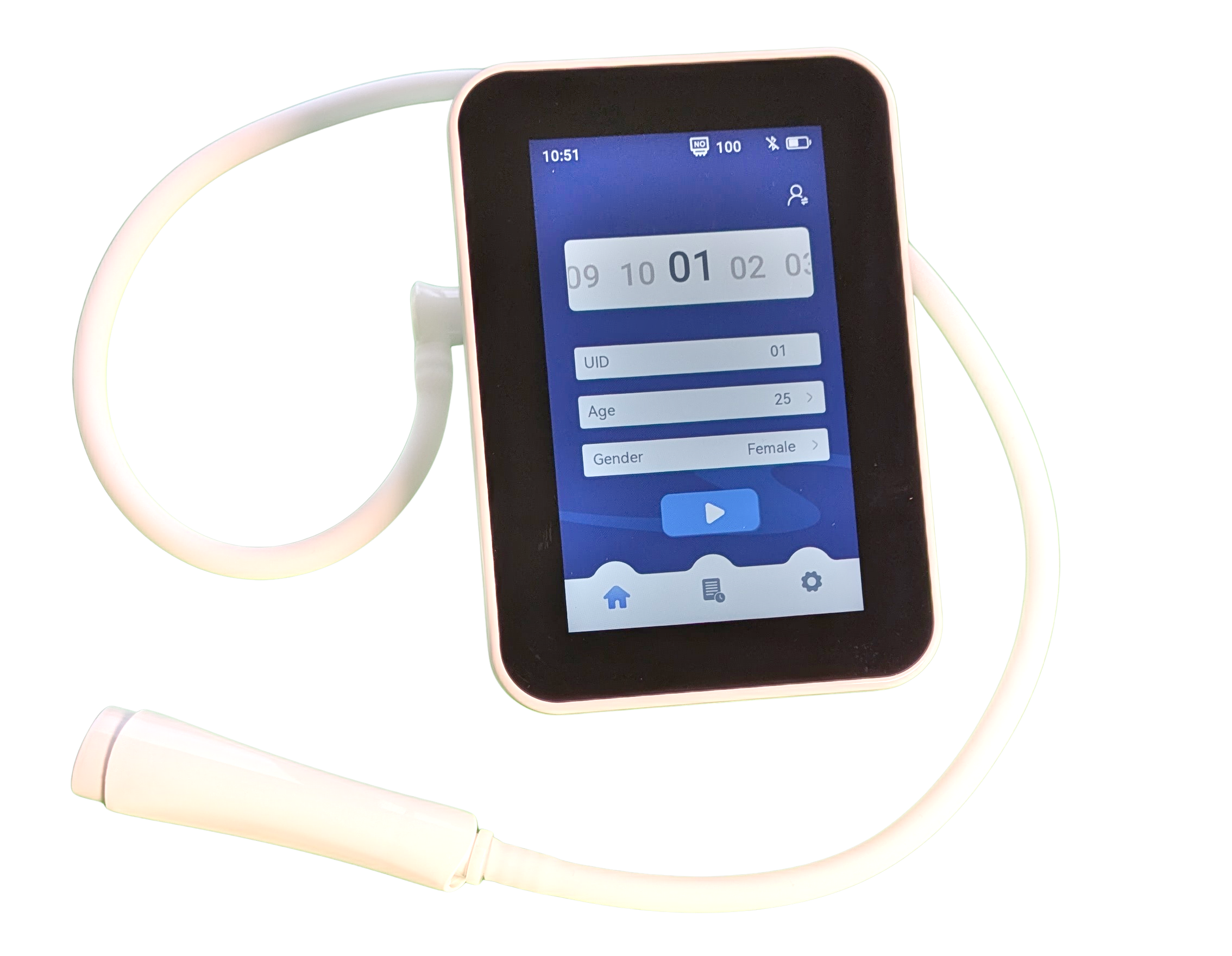

  6. Connect the breathing tube to the port on the side of the monitor, then connect the handpiece to the breathing tube, ensuring that there is a good connection at both ends. Both simply push into position.

Fitting or Replacing the Sensor on Your Sunvou HA1101 FeNO Monitor
  1. Turn the monitor upside down, unscrew the sensor compartment cover, and set it aside.
    A screwdriver on a white box AI-generated content may be incorrect.

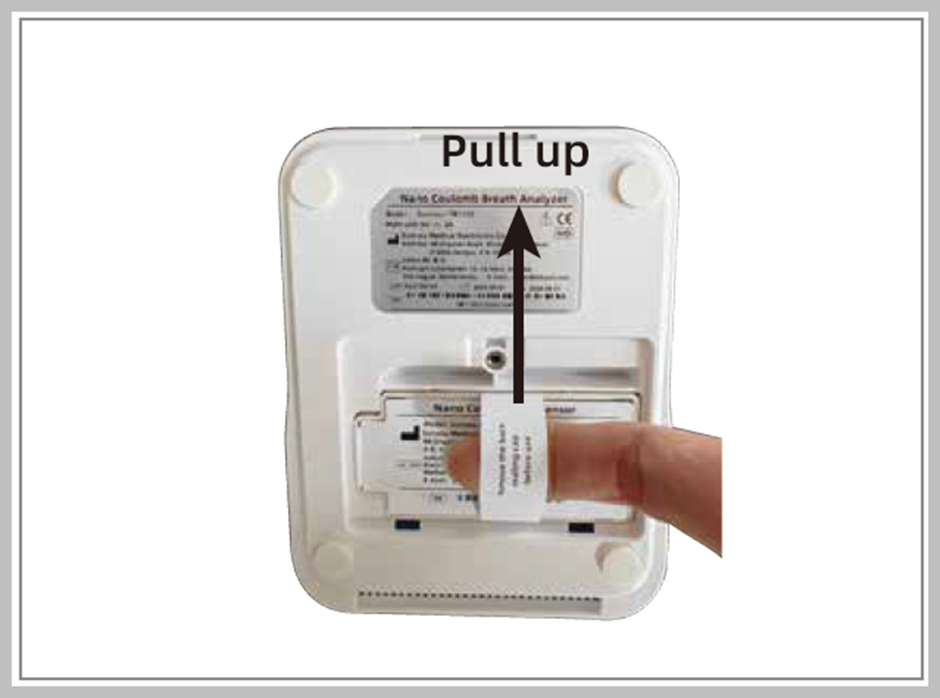

  2. To remove an old sensor, pull straight up using the handle on the back of the sensor.
  3. Unpack the new sensor and remove the two sealing caps.
    A white rectangular object with black circles AI-generated content may be incorrect.

  4. Fit the new sensor, ensuring that it is in position correctly and push down to ensure a good fit.
    A hand pushing a button on a switch AI-generated content may be incorrect.

  5. Screw the sensor compartment cover back on.
    A screwdriver on a white box AI-generated content may be incorrect.

Using your Sunvou HA1101 FeNO Monitor

  1. Turn your FeNO monitor on using the power button on the side

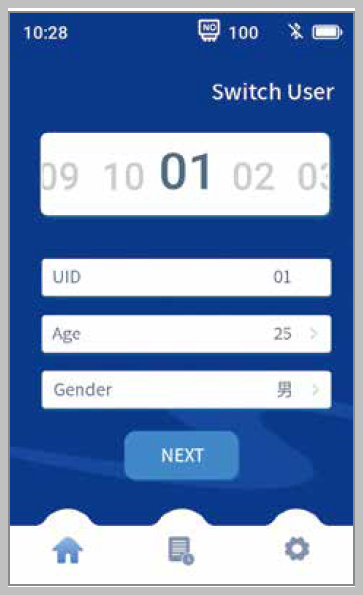

  2. Select the User ID (UID) by swiping along the numbers at the top. Enter the Age and Gender of the patient before tapping Next.
    A screenshot of a login formAI-generated content may be incorrect.
  3. The unit will automatically perform an ambient Nitric Oxide (NO) test while you fit the mouthpiece.

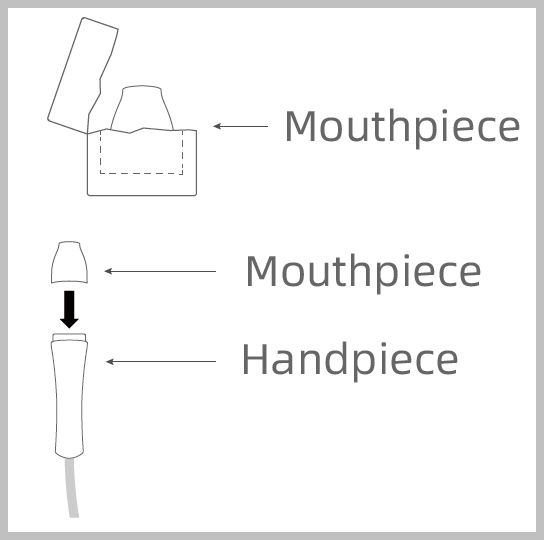

  4. Remove the mouthpiece from the wrapper and attach it to the handpiece.
    A diagram of a mouthpieceAI-generated content may be incorrect.

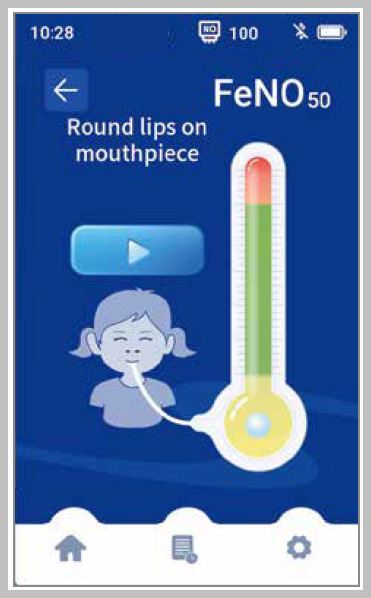

  5. Ask the patient to breathe in and then put their lips around the mouthpiece, ensuring they make a good seal. Then press start
    A blue play buttonAI-generated content may be incorrect. .
    A thermometer with a tube attached to itAI-generated content may be incorrect.
  6. The patient needs to exhale, ensuring that the white ball is kept within the green zone on the device until the breath sample is complete.
    A thermometer with a child in her mouthAI-generated content may be incorrect.

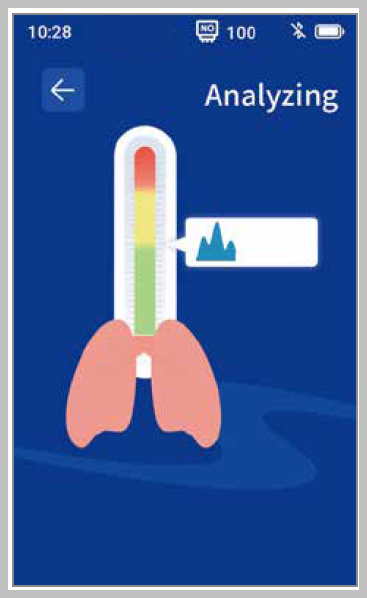

  7. The analysis takes approximately 20 seconds.
    A thermometer showing the temperature of the lungsAI-generated content may be incorrect.

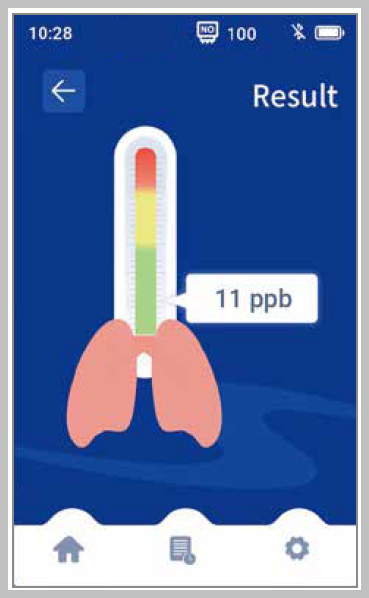

  8. The FeNO result in parts per billion (ppb) will then be displayed on the screen.
    A thermometer showing the temperature of the lungsAI-generated content may be incorrect.
  9. You can either press the back arrow to repeat the test or the home button to start a new test.
  10. The number at the top of the screen indicates how many tests are remaining with the installed sensor
    A screenshot of a login formAI-generated content may be incorrect.

Cleaning Instructions

Each test is performed using a disposable bacterial and viral filtered mouthpiece, which is 99.99% efficient; there is minimal risk of cross-infection. A replacement handpiece is supplied with every 100 mouthpieces.

For routine cleaning - To clean all parts of the Sunvou FeNO monitor, use a damp cloth to gently wipe the monitor down.

For disinfecting - Use non-alcohol-based disinfectants. It is recommended to use disinfectant wipes (with quaternary ammonium content (w/v) 0.18% ~ 0.22%) to disinfect the instrument surface (including the handpiece).

Changing the date and time

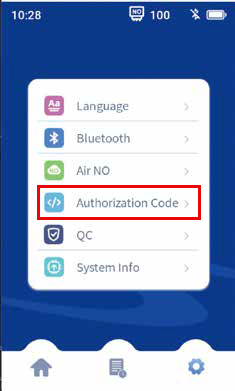

If you need to change the date and time on your Sunvou FeNO monitor, go to the settings cog and click on ‘Authorisation Code’. The code to change the date and time is 080228.
A screenshot of a phoneAI-generated content may be incorrect.

List of error codes

Code
Cause
Solution
E01
Device self-checking failed, please restart
Restart the device
E02
NO sensor not connected
Reinstall the sensor correctly.
E03
NO tests depleted
The number of remaining measurements is displayed at the top of the screen. If all measurements are used up, please replace the sensor.
E05
NO sensor expired
Please replace with a new sensor
E10
Power low, please charge
Connect the power adapter
E11
Try again
The sampling flow rate is too low. Try again
E12
Try again
Try again
E13
Try again
Try again
Low battery
Low charge
Power on after 30-60 minutes of charging
None
Abnormal shutdown or failure to turn on
Charge it for 30-60 minutes and then turn it on
