This guide will show you how to use your Universal Smart ECG System and integrate it into your clinical system. This guide can also be used for the older Universal USB devices.

  1. Connect the Universal Smart ECG System to your PC or Laptop.
    A blue cable with many wiresAI-generated content may be incorrect.
  1. If needed, use a 5m ATEN extension cable to reach between the PC and the examination couch.
  1. Open the patient's record in the clinical system
  1. Vision customers must ensure that the Numed Enterprise Link software is running on the remote desktop.
    A blue and white circle with a letter n and an arrowAI-generated content may be incorrect.
  1. Double-click the I3 icon, which is usually found on your taskbar or desktop.
    A screen shot of a logoAI-generated content may be incorrect.

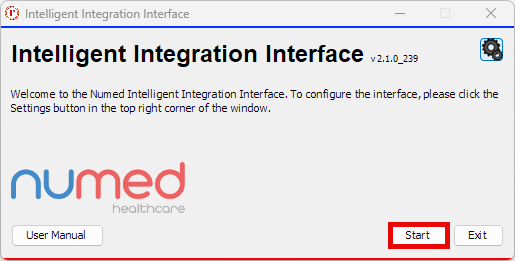

  2. Click the Start button
    A screenshot of a computerAI-generated content may be incorrect.

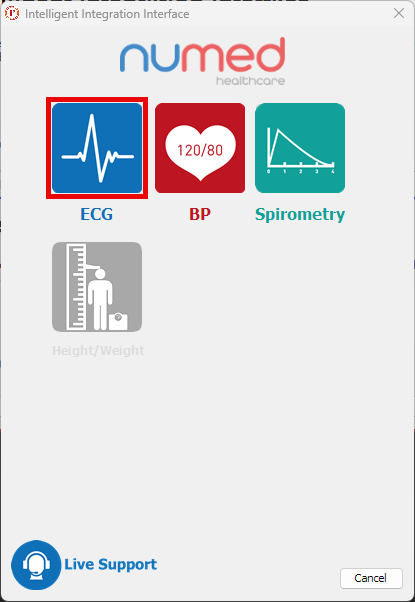

  3. Select ECG from the product selection screen
  1. If you have more than one ECG system, you may need to select Universal ECG
  1. Confirm the patient's details are correct and then click Yes

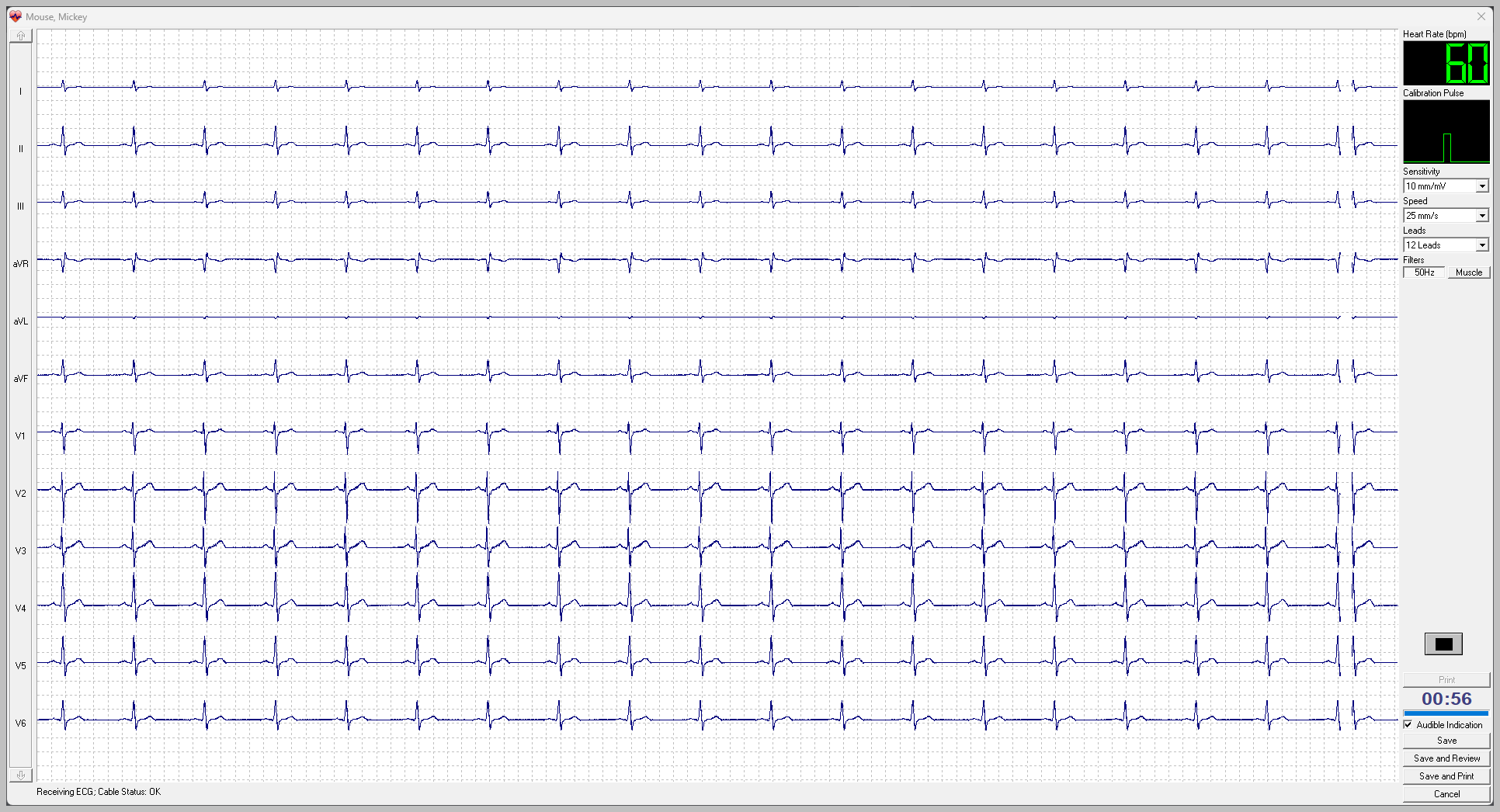

  2. The patient's ECG will then appear on screen
  3. Once you are happy with the ECG trace, click Save to send the ECG report to I3
  4. Add any comments and then click Send
    A screenshot of a computerAI-generated content may be incorrect.
  5. Click OK to complete the process
    A screenshot of a computerAI-generated content may be incorrect.
  6. The ECG will now be filed into the patient record in the clinical system.
If you experience any issues using the system, please get in touch with us via the Chat button on this page.
