Using Your Schiller MS-12 ECG machine without Integration

Using Your Schiller MS-12 ECG machine without Integration

If your clinical system is down or you are not connected to the internet, follow the steps in the guide below to take, print, and export your ECG as a PDF.

Alert
Before starting, please ensure that your ECG machine is plugged into the PC or laptop.

Taking your ECG

  1. Launch CS-104 from your desktop

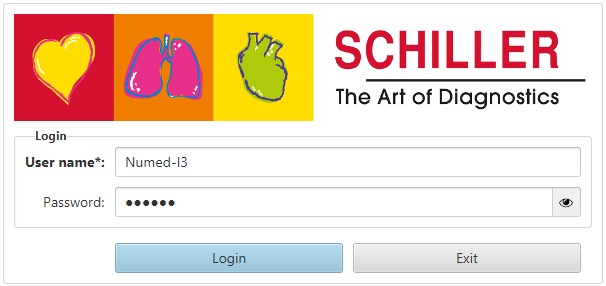

  2. Enter the supplied username and password
    1. Username = Numed-I3
    2. Password = Numed1

      If you do not use our Intelligent Integration Interface (I3) normally, the above login details will likely not work.

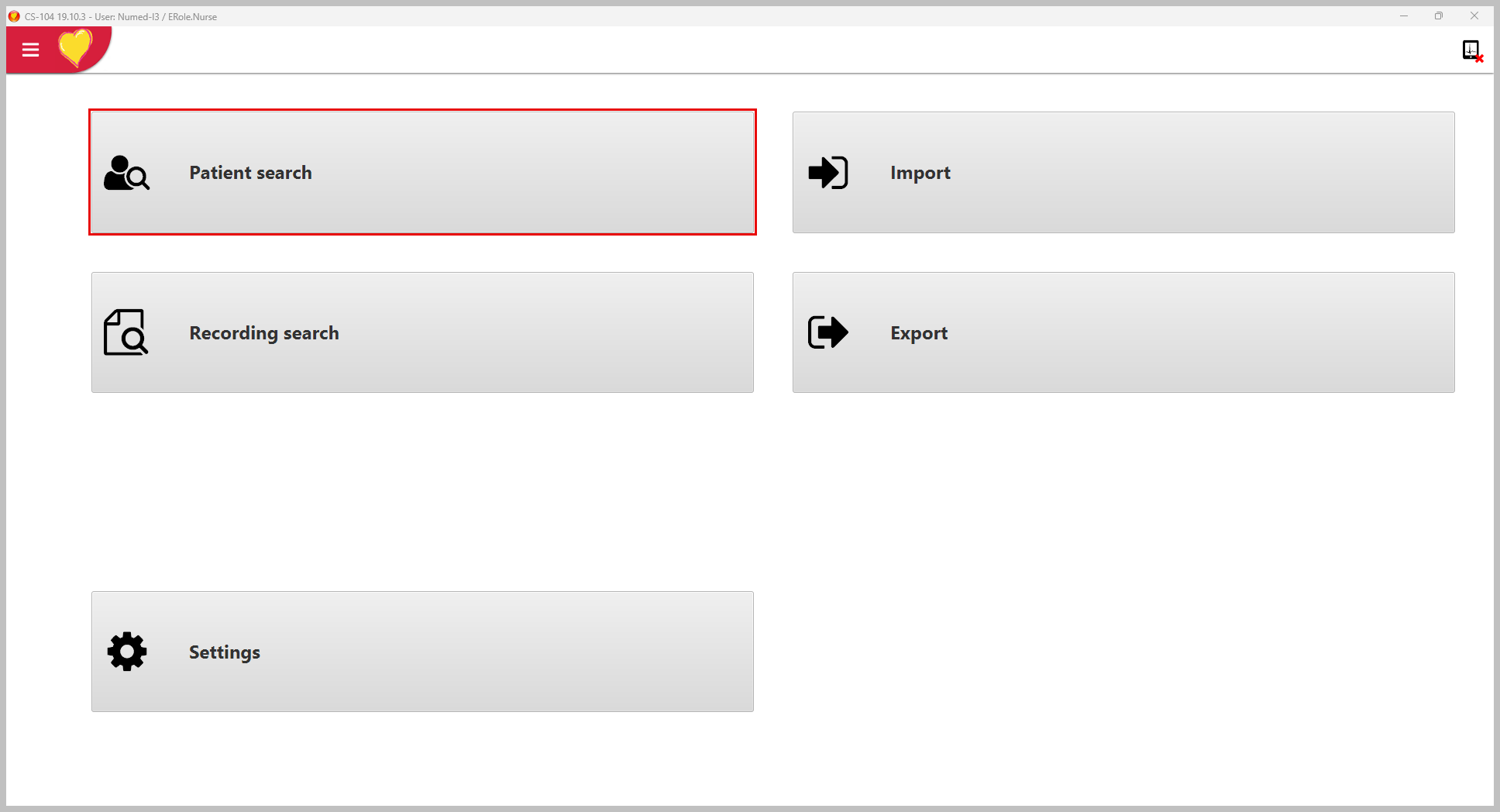

  3. Select Patient search

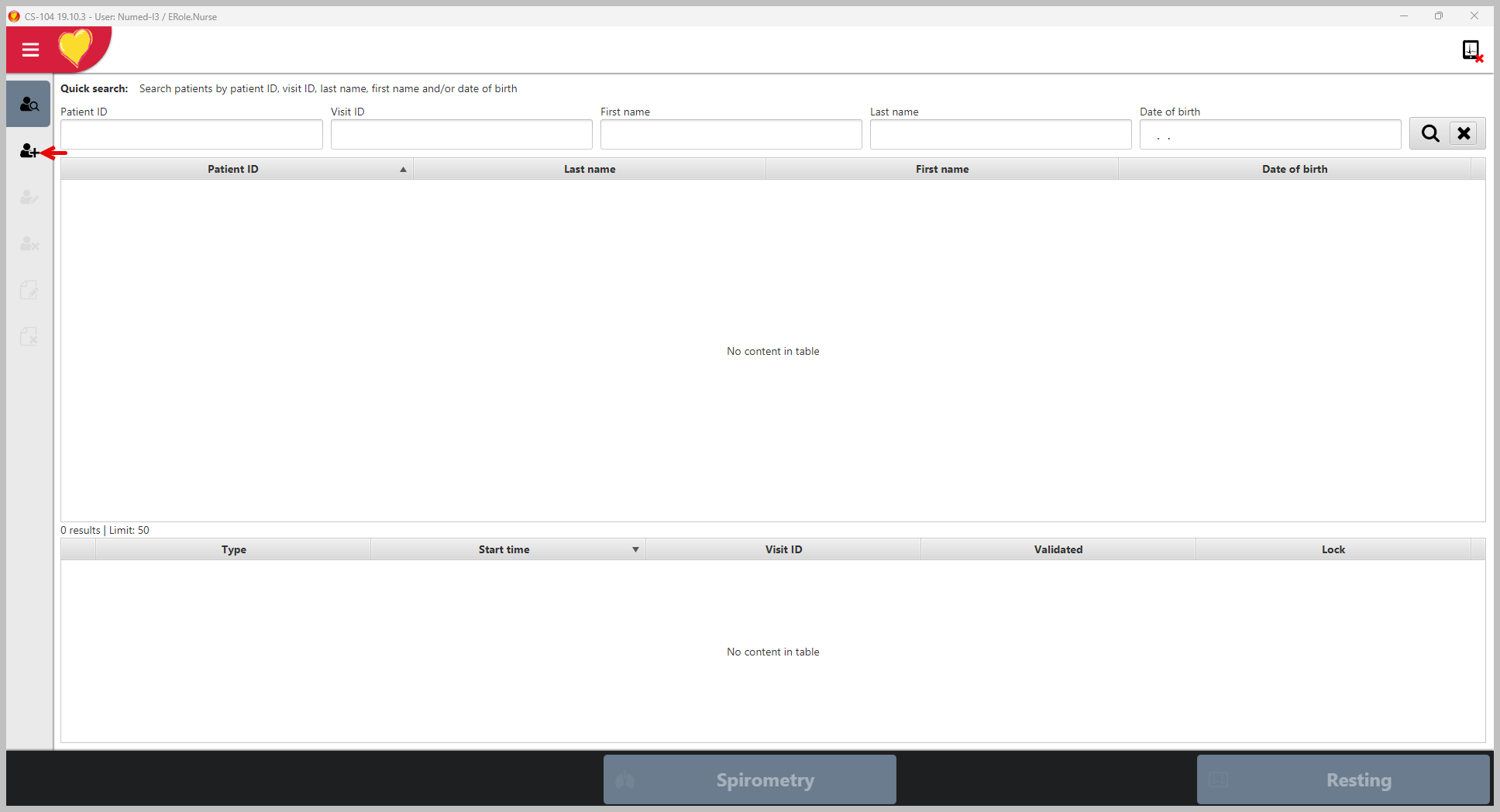

  4. Click the add patient icon

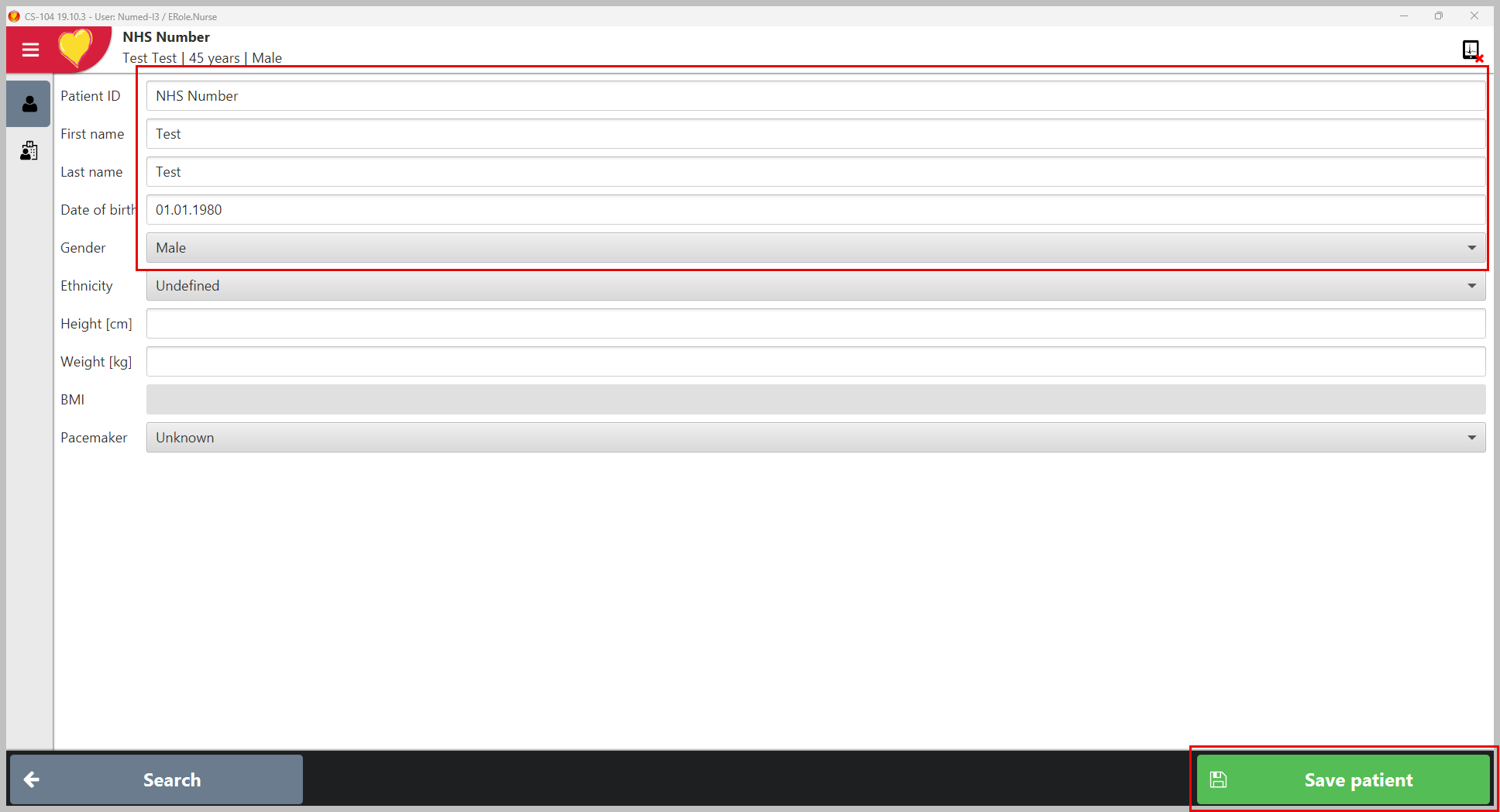

  5. Fill the add patient form out with as much information as possible - the minimum you need is a Patient ID - then click Save patient

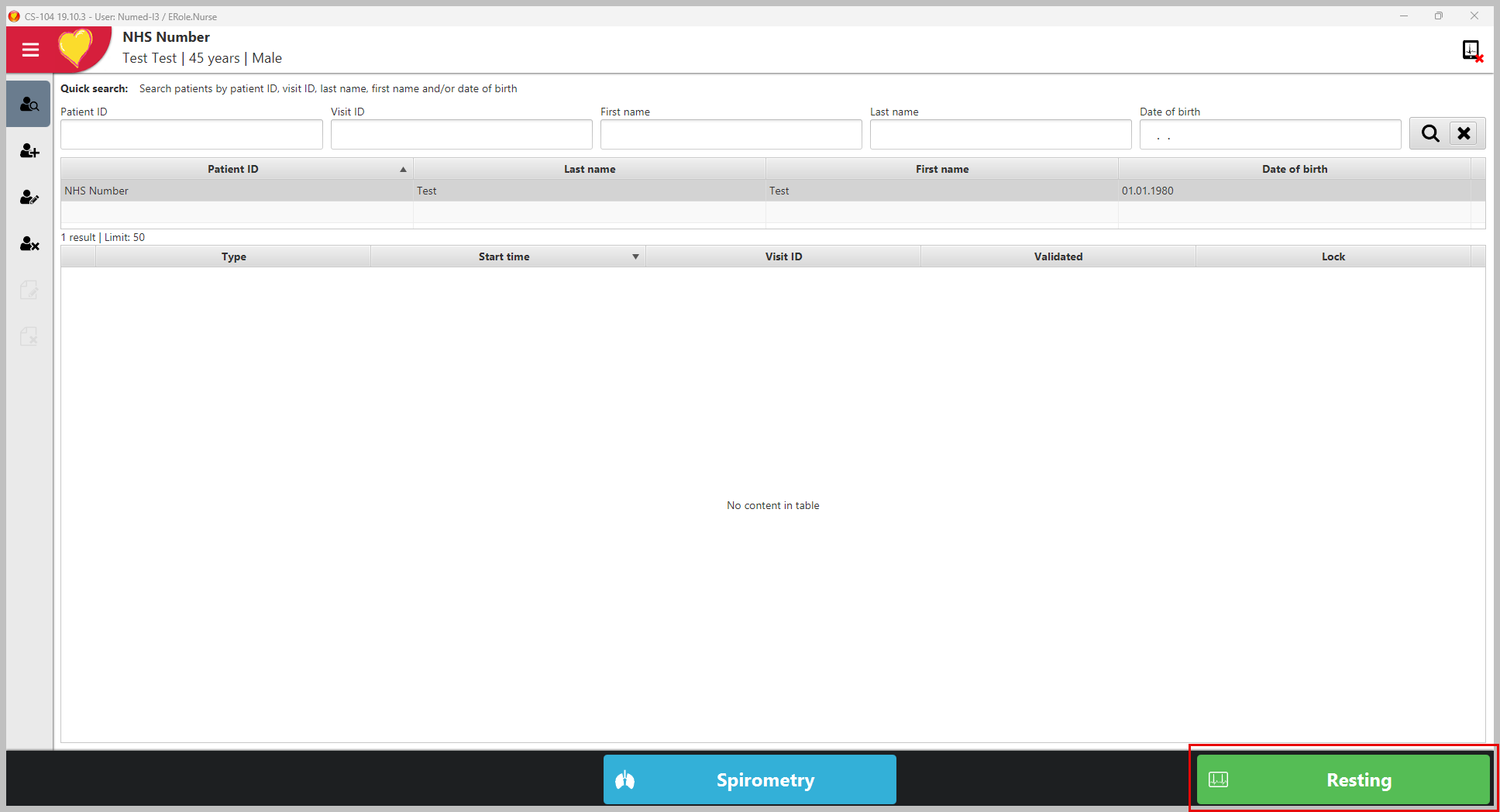

  6. Click Resting

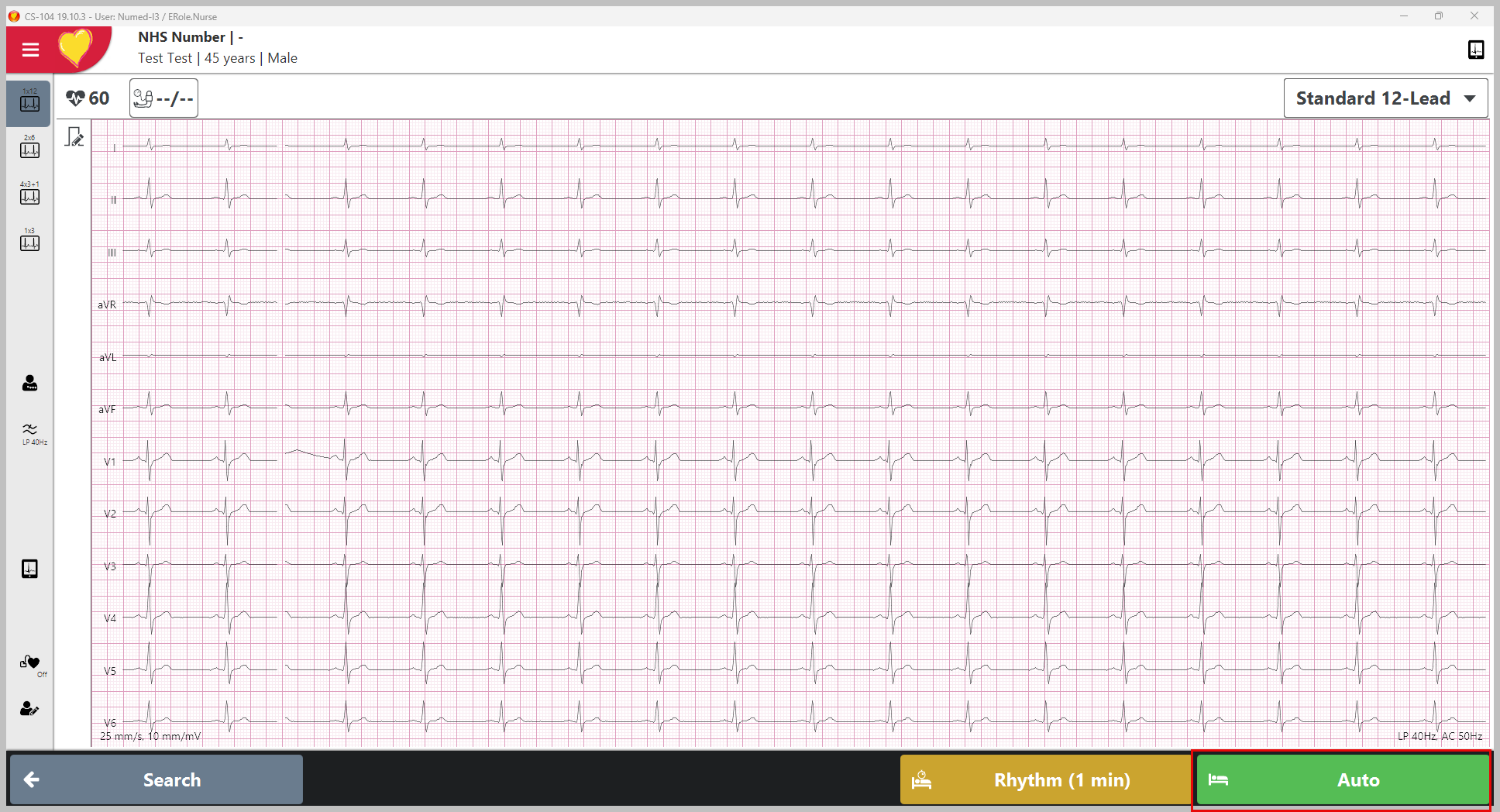

  7. Connect the patient to the electrodes and start a trace on the screen. When satisfied, either click Auto or press the Start button on the machine.

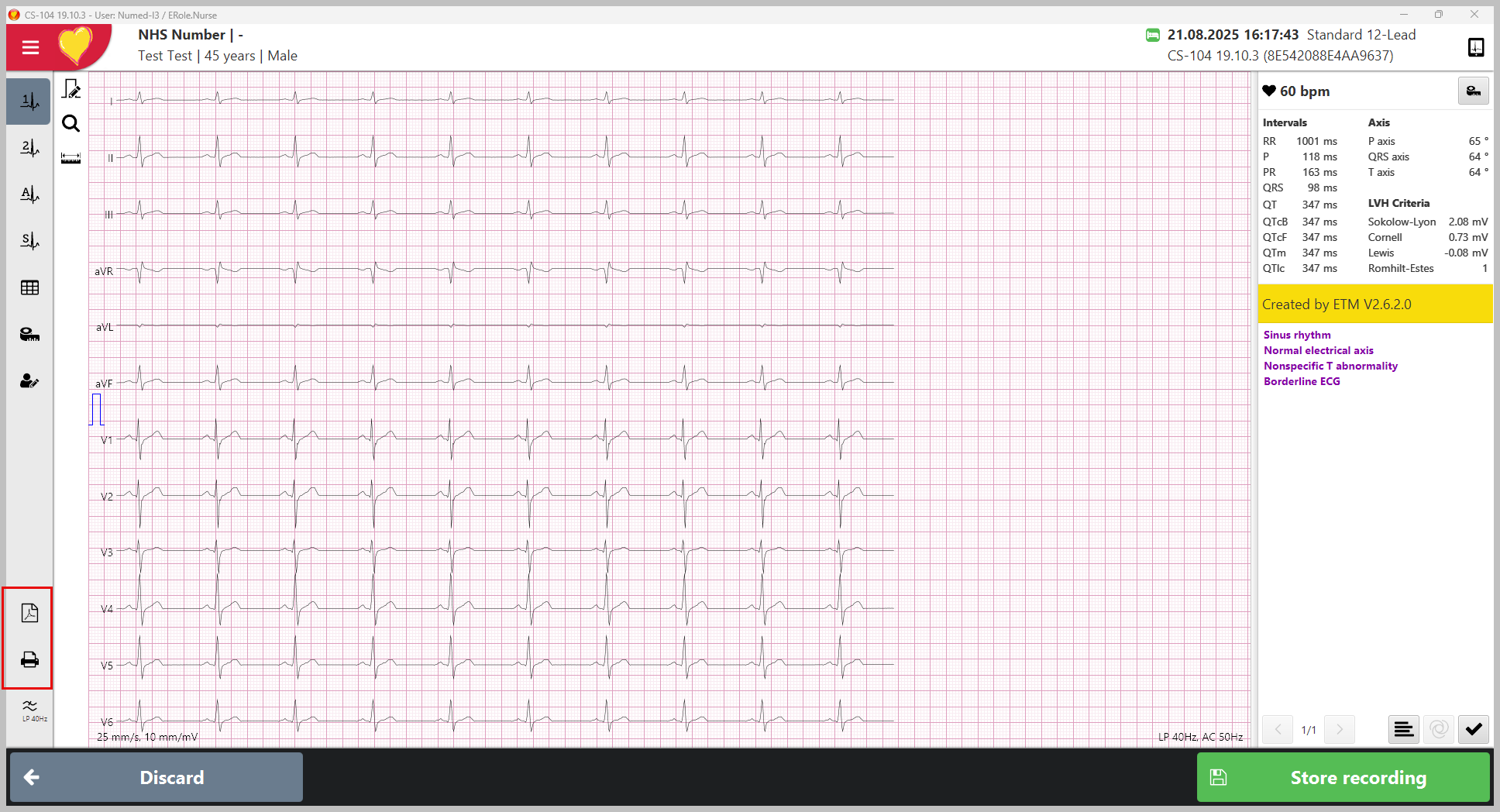

  8. To print a paper copy or export a PDF click the symbol on the left hand side

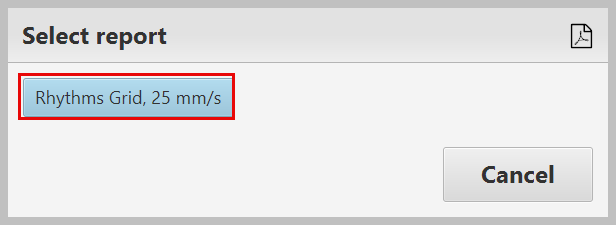

  9. Select Rhythms Grid, 25 mm/s

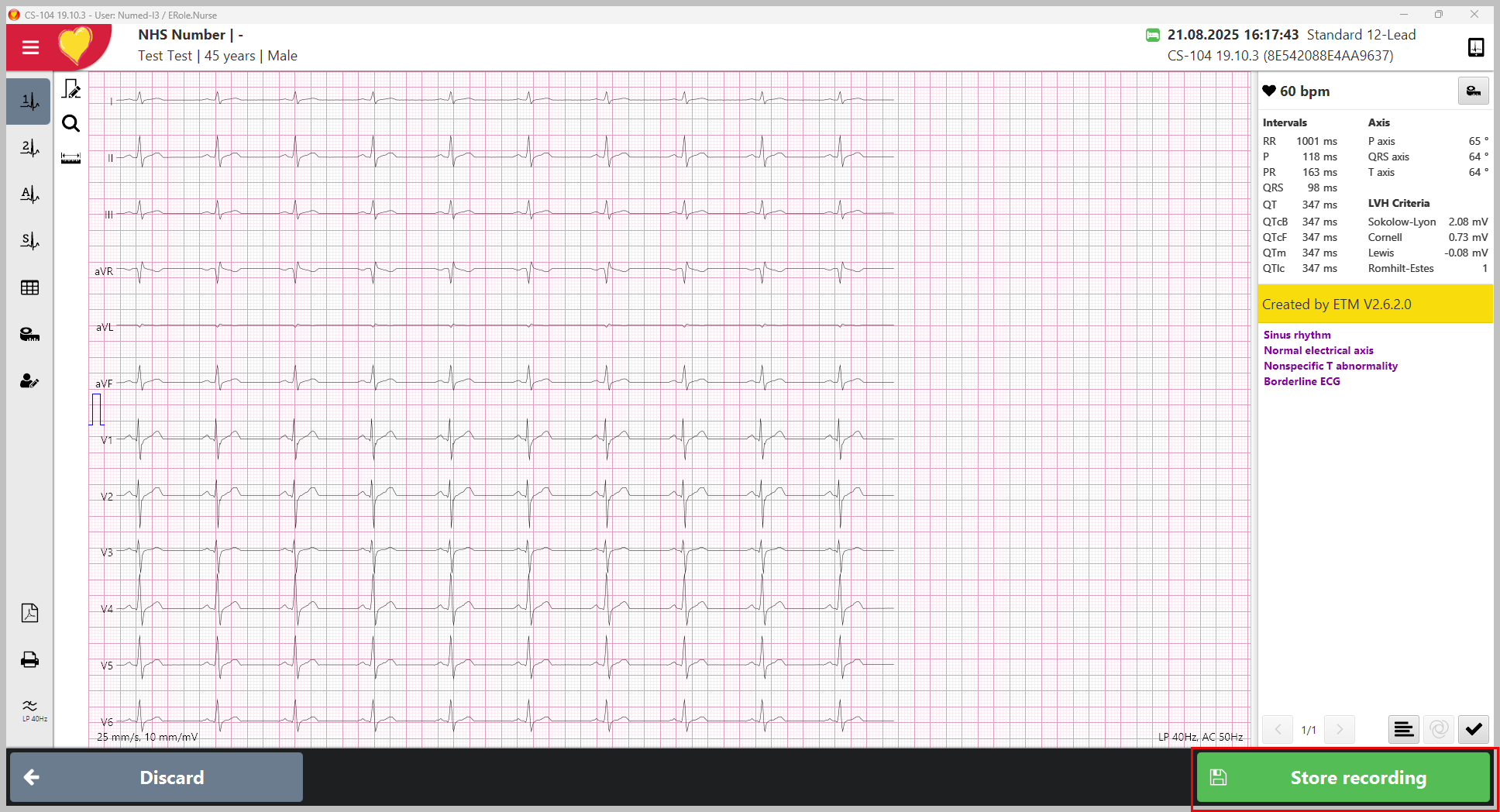

  10. Make sure you store the recording
  11. Once you regain access to the clinical system, you can attach the PDF to the patient's record.
Info
It is important to verify any diagnostic report by reviewing the data to ensure the information is correct.
