CardioSoft PDF Export Software and Connectivity Server without Integration Installation Guide

CardioSoft PDF Export Software and Connectivity Server without Integration Installation Guide

If you are using the MAC range of ECG machines with EMIS web, SystmOne or Vision, please go to CardioSoft PDF Export Software and Connectivity Server with Integration Installation Guide.

This guide will show you how to install and configure CardioSoft with Connectivity Server and a software license dongle for use with the MAC range of ECG machines. If you need the license keys and SWOPT files, please request them by going to Numed Installation Guides and Request Licenses.

Warning
If you have a CardioSoft MDR license instead of the software license dongle, please contact Numed support https://www.numed.co.uk/support for assistance before installation. If this installation is to replace an existing PC with the CardioSoft MDR license applied, you must contact Numed support before decommissioning the old PC.
Info
All steps in this guide must be followed for your device to work correctly. The installation and configuration will take between 20 and 40 minutes to complete.

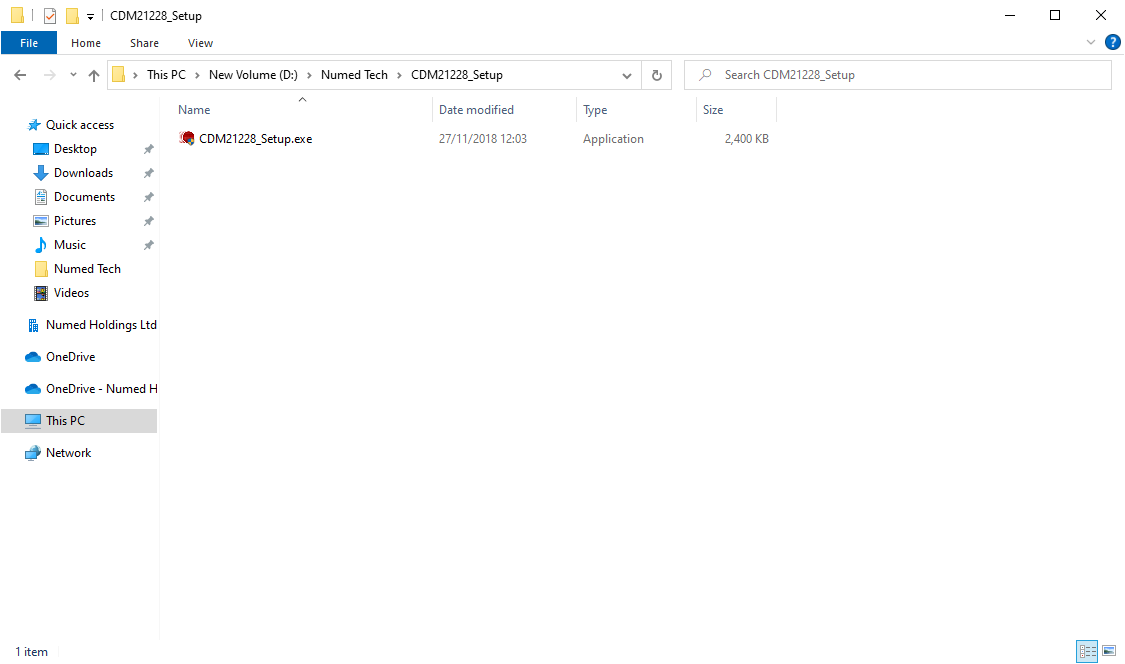

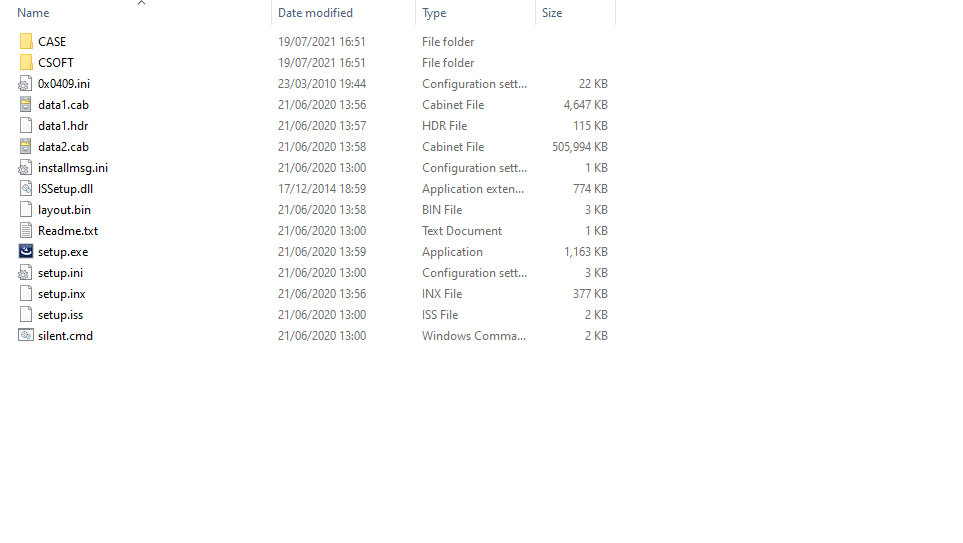

  1. Download and extract https://downloads.numed.co.uk/software/ge/Cardiosoft.zip, then run as administrator setup.exe
    A screenshot of a computerDescription automatically generated

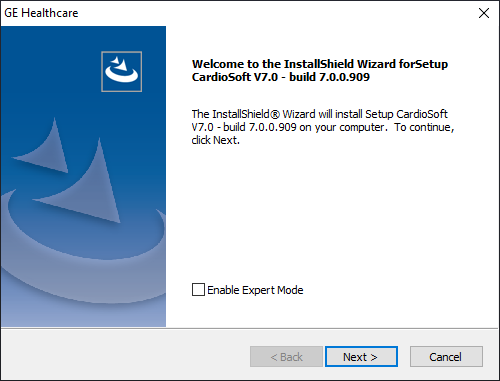

  2. Click Next
    Graphical user interface, applicationDescription automatically generated
  3. Click Next
    Graphical user interface, text, application, emailDescription automatically generated

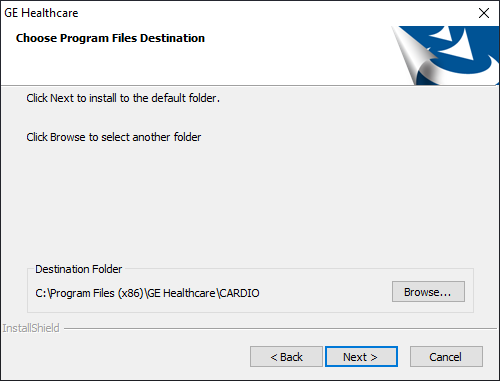

  4. Click Next
    Graphical user interface, text, application, emailDescription automatically generated

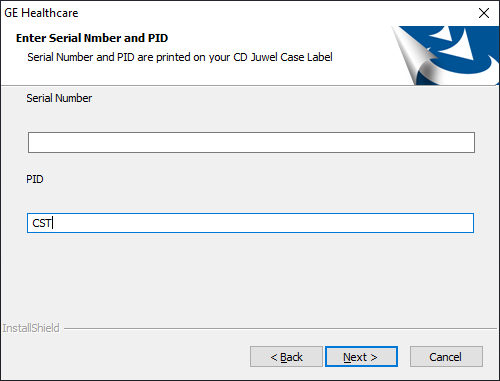

  5. Locate the software serial number found on the software license dongle or option codes sheet. Enter the serial number in the format SSG[DEVICE SERIAL]HA. The PID is always CST, then click Next.
    Graphical user interface, text, application, emailDescription automatically generated

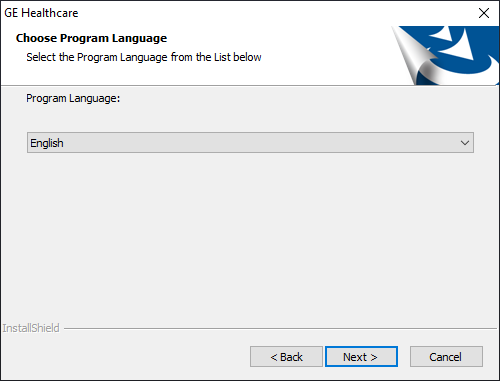

  6. Ensure English is selected and click Next.
    Graphical user interface, text, application, emailDescription automatically generated

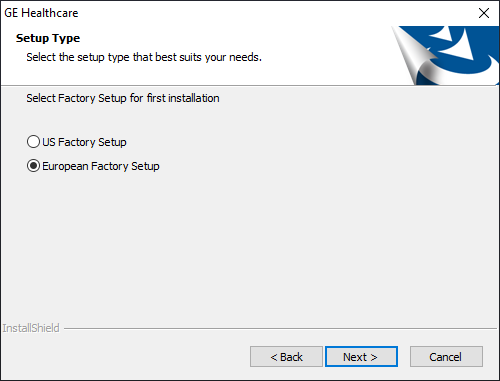

  7. Ensure European Factory Setup is selected – if this step is missed you will need to uninstall and start from the beginning again.
    Graphical user interface, text, applicationDescription automatically generated

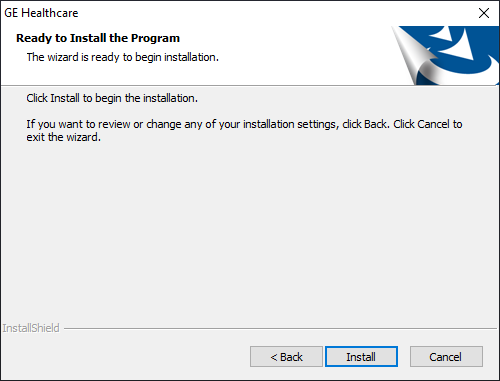

  8. Click Install
    Graphical user interface, text, application, emailDescription automatically generated

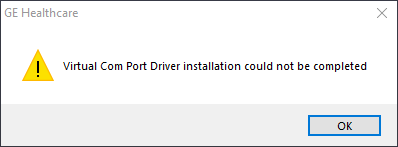

  9. The Virtual COM Port Driver is not needed – click OK.
    Graphical user interface, textDescription automatically generated with medium confidence

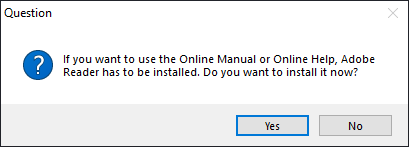

  10. Click No to installing Adobe Reader.
    Graphical user interface, applicationDescription automatically generated

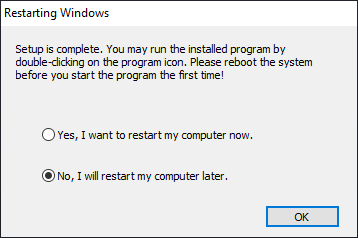

  11. Click No to restart the PC and click OK.
    Graphical user interface, text, applicationDescription automatically generated

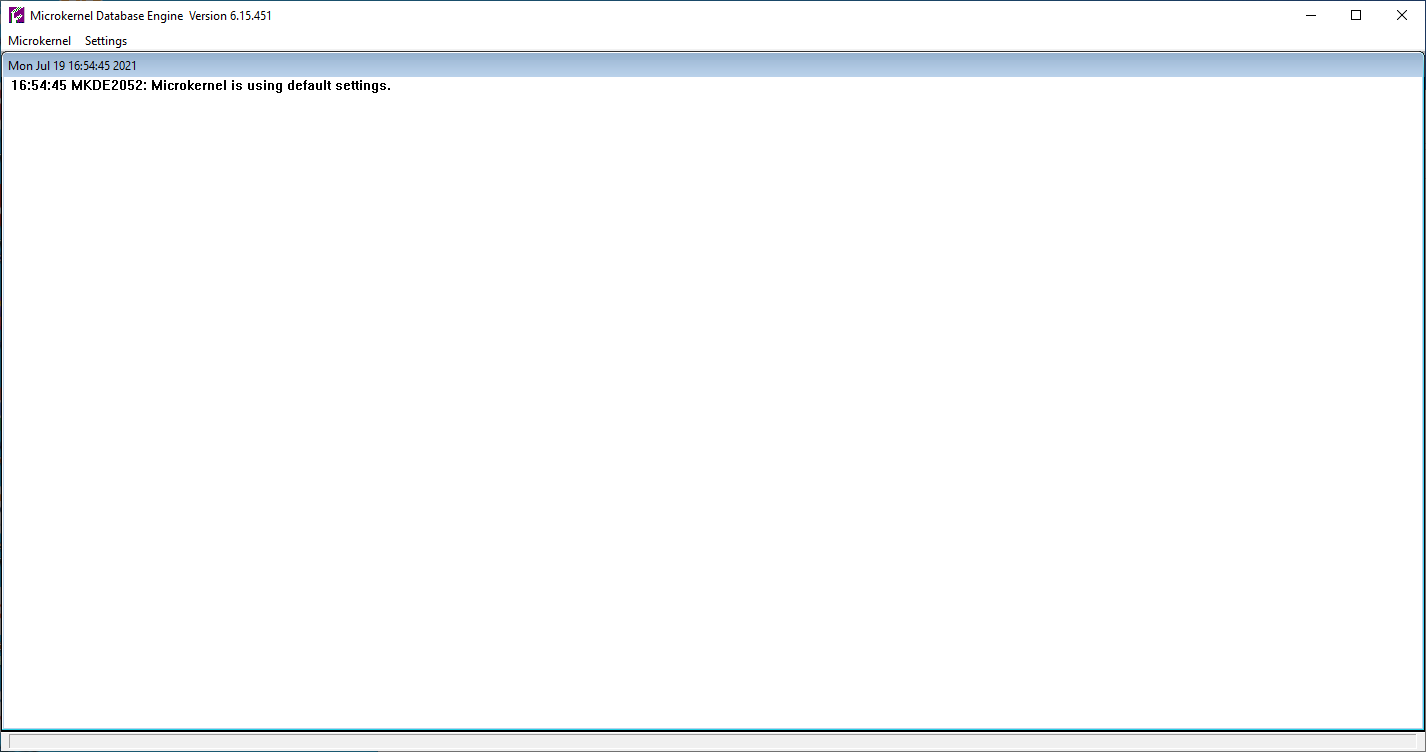

  12. This window will have opened automatically, you must close it before proceeding as it will impact on software operation.
    Graphical user interface, text, applicationDescription automatically generated with medium confidence

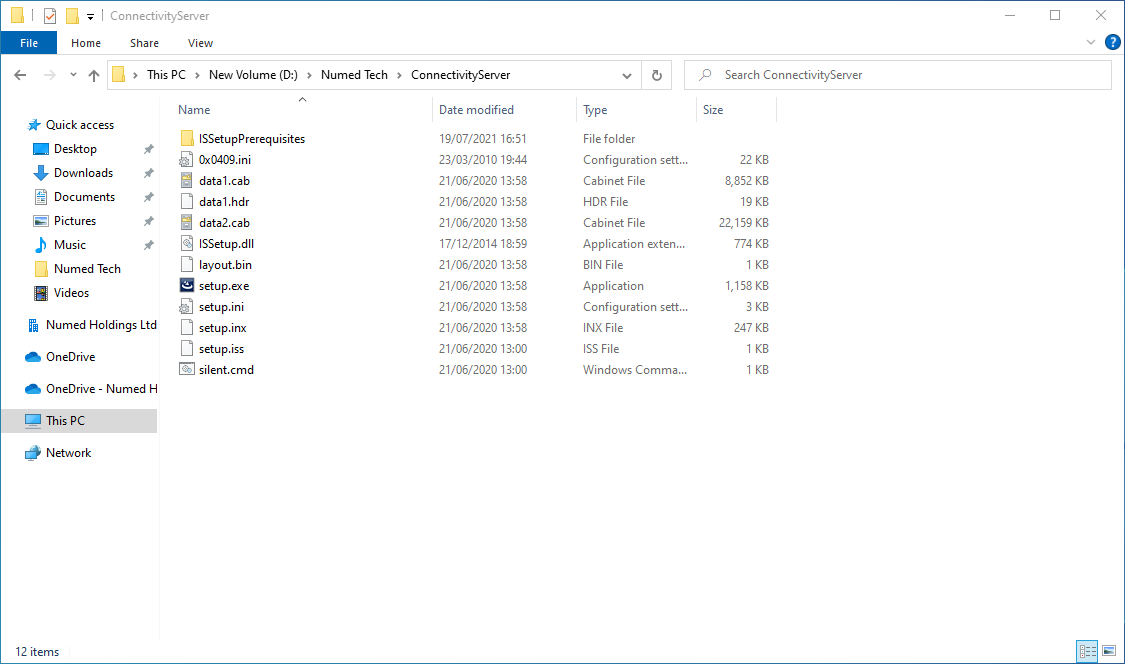

  13. Download and extract https://downloads.numed.co.uk/software/ge/ConnectivityServer.zip, then run as administrator setup.exe
    Graphical user interfaceDescription automatically generated

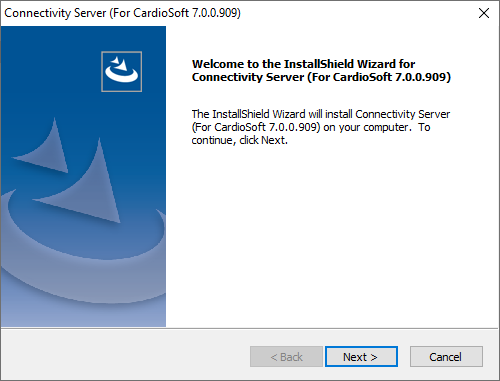

  14. Click Next
    Graphical user interface, applicationDescription automatically generated

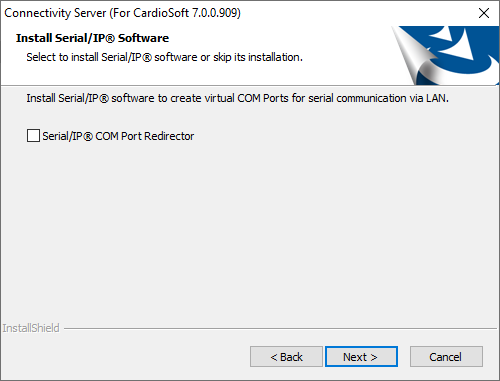

  15. Click Next
    Graphical user interface, text, application, emailDescription automatically generated

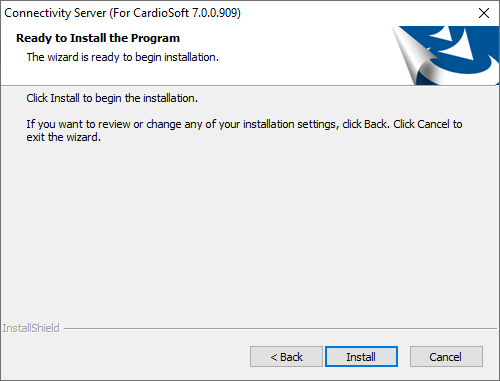

  16. Click Install
    Graphical user interface, text, application, emailDescription automatically generated

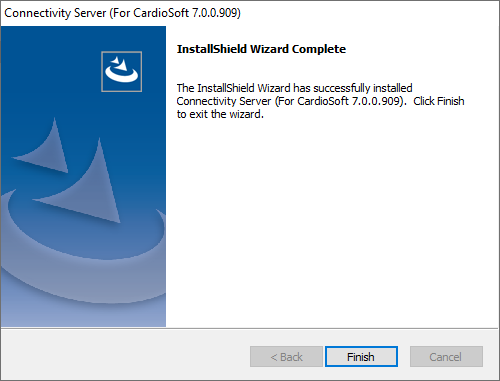

  17. Click Finish
    Graphical user interface, applicationDescription automatically generated
  18. Download and run https://downloads.numed.co.uk/Support/I3Tools/FTDIUSBtoSerialDriver.exe – This is a driver for the USB to Serial converter.
    Graphical user interface, text, application, emailDescription automatically generated

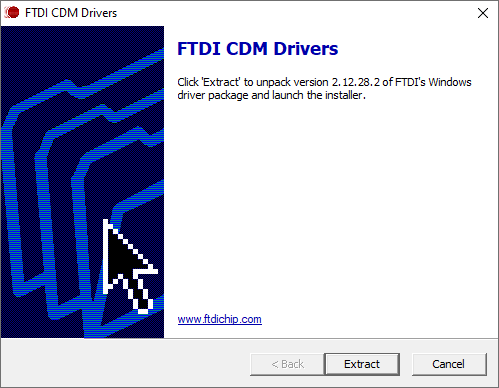

  19. Click Extract
    Graphical user interface, applicationDescription automatically generated
  20. Click Next
    Graphical user interface, applicationDescription automatically generated
  21. Accept the agreement and click Next.
    Graphical user interface, text, application, emailDescription automatically generated

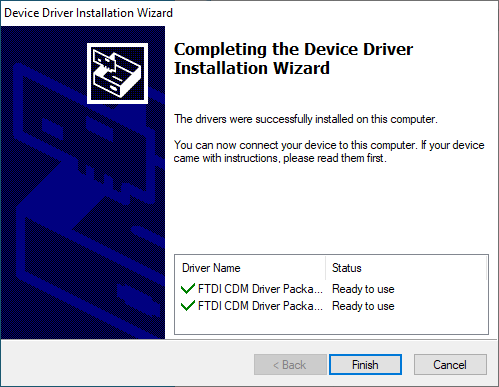

  22. Click Finish
    Graphical user interface, applicationDescription automatically generated
  23. Connect the USB to Serial converter to the download cable, then plug the USB into the PC we advise that you always use the same USB port wherever possible.
    A picture containing cable, connector, adapterDescription automatically generated

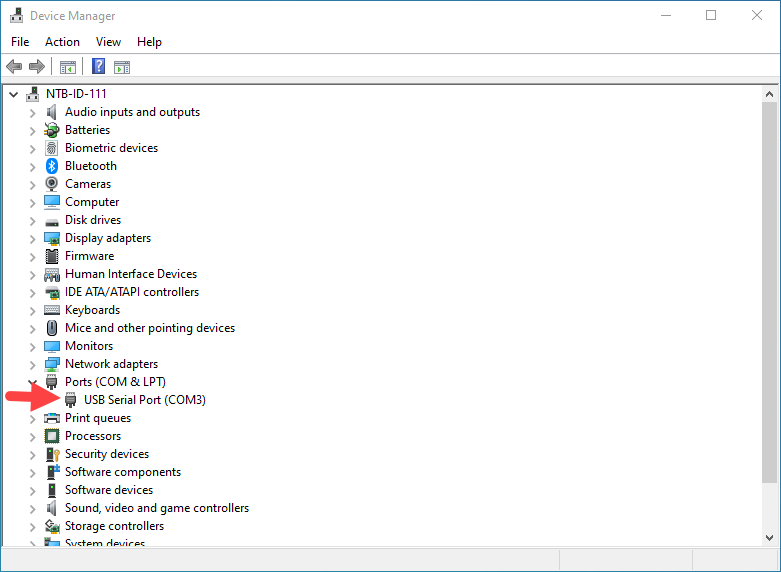

  24. Go to the device manager and make a note of the USB Serial Port COM number (it won’t necessarily be COM3)
    Graphical user interface, text, applicationDescription automatically generated
  25. Plug the blue USB license key into the PC. Please advise the customer that the USB dongle must always be plugged in before starting any download of ECGs

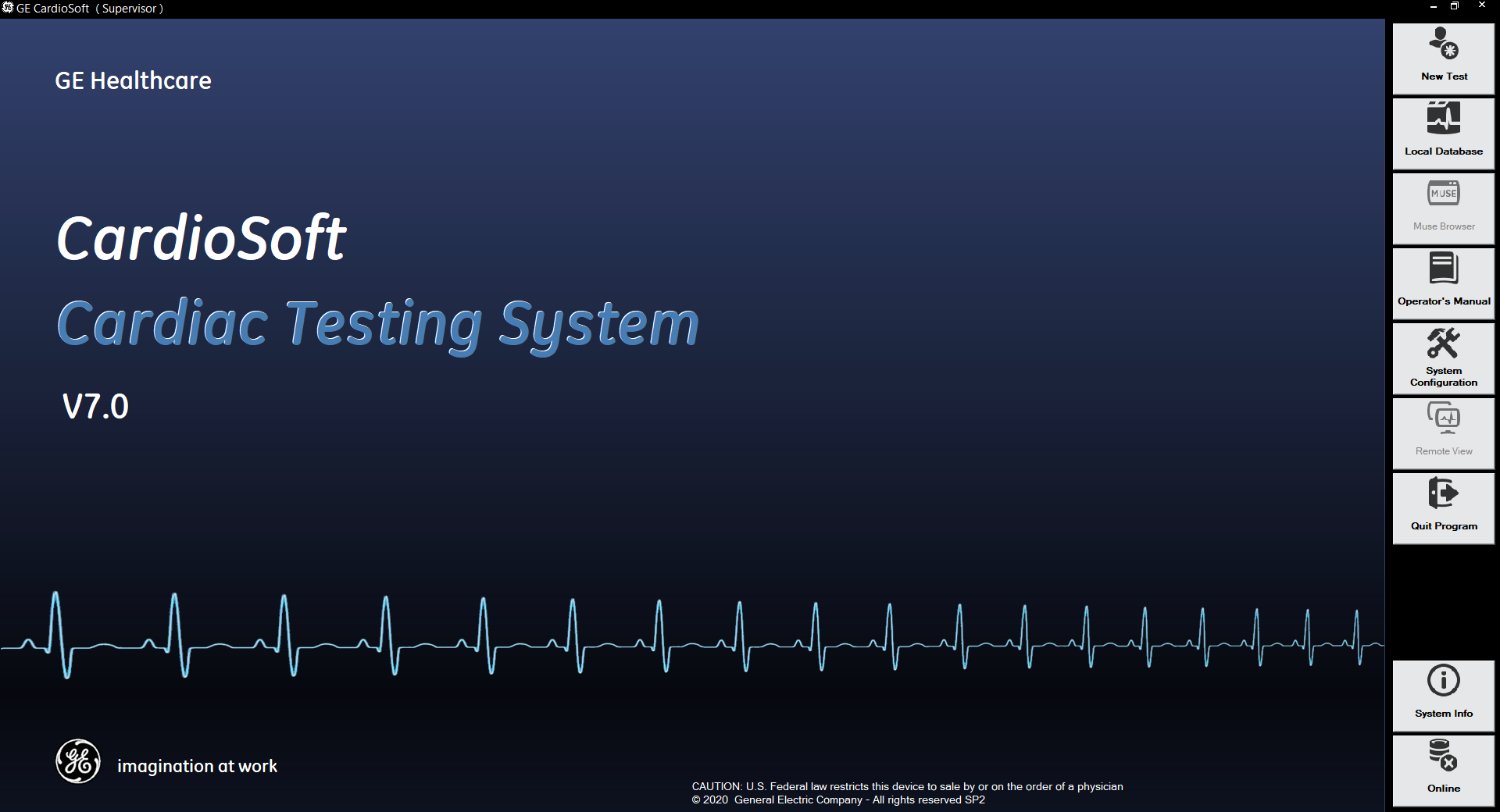

  26. Go to the desktop and open CardioSoft.
    A computer screen with a blue screenDescription automatically generated
  27. Click System Configuration on the right-hand side.
    Graphical user interfaceDescription automatically generated

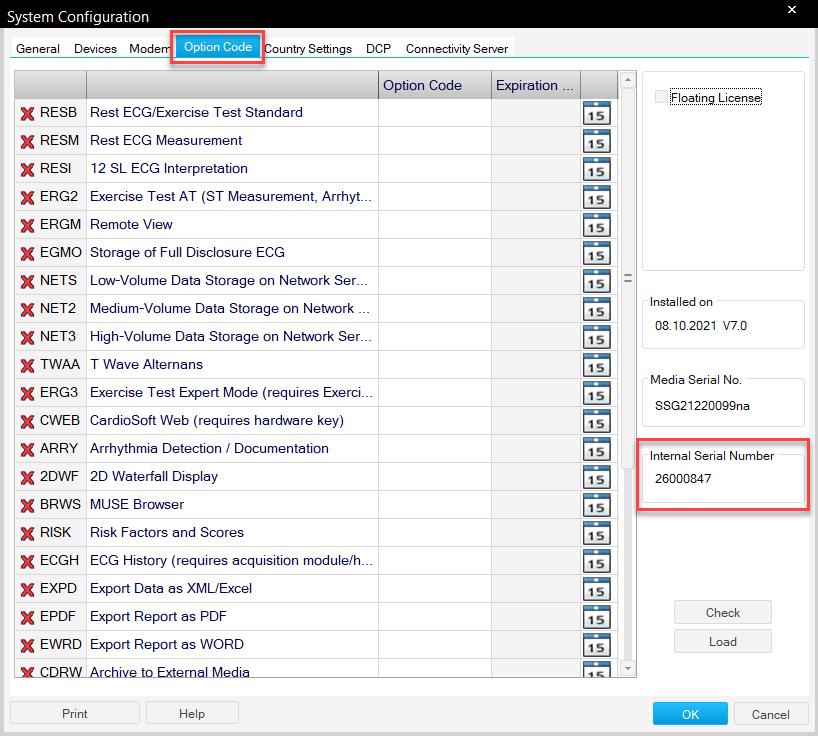

  28. Go to the Option Code tab (top of the window) and confirm the serial number is visible.
    A screenshot of a computerDescription automatically generated

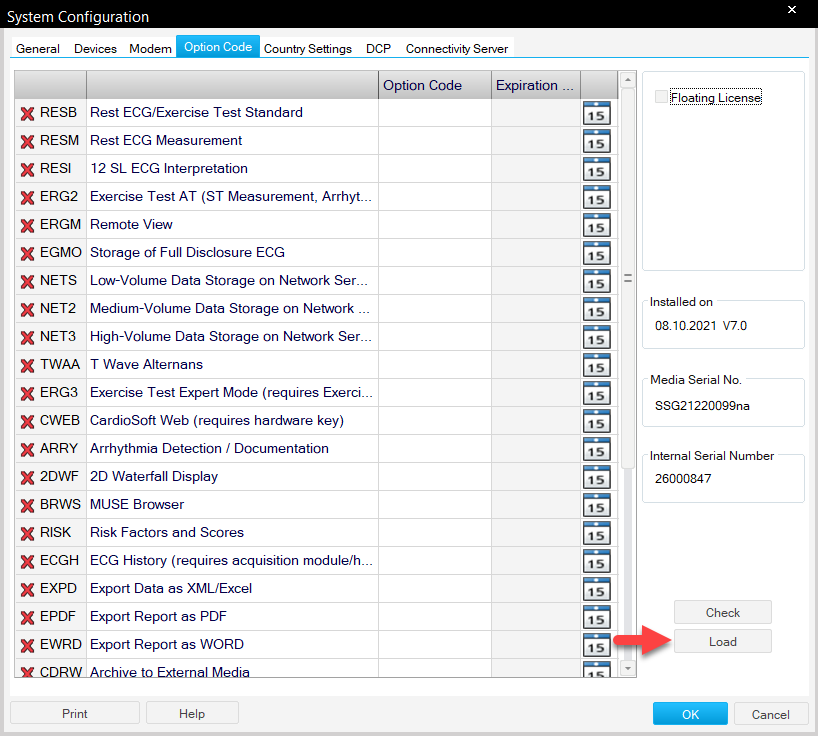

  29. Click Load
    A screenshot of a computerDescription automatically generated

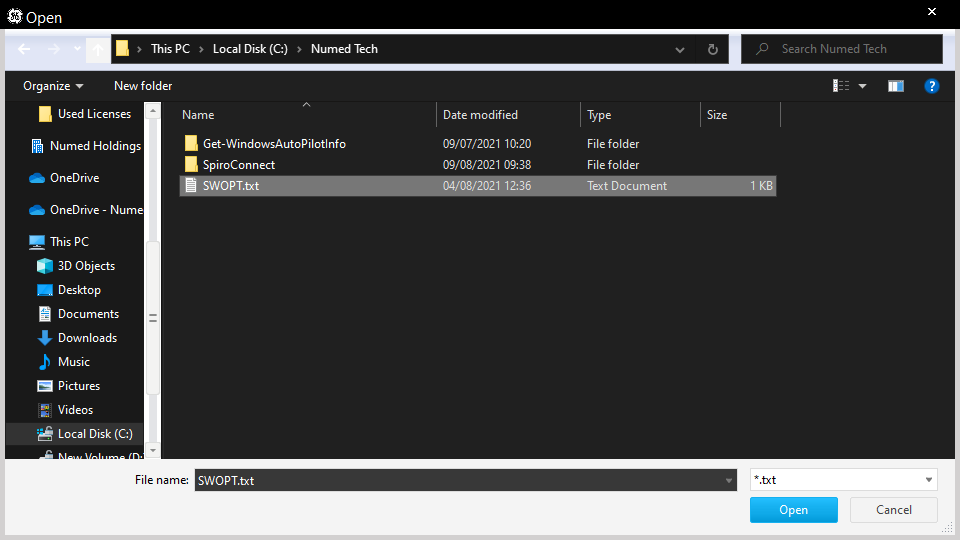

  30. Navigate to where you’ve placed the supplied option codes text file, this file is typically named SWOPT – serial number.txt and click open.
    A screenshot of a computerDescription automatically generated with medium confidence

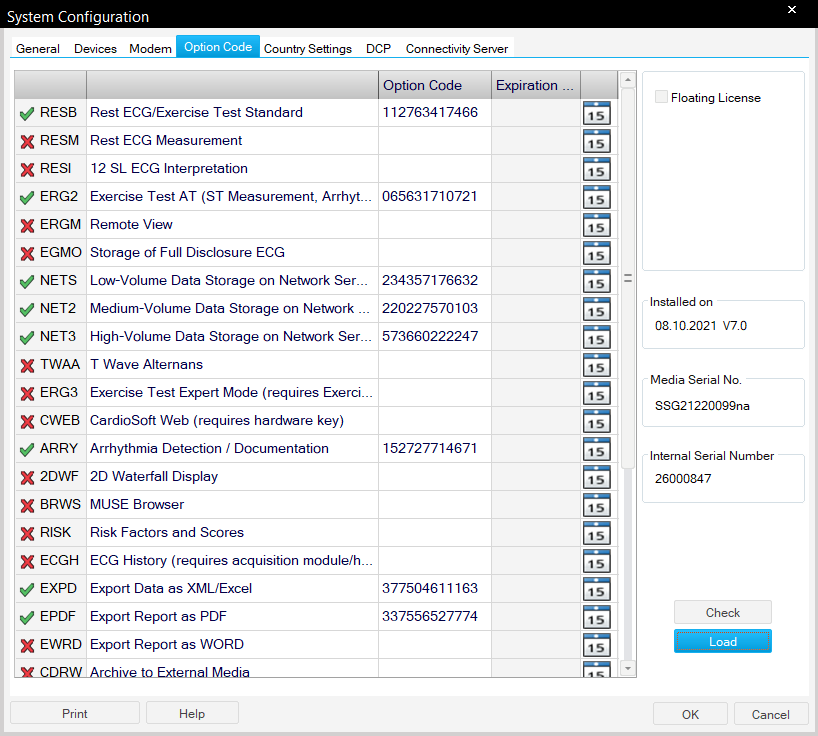

  31. If the Option codes are correct you should see a green tick against the imported codes. Please note that your enabled options may differ to the image. Click OK
    A screenshot of a computerDescription automatically generated

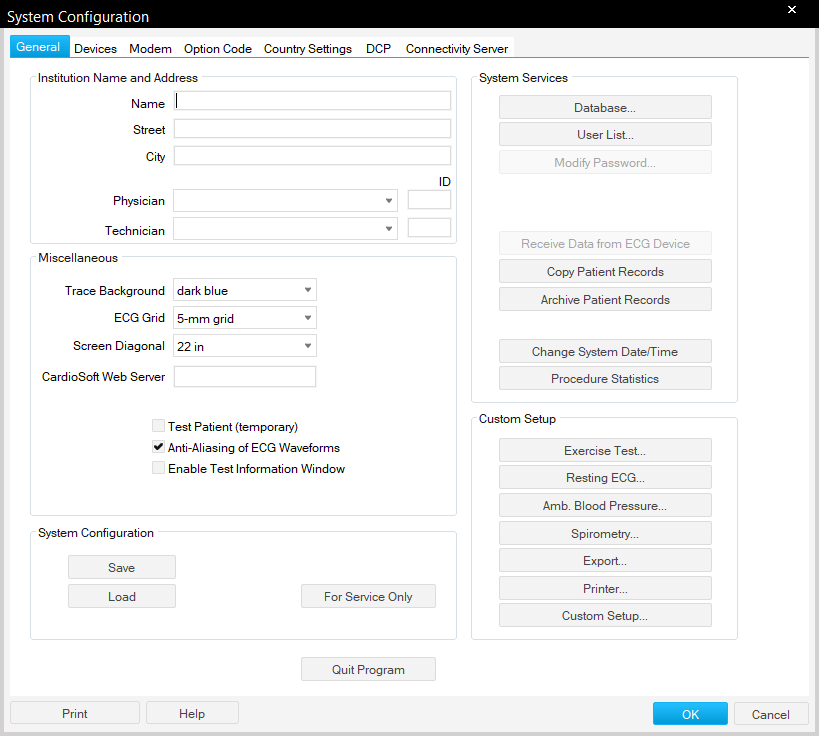

  32. Click System Configuration
    Graphical user interfaceDescription automatically generated
  33. Click Resting ECG in Custom Setup
    Graphical user interface, applicationDescription automatically generated

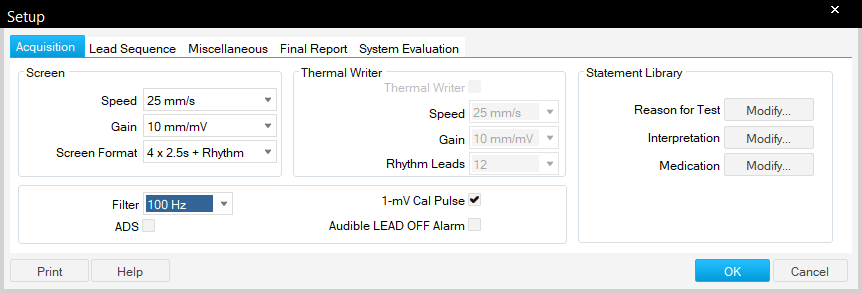

  34. Configure the Acquisition tab as below.
    A screenshot of a computerDescription automatically generated

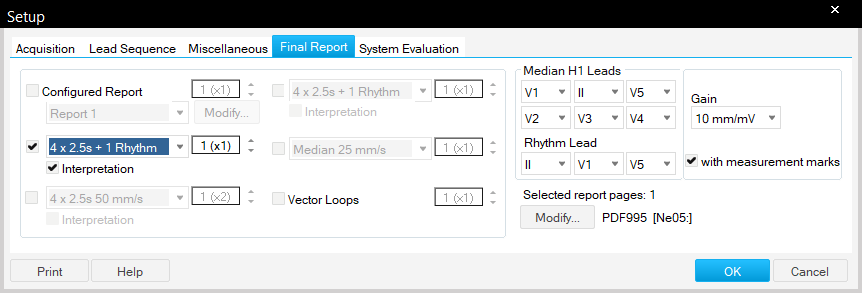

  35. Configure the Final Report tab as below.
    A screenshot of a computerDescription automatically generated
  36. All other tabs you can leave with defaults, once finished Click OK
  37. Click on Export in Custom Setup
    Graphical user interface, applicationDescription automatically generated

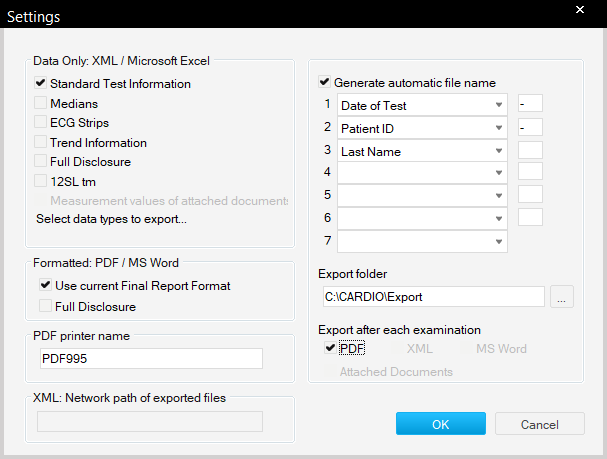

  38. Configure the setup as below, please note the PDF tick box will only be enabled if the USB dongle is plugged in. Click OK when done.
    A screenshot of a computerDescription automatically generated
  39. Click Printer in Custom Setup
    Graphical user interface, applicationDescription automatically generated

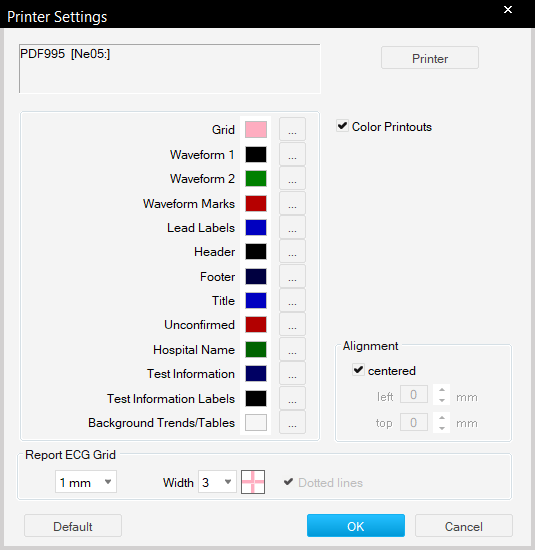

  40. Configure as below, click OK when done.
    Graphical user interface, applicationDescription automatically generated

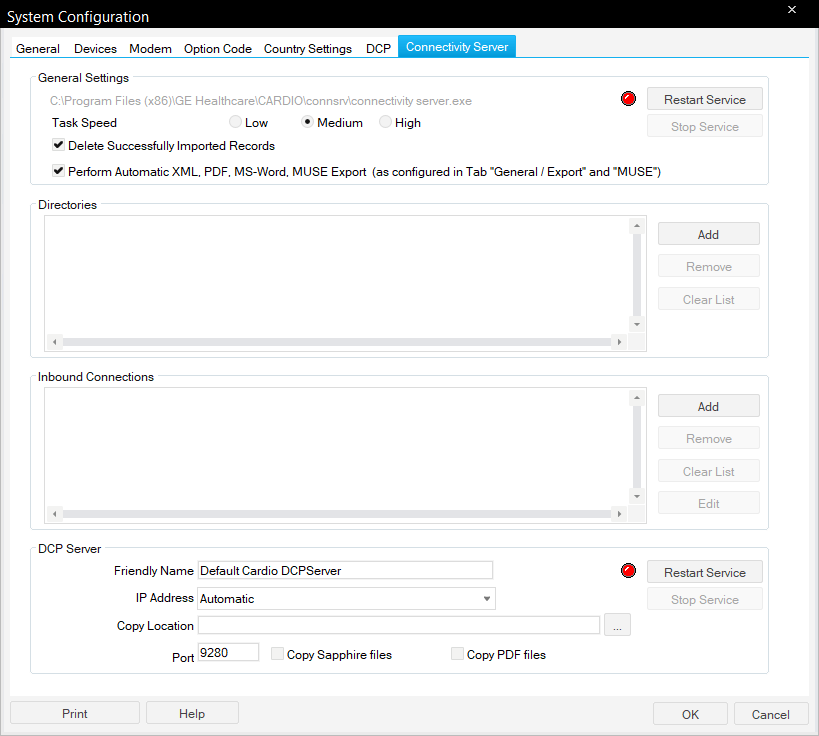

  41. Go to the Connectivity Server tab, then configure General Settings as per below and then click Add in Inbound Connections.
    Graphical user interface, applicationDescription automatically generated

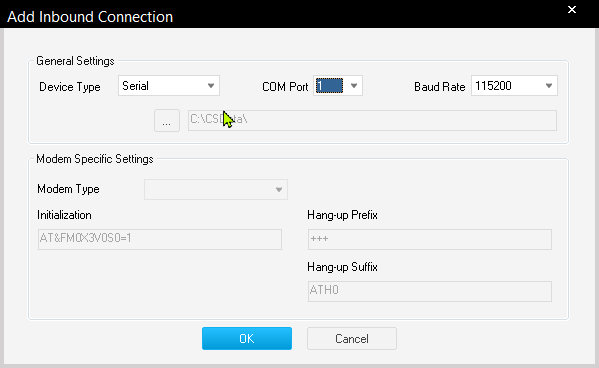

  42. Set the COM Port to match the COM number assigned to the USB converter, then click the button with …
    Graphical user interface, text, applicationDescription automatically generated

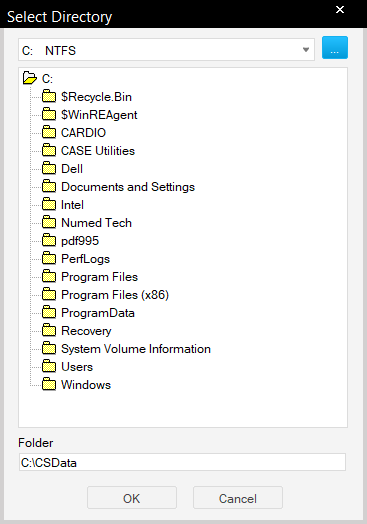

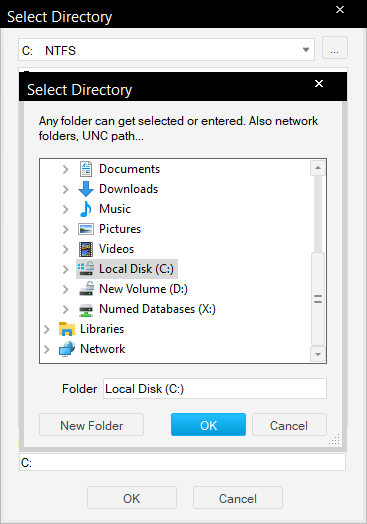

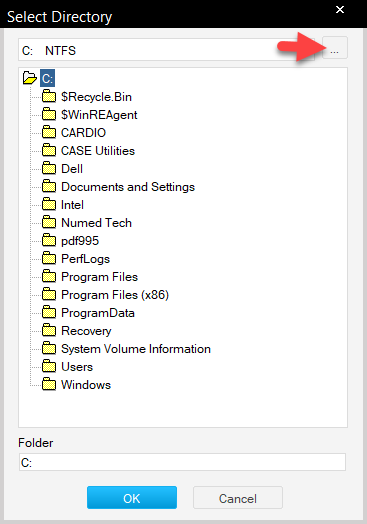

  43. Navigate to the folder you would like to use for the ECG transfer and click OK
    Graphical user interface, text, applicationDescription automatically generated
  44. Click OK
    Graphical user interface, text, applicationDescription automatically generated

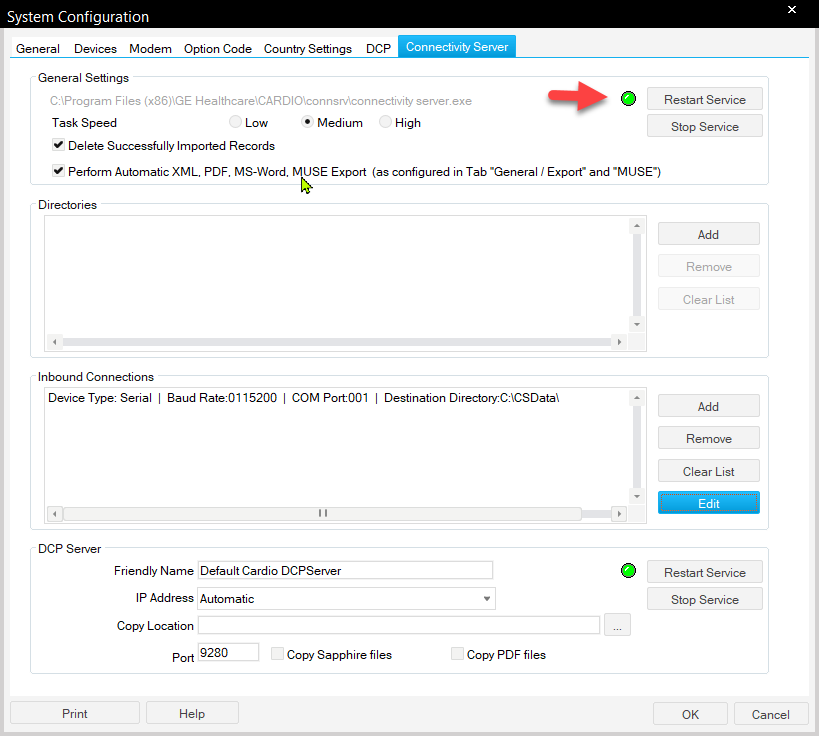

  45. In General Settings, click Restart Service the red light should change to Green. Click the restart service again if it doesn’t.
    Graphical user interface, applicationDescription automatically generated
  46. Click OK and Quit Program
  47. Download and run as administrator https://downloads.numed.co.uk/Support/I3Tools/SetPermissionsAll.zip.
  48. You are now ready to test the data transfer from the machine to the PC.
  49. Power the MAC600 On

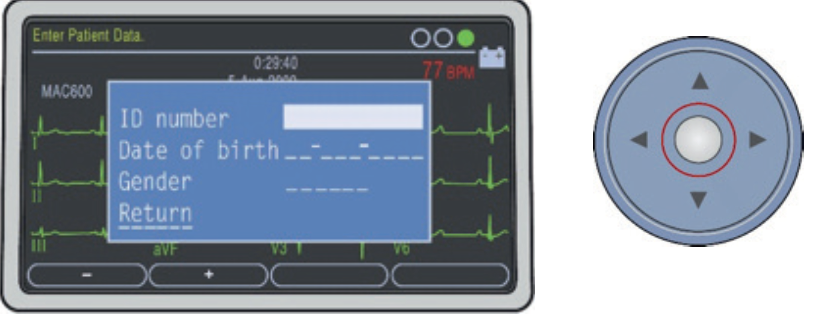

  50. Press F1 for Patient Data, in the ID number type 1234, then press Enter (white circular button in the middle of the arrows.
    Graphical user interface, applicationDescription automatically generated
  51. Press the Green Button
    Press F3 to store the ECG
  52. Turn the machine off and back on
  53. Make sure the data cable is connected to the correct location on the machine.
  54. Press F4 More
  55. Press F3 File Manager
  56. Press F2 Select All
  57. Press F3 Transmit.
  58. Once files have been transmitted successfully, you need to give the computer at least 10 seconds per ECG to process, before looking for the PDF in C:\CARDIO\Export\
You are now ready to use the machine and software.
