How to add in the Select Device button

How to add in the Select Device button

If your select device button is missing from the ECG screen when attempting to capture an ECG, follow the steps below to add it in.

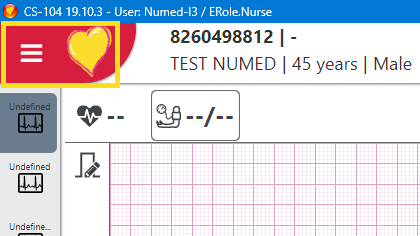

  1. Click the yellow heart menu.
  2. Click Edit Actions at the bottom of the screen.

  3. Locate an empty slot - slots labelled + Add component - we recommend a slot closer to the bottom of the list

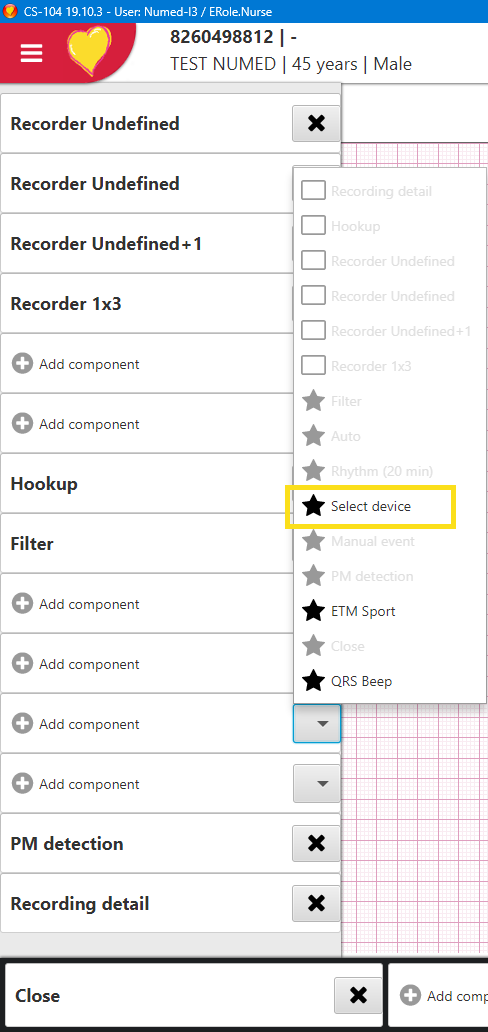

  4. Click the drop-down arrow and choose Select device.

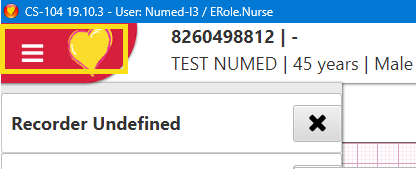

  5. Click the yellow heart menu.
  6. Click the Save actions at the bottom.
  7. The select device button will now be available to use, if needed, straight away. Please see Schiller ECG Machine Not Detected
