Schiller ECG Machine Not Detected
When attempting an ECG with your Schiller MS-12 device, and you get the software launched, but no lines go across the screen and no text to alert that it may be leads off, and in the top right-hand corner of the screen, it shows a red X.

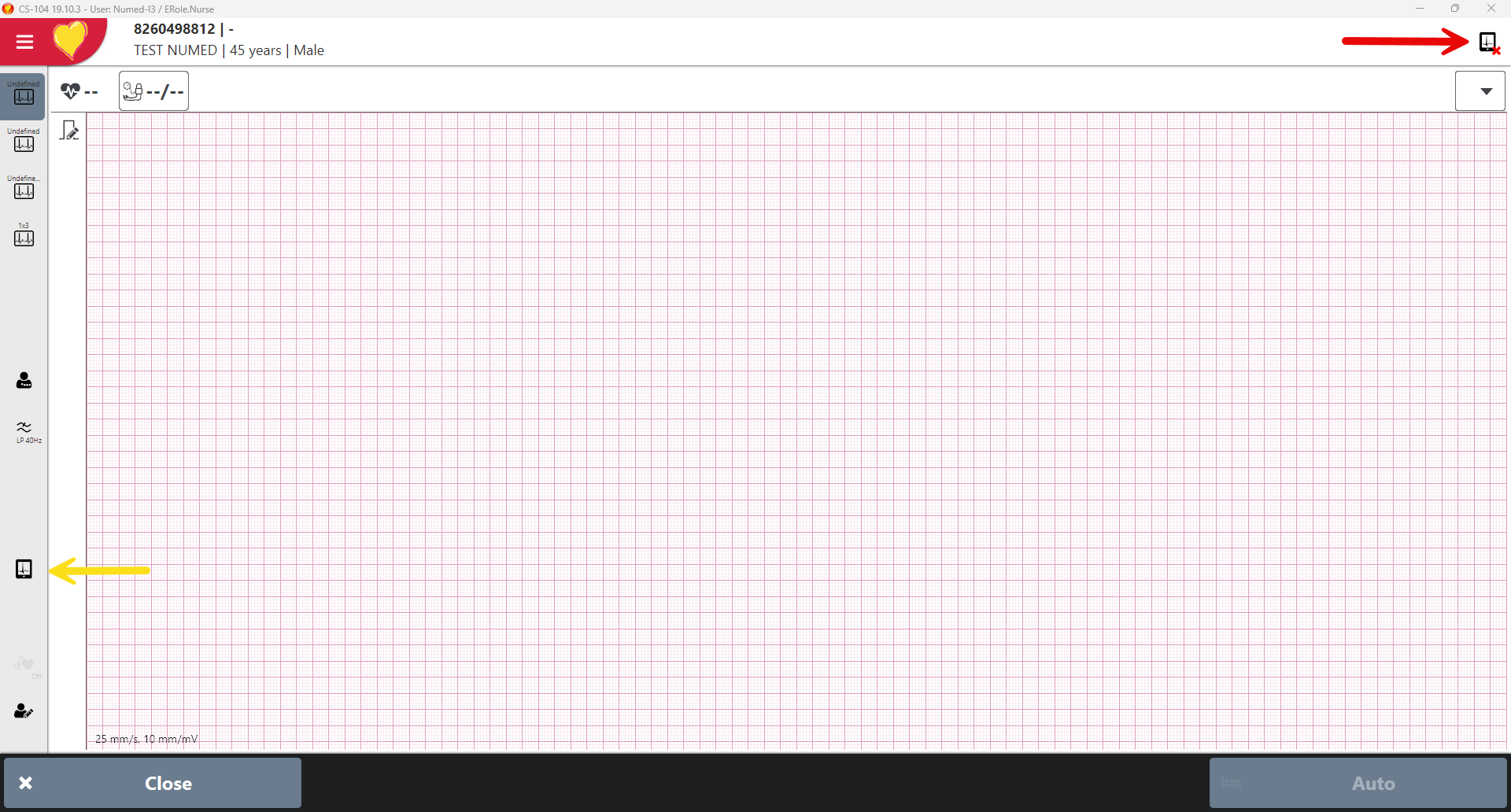

To resolve, click the ECG icon as shown by the yellow arrow on the left-hand side, then select the correct serial-numbered unit.

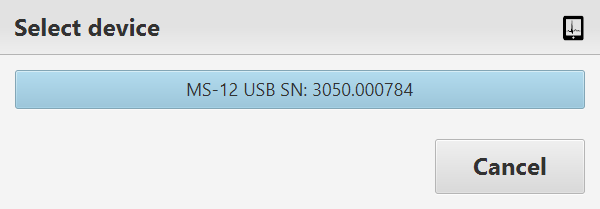

The box with the serial number looks like the image below. Once you click the serial number, your ECG will start running:
If the 'Select device' option is missing from your software, please see 'How to add the Select Device button'.
If you need any assistance, please get in touch with Numed support via the live chat on this page.
