Mobil-o-graph HMS-CS Installation Guide without Integration

Mobil-o-graph HMS-CS Installation Guide without Integration

If you are using the Mobil-o-Graph ABPM with EMIS web, SystmOne or Vision please go to the Mobil-o-Graph Software with Integration Installation Guide.

This guide will show you how to install and configure the HMS Client Server for use with Mobil-o-Graphs ABPM devices without any integration. Before performing this installation, you will need the Mobil-o-Graph ABPM device and its download cable.

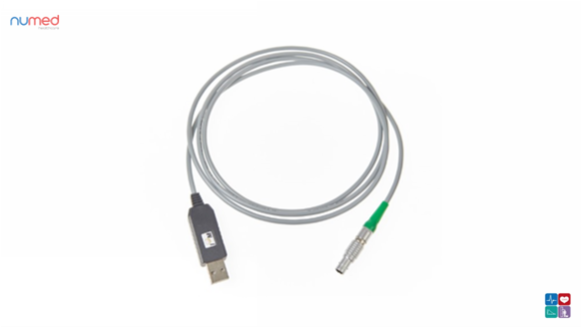

AlertIf you are installing on Windows 11, only download cables with a blue sheath that are compatible. If you have an incompatible download cable, please go to https://www.numed.co.uk/products/iem-mobil-o-graph-usb-download-cable-blue to source a replacement.


Please note that the settings of HMS Client Server are set for the Windows user logged in; if you have other users on the computer, you will need to reset the settings once they've logged in.

Installation of HMS Client Server

  1. Download and extract https://downloads.numed.co.uk/software/iem/HMS-CSInstaller..zip.
  2. Run CDM212364_Setup.exe

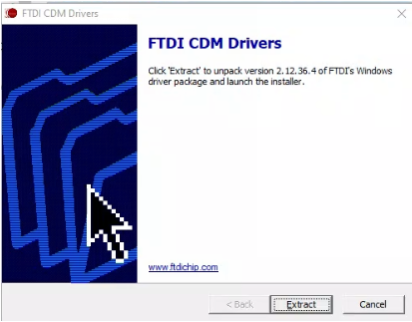

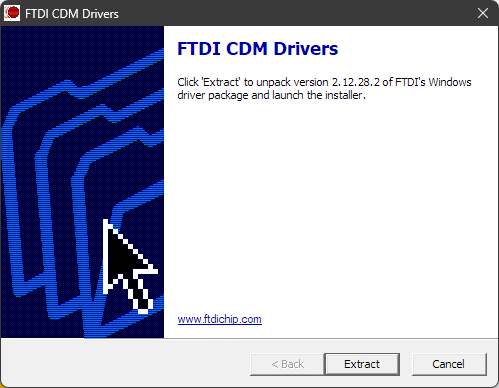

  3. Click Extract

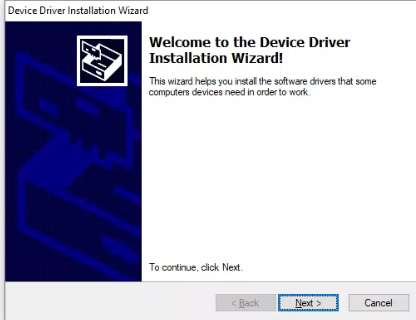

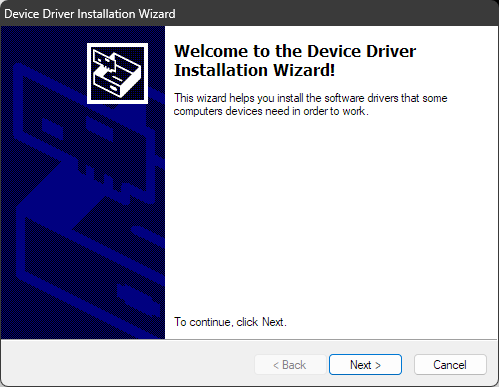

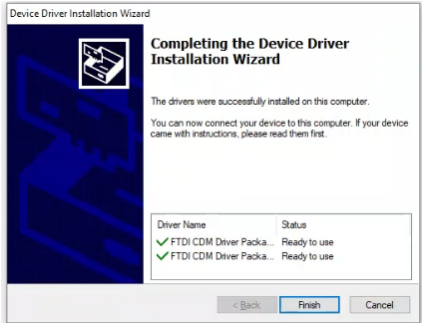

  4. Click Next
    Graphical user interface, applicationDescription automatically generated

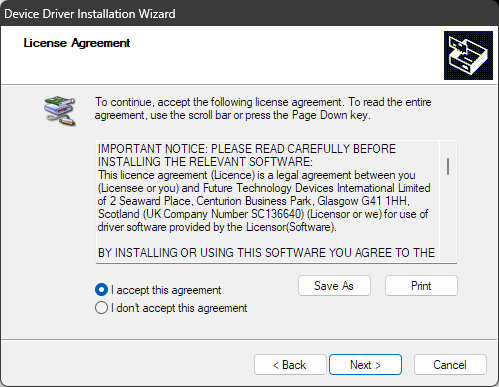

  5. Accept the agreement and click Next.

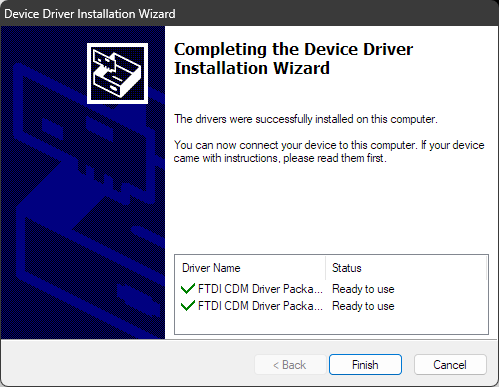

  6. Click Finish
  7. Go back to the HMS-CSInstaller folder and run setup.exe

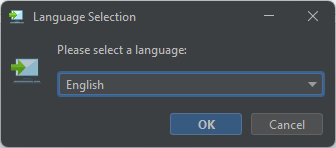

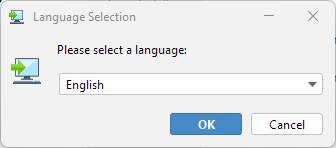

  8. Ensure English is selected and click OK
    A screenshot of a computerDescription automatically generated

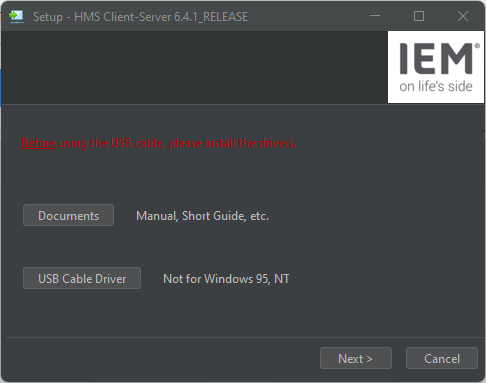

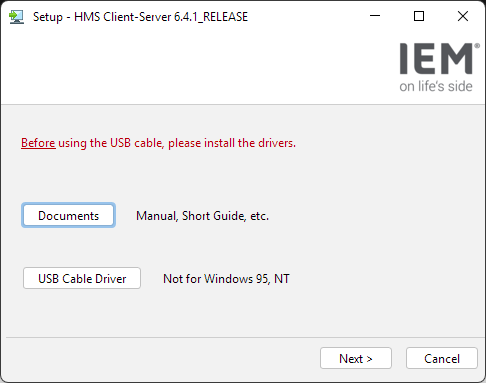

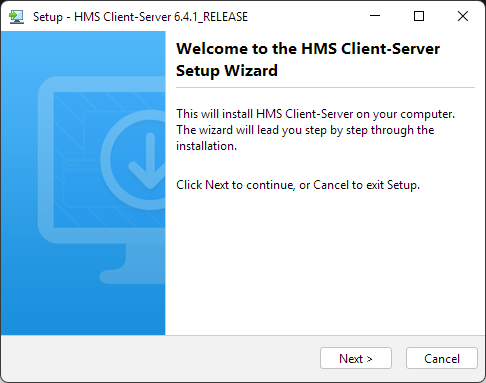

  9. Click Next – you will have already installed the relevant drivers in an earlier step above.
    A screenshot of a computerDescription automatically generated

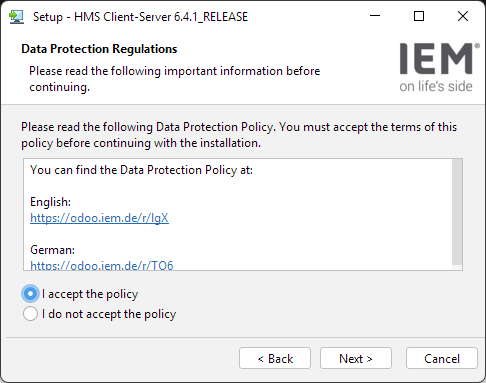

  10. Accept the policy and click Next.
    A screenshot of a computerDescription automatically generated

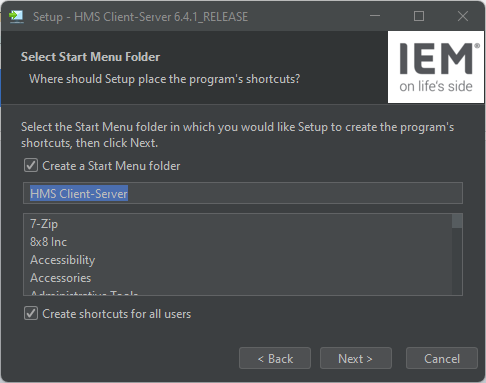

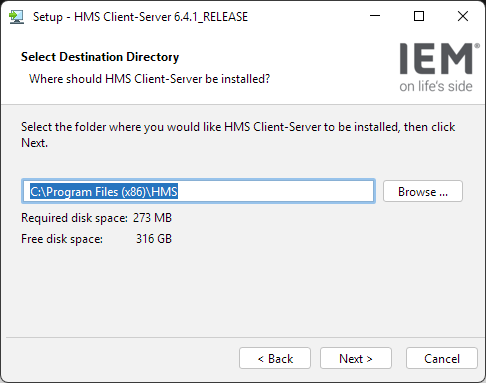

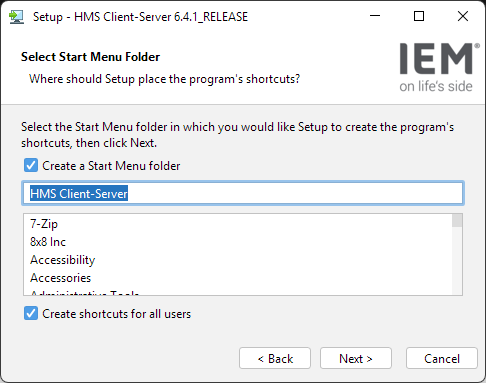

  11. Click Next
    A screenshot of a computerDescription automatically generated

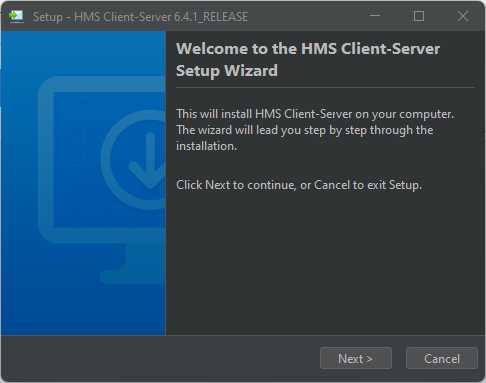

  12. Click Next
    A screenshot of a computer programDescription automatically generated

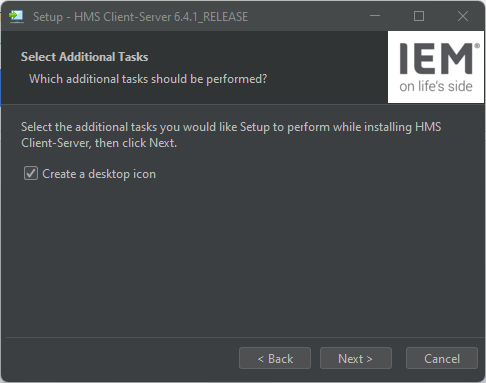

  13. Click Next
    A screenshot of a computer programDescription automatically generated
  14. Click Next
    A screenshot of a computer programDescription automatically generated

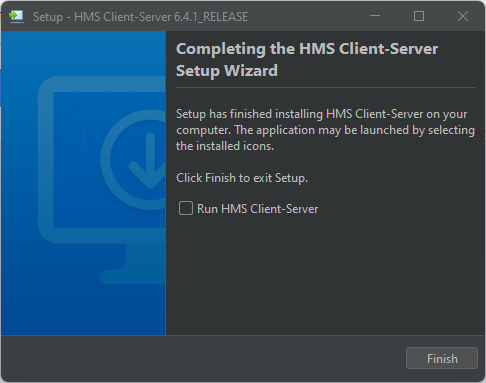

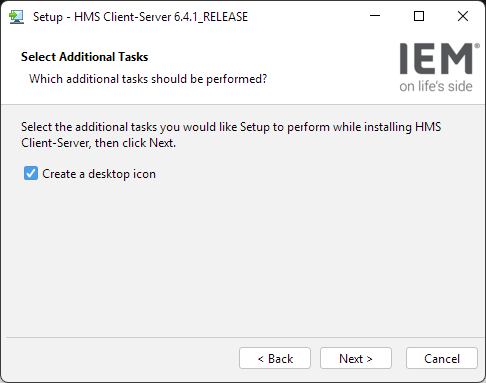

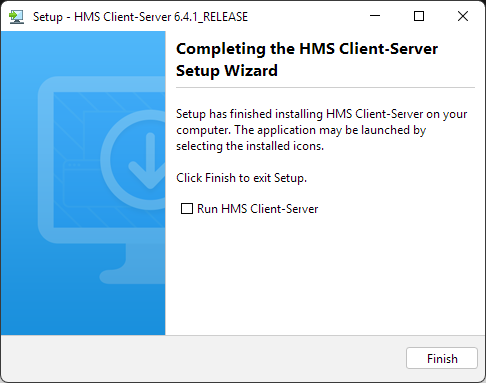

  15. Untick Run HMS Client Server and click Finish.

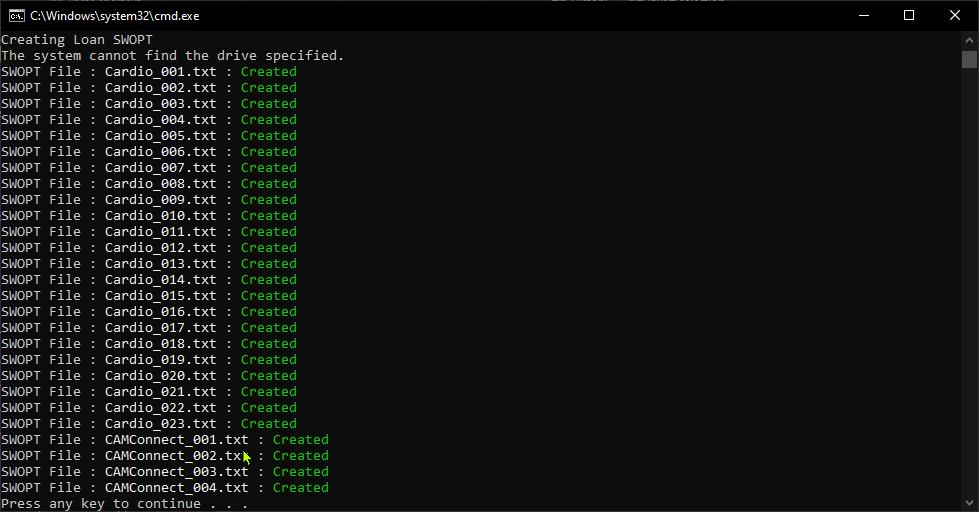

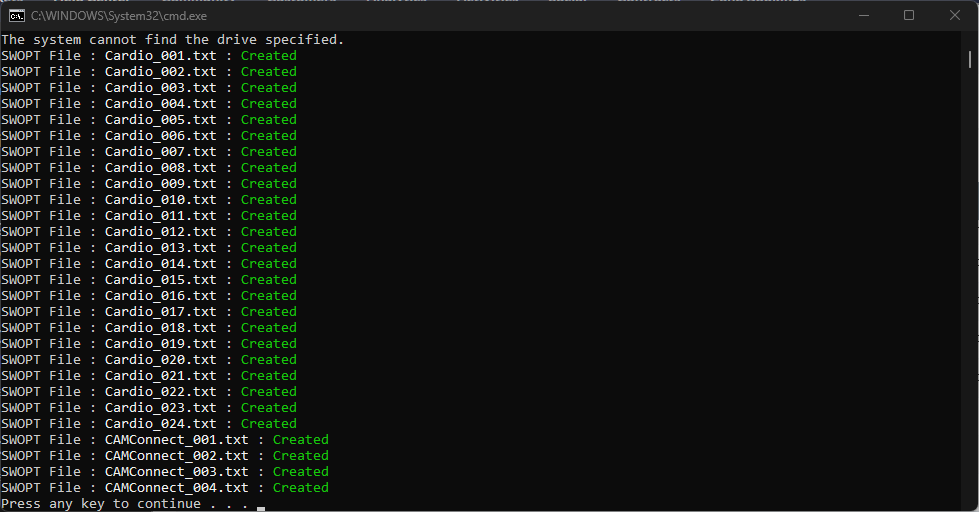

  16. Run SetPermissions_All v1.0.5.bat, press any key once finished.
    A screenshot of a computerDescription automatically generated with medium confidence

Configuration of HMS Client Server

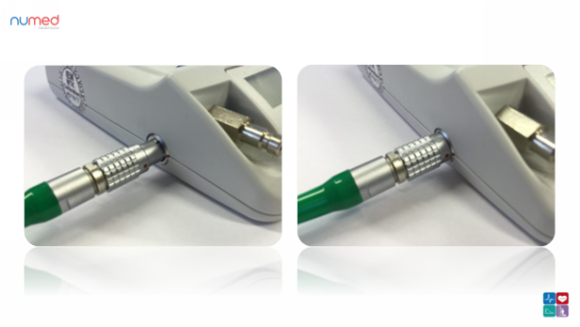

  1. Put AA batteries into the Mobil-o-Graph and connect the download cable, ensuring the red dot from the download cable lines up with the red dot on the Mobil-o-Graph; the other end should be plugged into the PC's USB slot.

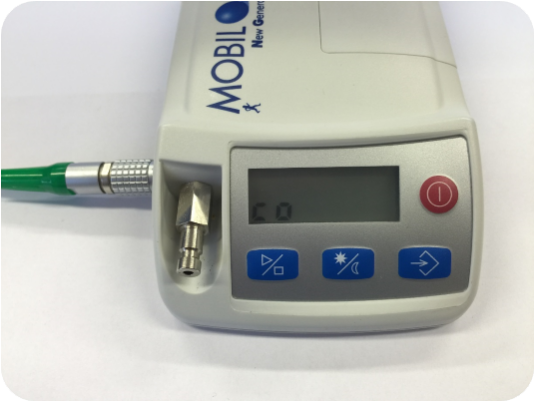

  3. Once the cable is connected, turn the Mobil-o-Graph on by pressing the red power button. It should display co on the screen.
  4. Open the HMS Client Server via the icon on the desktop.
    A grey square with white lettersDescription automatically generated

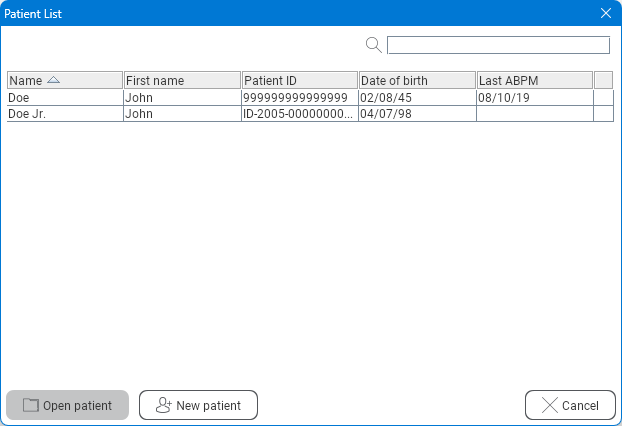

  5. Double-click on John Doe
    A screenshot of a computerDescription automatically generated

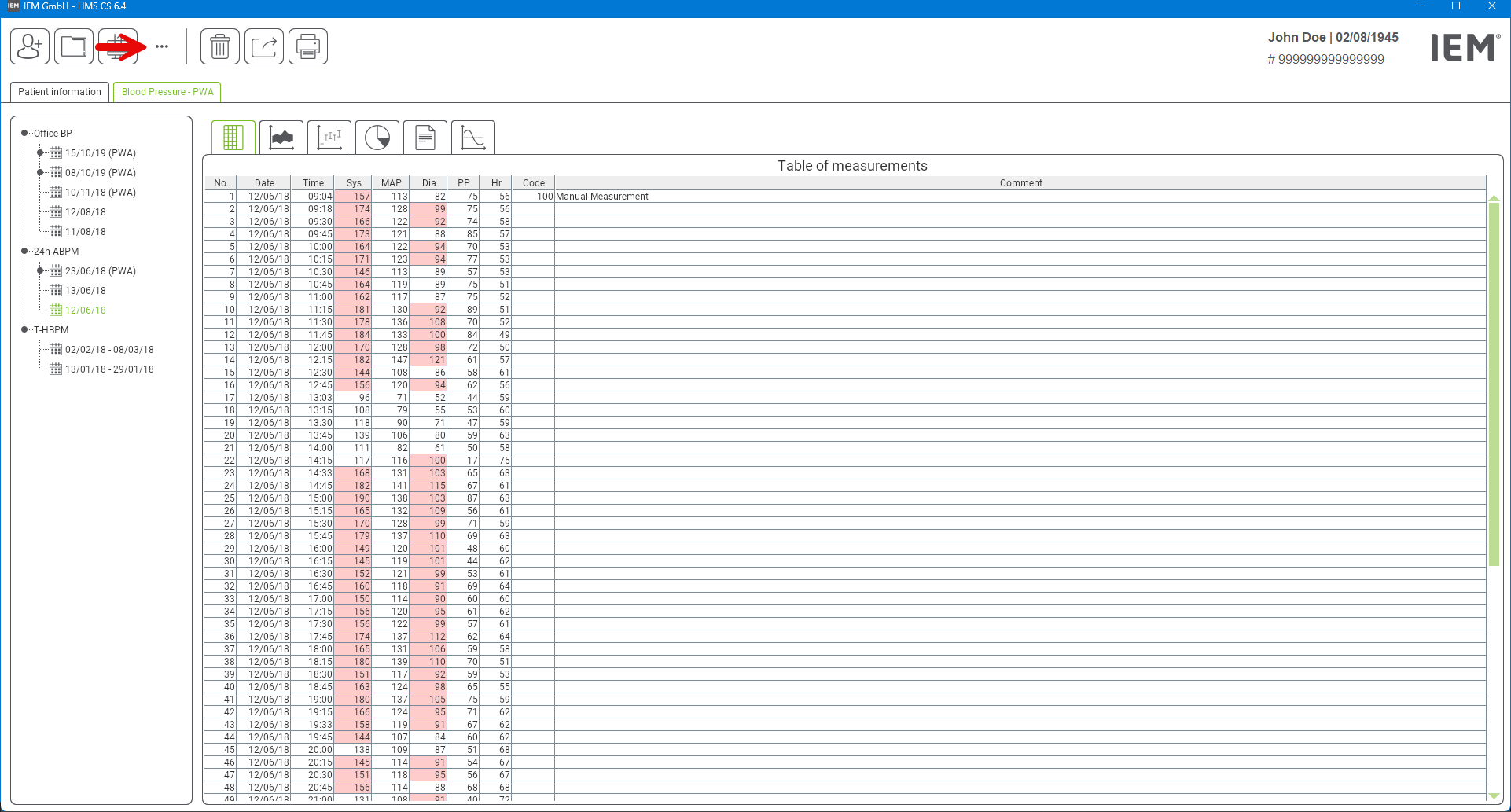

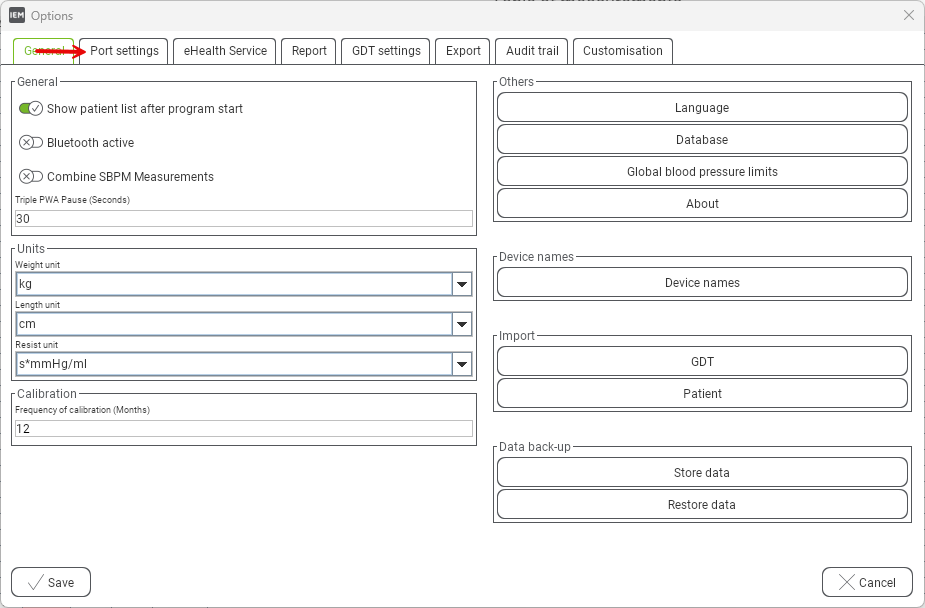

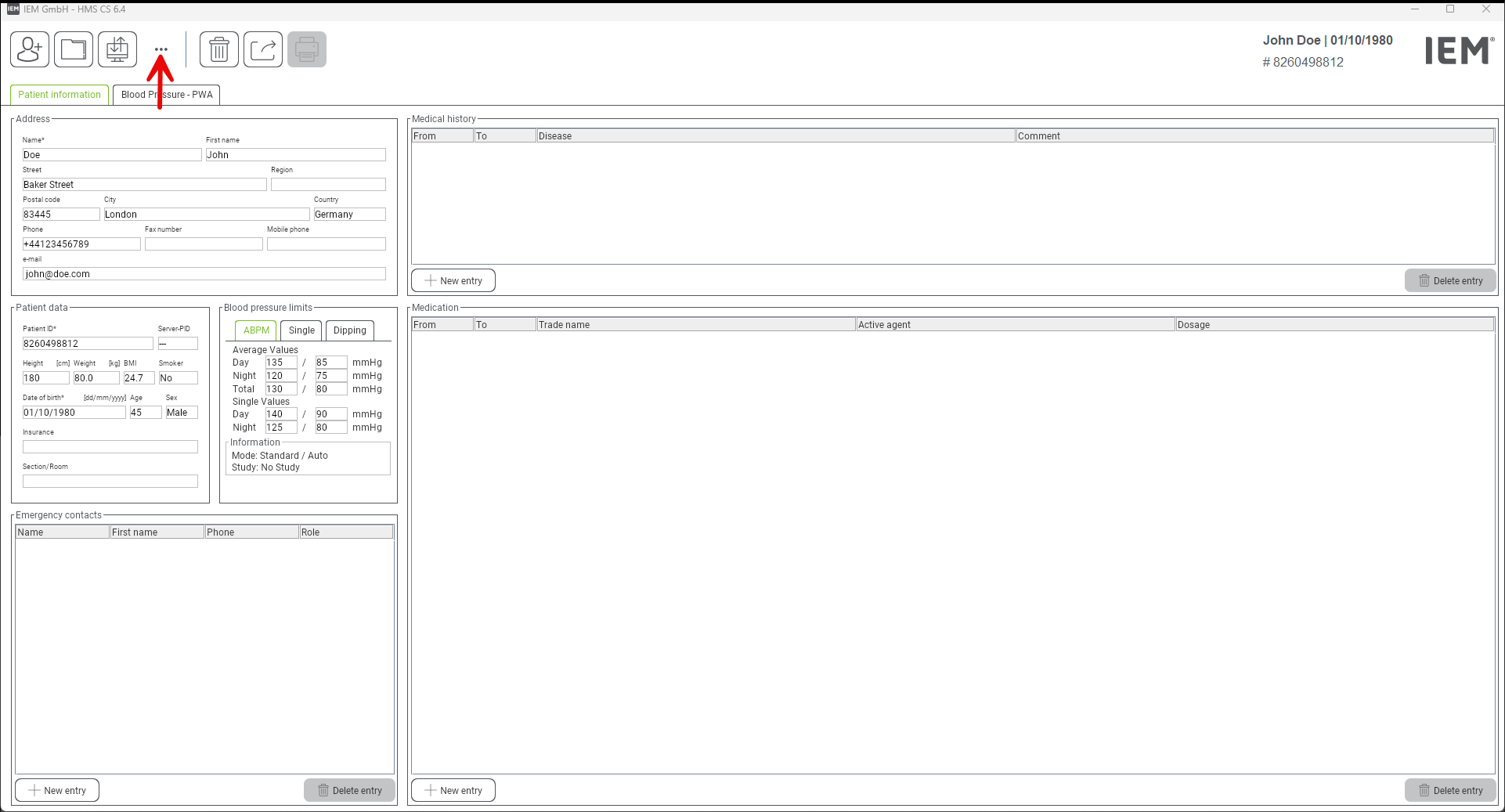

  7. Click the 3 dots at the top of the screen.
    A screenshot of a computerDescription automatically generated
  8. Click Port Settings

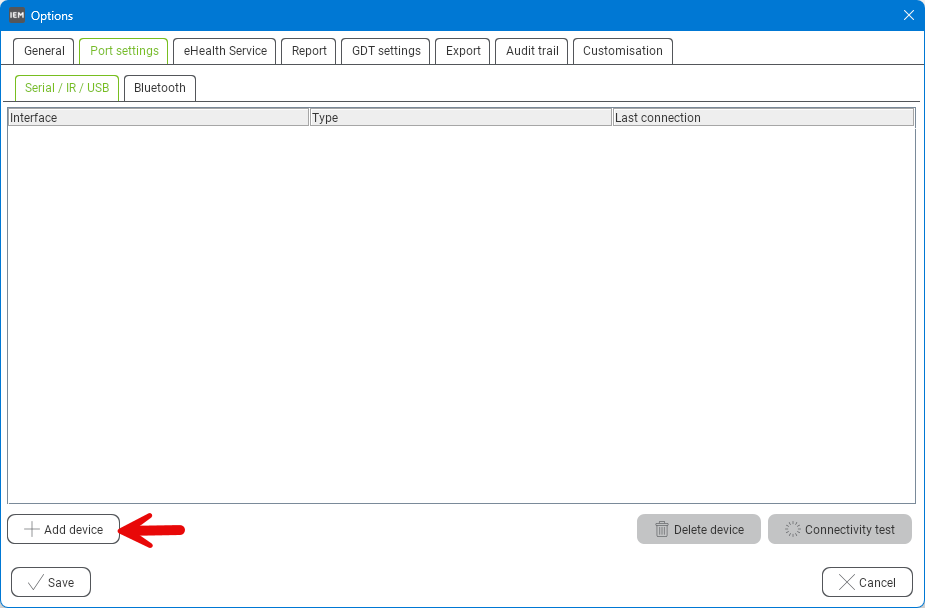

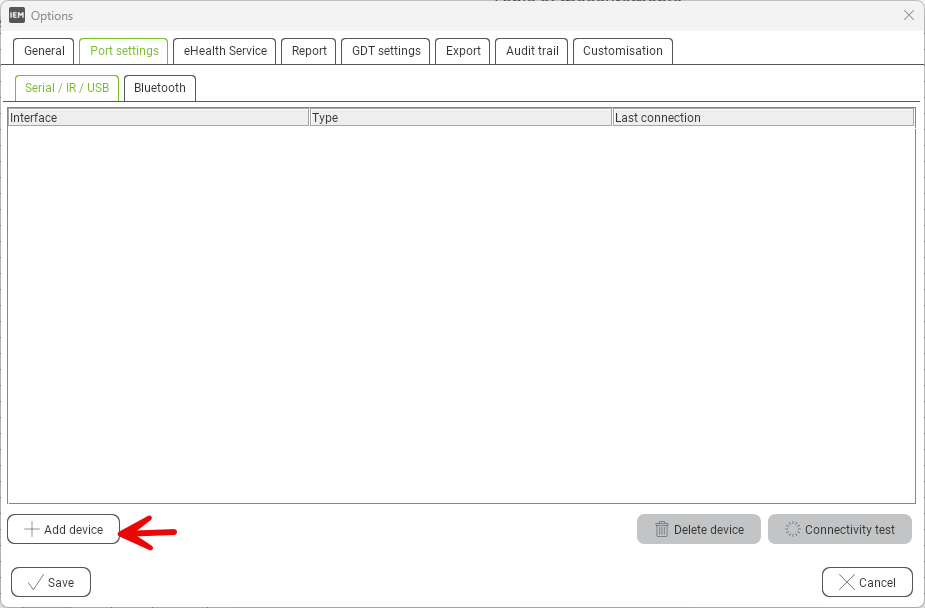

  9. Click Add device
    A screenshot of a computerDescription automatically generated

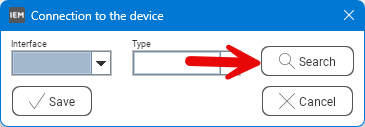

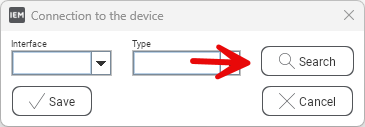

  10. Click Search
    A screen shot of a computerDescription automatically generated

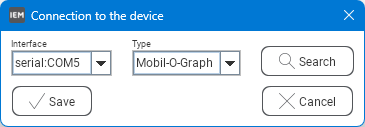

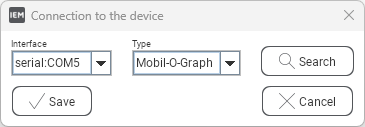

  11. Make sure it has detected your device and then click Save – please note your Interface may display a different COM number.
    A screenshot of a computerDescription automatically generated
  12. Click Save
    1. The port settings will need to be done for each Windows user
  13. Exit the HMS Client Server software
Your software is now fully configured and ready for use. If at any point you experience any issues, please call Numed support on 0114 399 0010 (option 3) or use the live chat feature on our website https://www.numed.co.uk/support
