All steps in this guide must be followed for your device to work correctly. The installation and configuration will take between 20 and 40 minutes to complete.

Installation of CS-104

1.  Download and run https://downloads.numed.co.uk/software/schiller/CS-104installer.msi - please note that this installer has no buttons to press and will just close automatically once done.

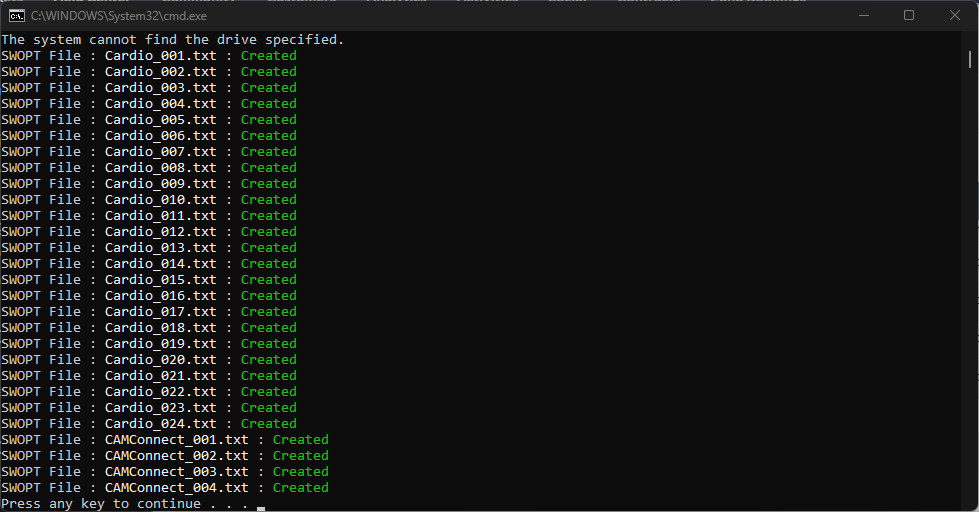

2. Run as administrator: SetPermissions_All.bat.



Requesting the License for CS-104

1. Open CS-104 from the desktop

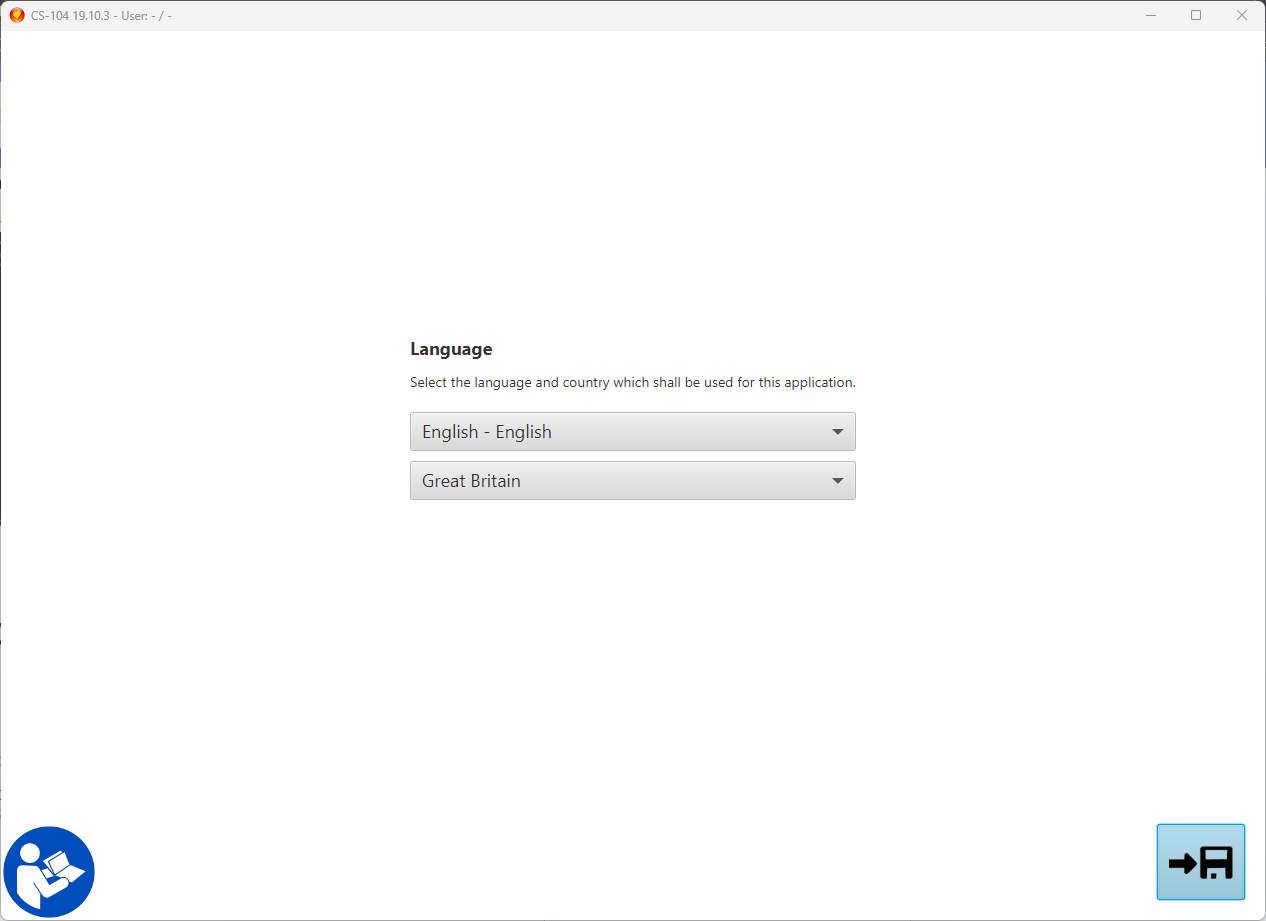

2. Confirm the language and region by clicking the save icon at the bottom right of the screen.

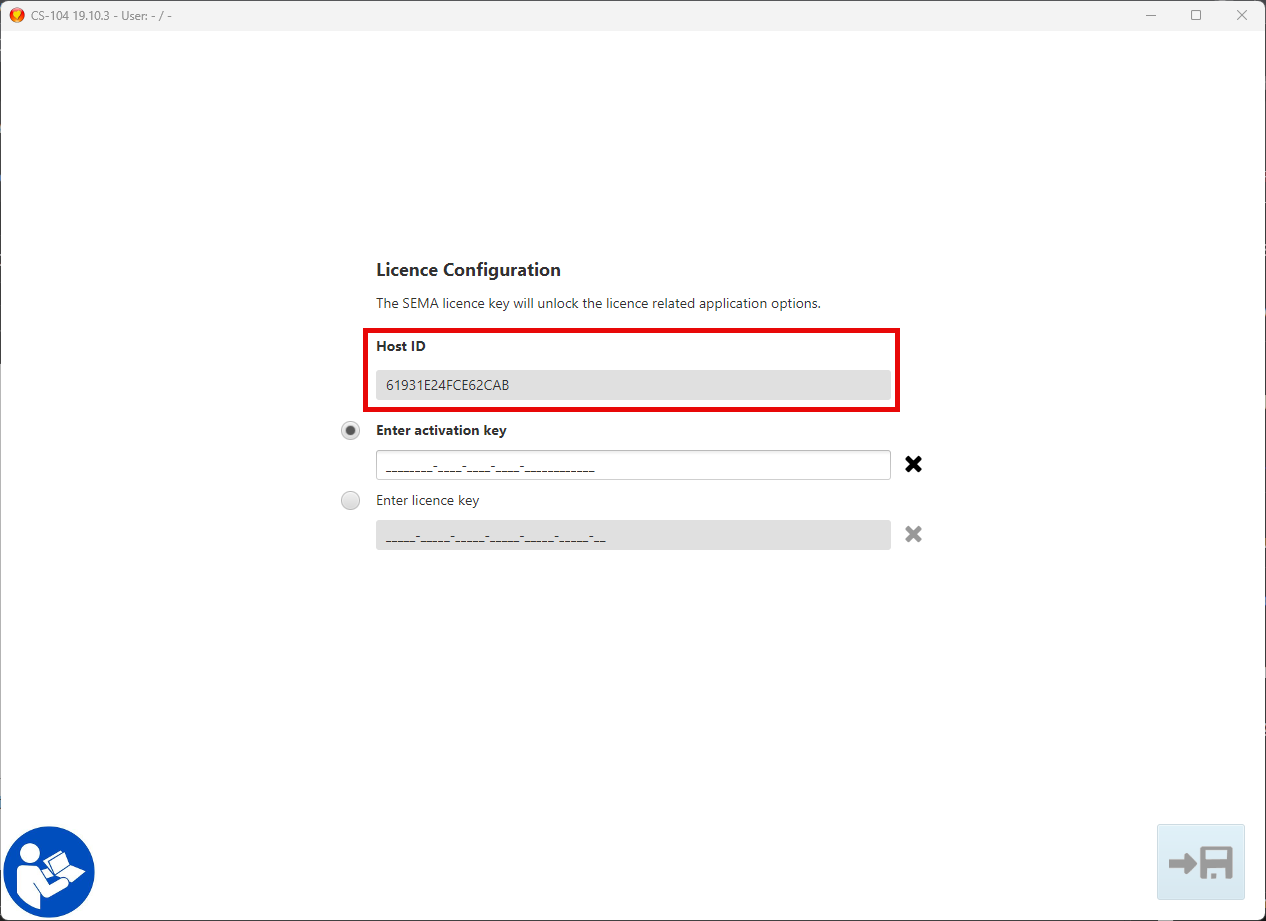

3. Make a note of the Host ID.

4. Click CS-104 License Request and complete the form with all requested details so we can issue your license key. License keys are issued manually, so there may be a delay after submission.

Configuration of CS-104

For the software to work as intended, all settings highlighted in the guide must be configured.

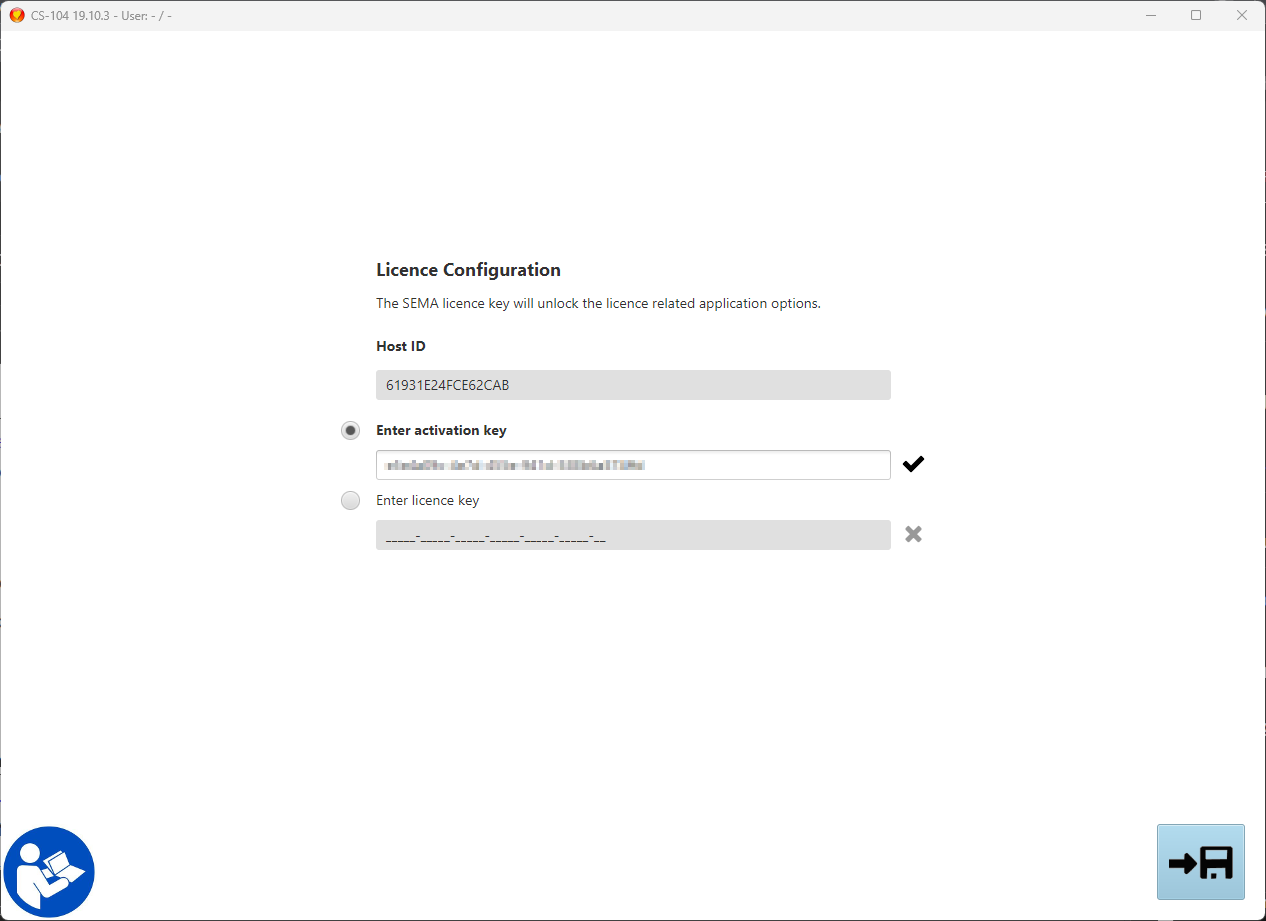

1. Once the license has been sent to you, copy and paste it into the field (either activation key or license key) indicated in the email. You should then get a tick to the right of the license key; then click Save.

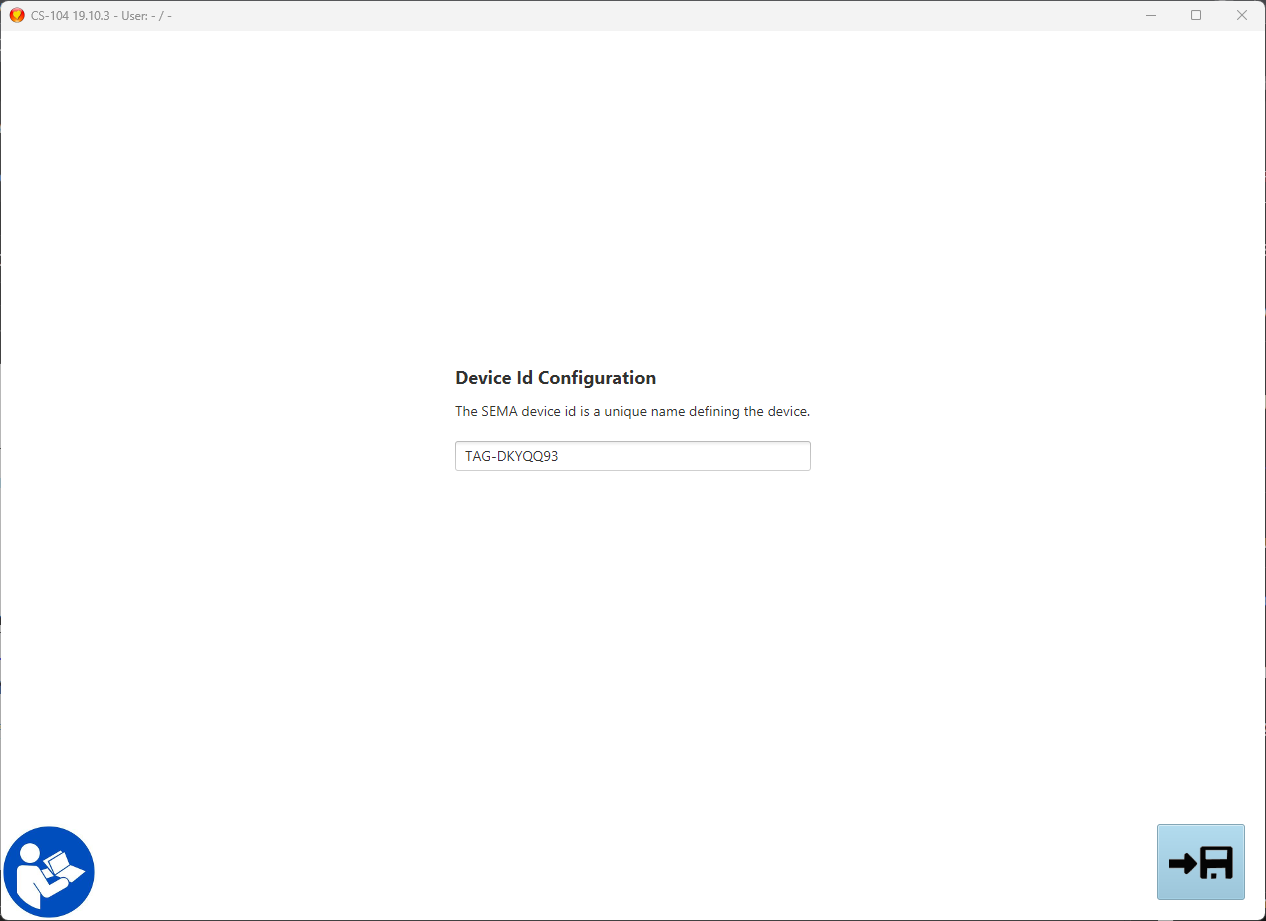

2. The PC name will display in the device ID. Now Click Save.



3.  Enter the following, then click Login:
   Username = default
   Password = system


4. Plug the ECG machine in, and the icon will appear in the top right corner once the device is recognised.  Not got the ECG machine? Please disregard this step.
5. Click on Settings


6. Select Layout and then change the Screen size to Maximized.


7. At the bottom left-hand side is a people icon ; click this to go into the user config area.


8. Click the plus symbol at the bottom of the Users box.

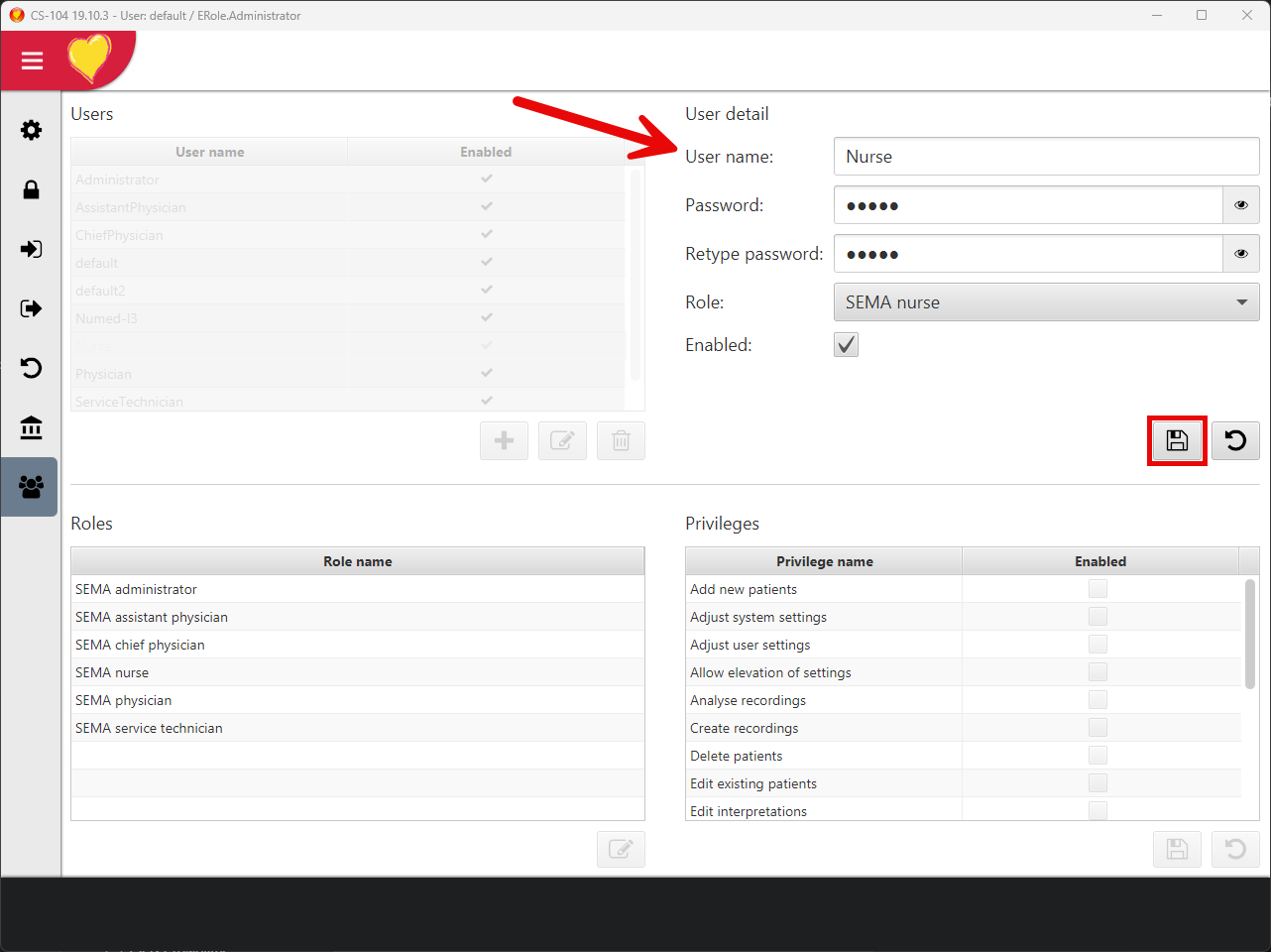

9. Create a new user for the integration when taking ECGs. Remember to save

1. We recommend the following.

1. User name = Nurse

2. Password = Nurse

3. Re-type password

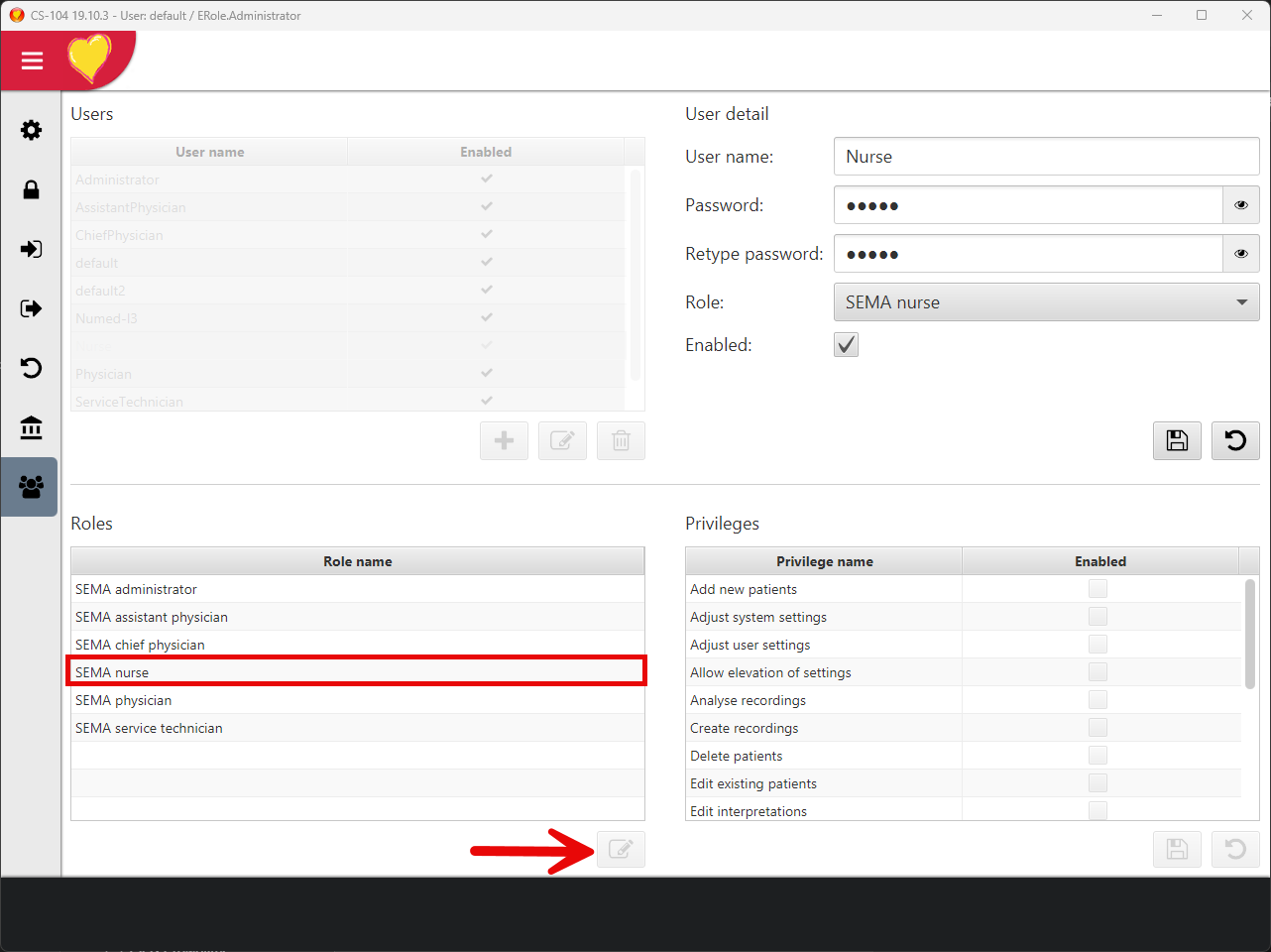

4. Role = SEMA Nurse (please note that the rest of the configuration is based on this setting)


10. In Roles, select SEMA nurse and click the edit button at the bottom.

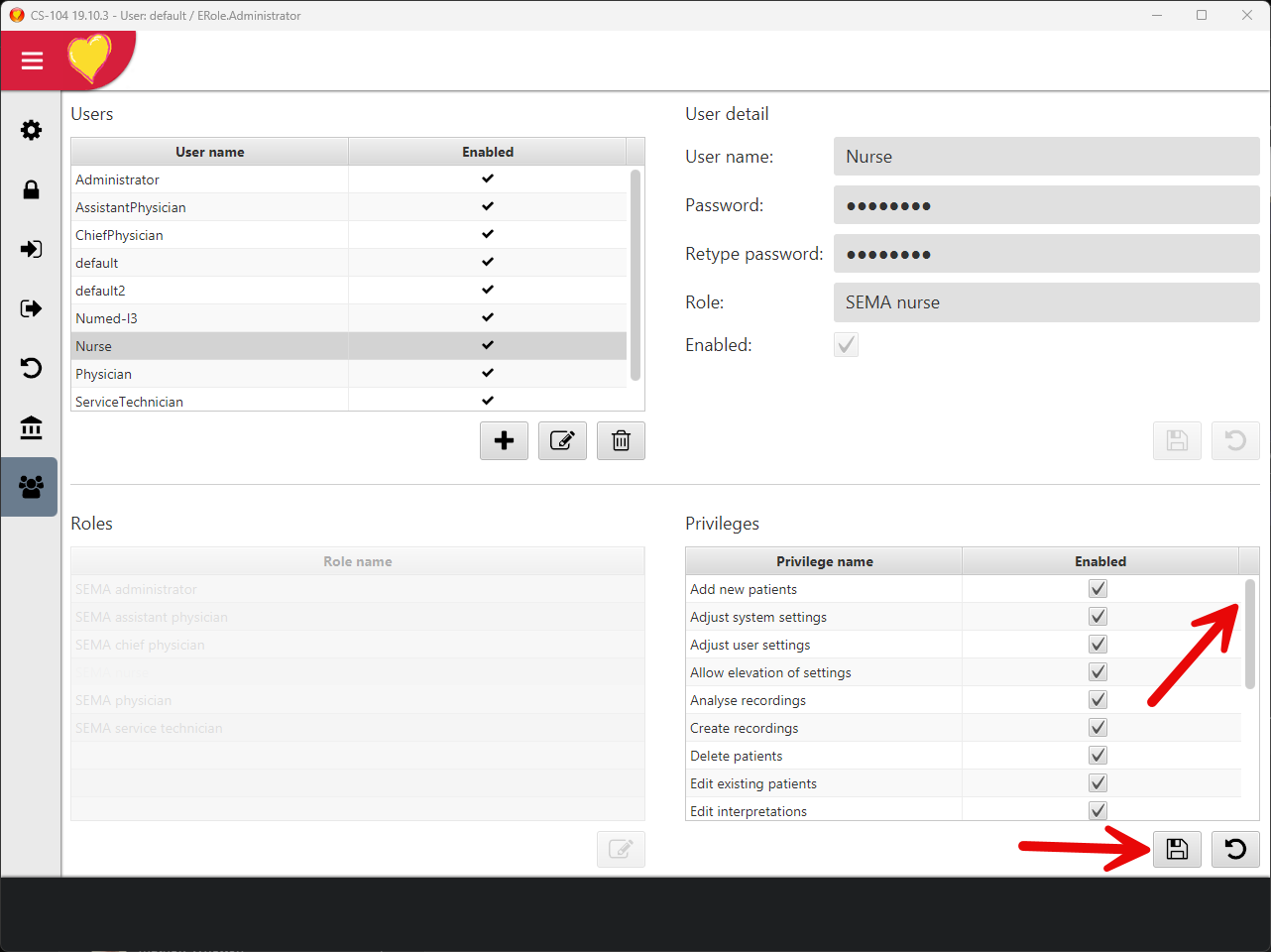

11. Under Privileges, ensure that all options are ticked, use the scroll bar to see all options, then click the Save icon.  - Tip: if you right-click on the word Enabled, it will allow you to select all options.


12. Close the software using the X.

13. Double-click on the CS-104 icon and log in with the new Numed-i3 account created in step 9 above

14. Click Settings


15. Go to Recorder view, select light and then configure as per below.


16. Once complete, click the person icon to the right of each setting
1. Whenever you make a change, you must click the Modify Setting icon.

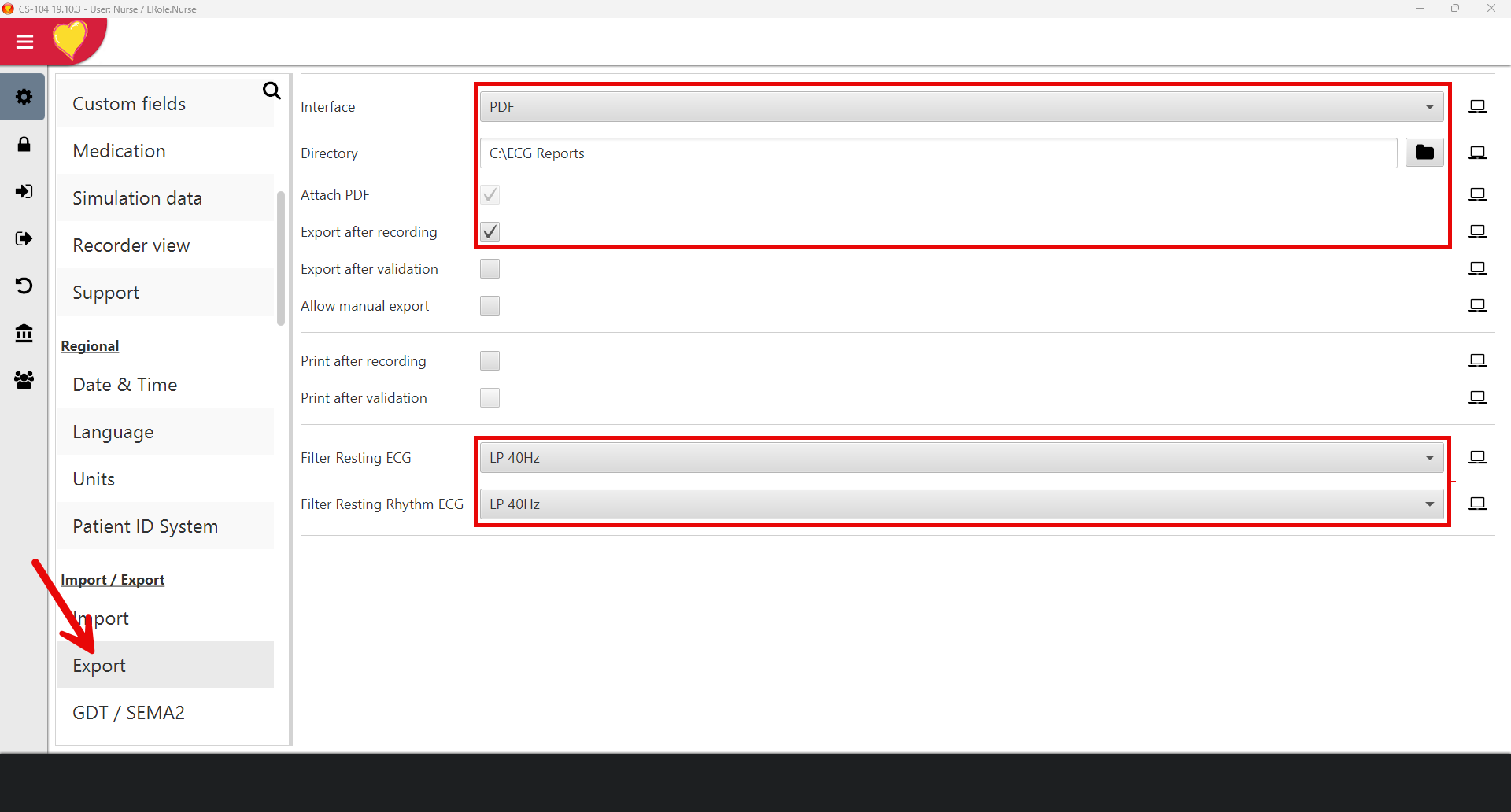

17. Go to Import/Export, select Export. Choose where you would like the ECG exported to; in the example, it is set to C:\ECG Reports. you can use  to navigate to the correct location.


18.  Security select Lock
19. Reports select Formats; remember to click the person symbol after each amendment.

1. Resting ECG


2. Resting rhythm


20. ECG select General


21. ECG select Analyzer view


22. ECG select Print output - note, if the PC is directly connected to a colour printer, set Grid Color to Rose


23. ECG select PDF output


24. Close the software down using the X.

25. Double-click on the CS-104 icon and log in again with the Nurse user

26. Click Patient search


27. Click Add New Patient


28. Create a dummy patient and then click Save patient.


29. Ensure the patient's name shows at the top of the screen, then click on Resting.


30. Once the acquisition screen appears, click the yellow heart menu  at the top left-hand corner.

31. Click Edit actions


32. Choose the tab below depending on if you've plugged the machine in or not. Remove items by clicking the X, then add items using the dropdown against that component.

    Settings with machine plugged in

    Settings without machine plugged in

    Settings with machine plugged in




    Settings without machine plugged in



33. Then click the yellow heart menu, then Save actions.


34. Close down CS-104
