SpiroConnect Spirometry System with Integration Installation Guide
This guide will show you how to install and configure the Intelligent Integration Interface for the SpiroConnect Spirometry Machines. If you need the license keys, please request them by going to Numed Installation Guides and Request Licenses. You can download a PDF copy of this guide at the bottom of the page.
Configuring SpiroConnect Data Manager

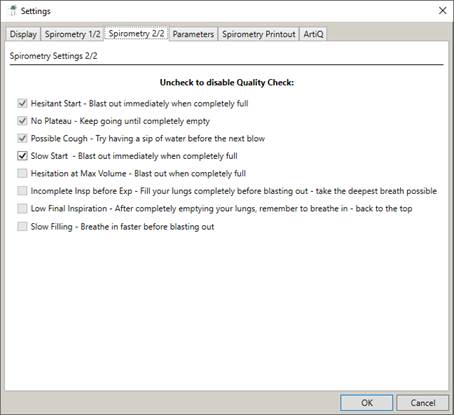

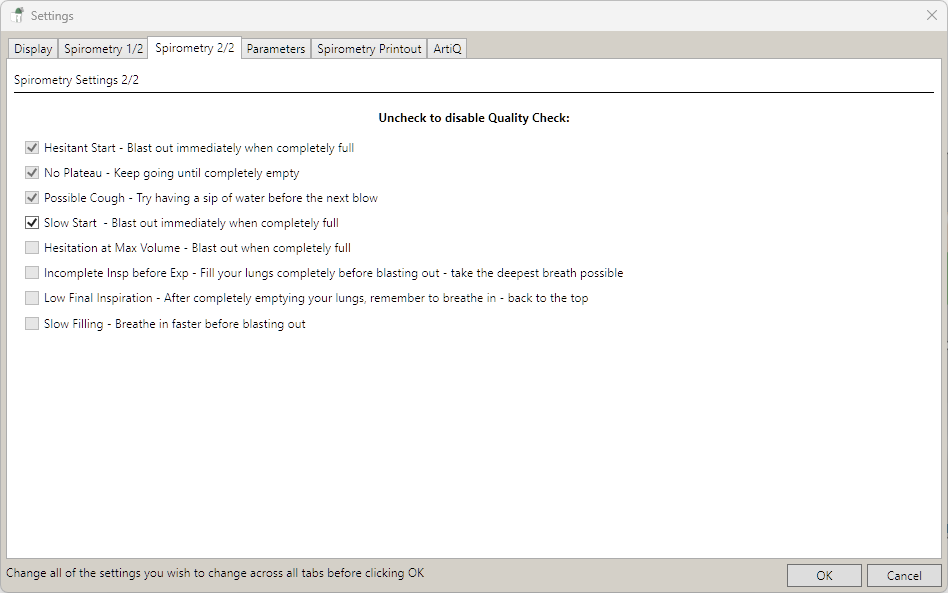

20. Spirometry
2/2 to
TPP SystmOne
EMIS Web

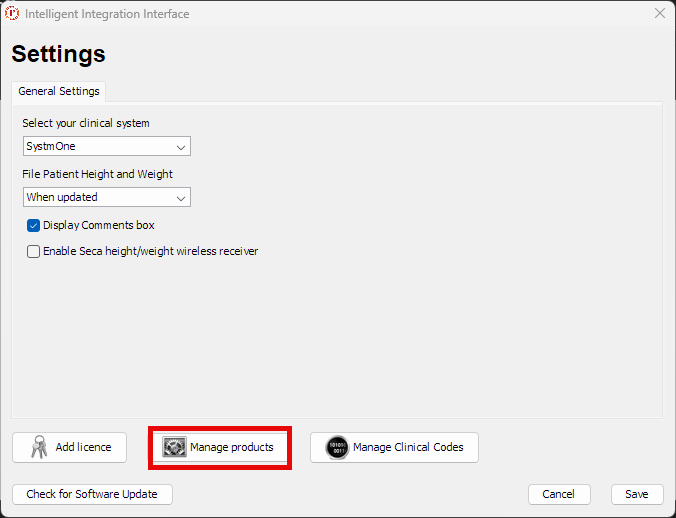

32. Click Manage products

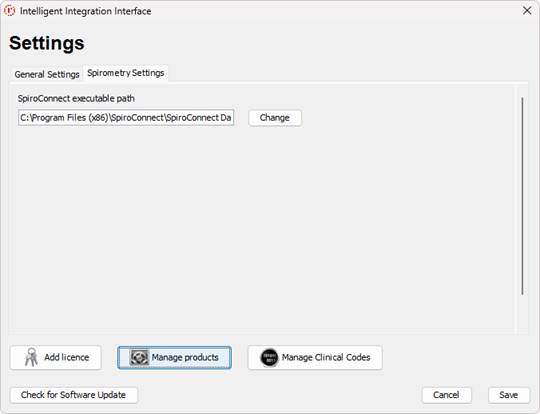

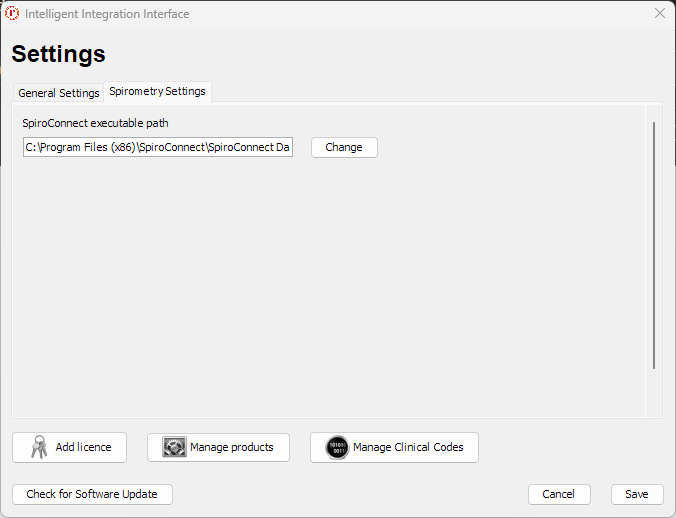

34. Select
Spirometry Settings and ensure it matches, then click Save
Your software is now fully configured and ready
for use if at any point you experience any issues please call Numed support on
0114 399 0010 (option 3) or use the live chat feature on our website https://www.numed.co.uk/support
If ArtiQ has been purchased from Clario the following 2 steps will be
needed.
Installation of the Intelligent Integration Interface (I3)

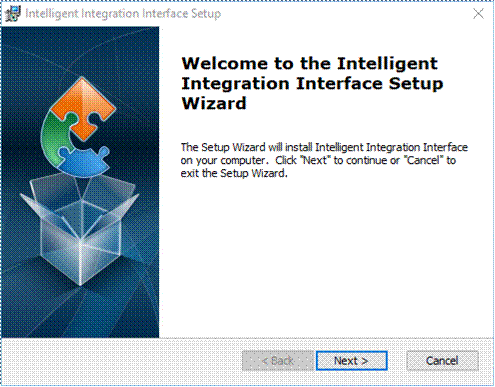

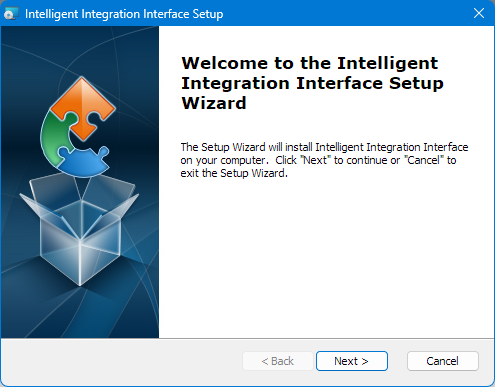

1. Download and extract https://downloads.numed.co.uk/software/i3/I3installer.zip2. Run I3installer.msi then click Next

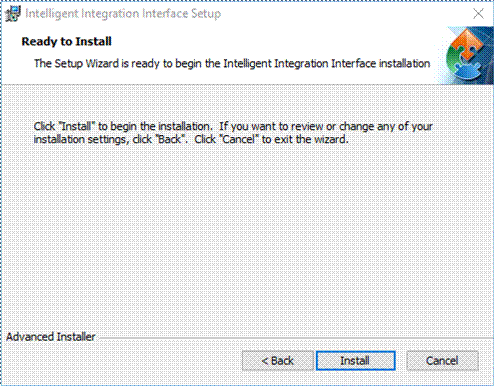

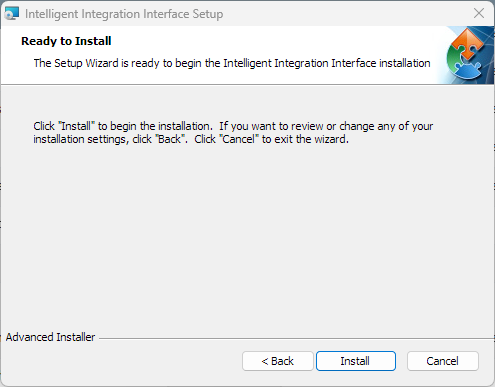

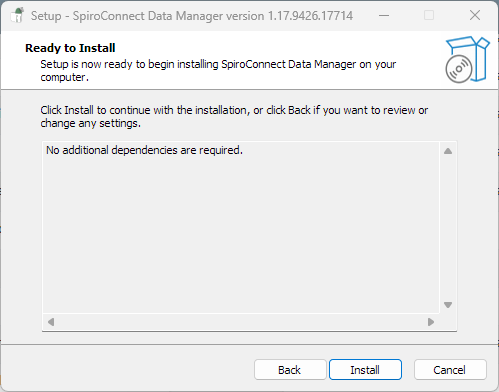

3. Click Install

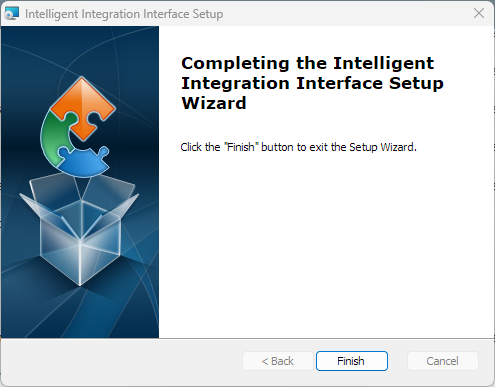

4. Click Finish
Installation of SpiroConnect Data Manager
5. Download and extract https://downloads.numed.co.uk/software/medchip/SpiroConnect.zip
6. Run as Administrator SpiroConnect.exe

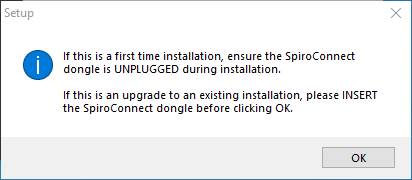

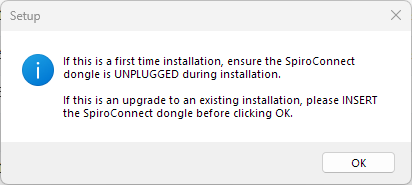

7. Confirm that the wireless dongle
isn’t connected to the PC and click OK

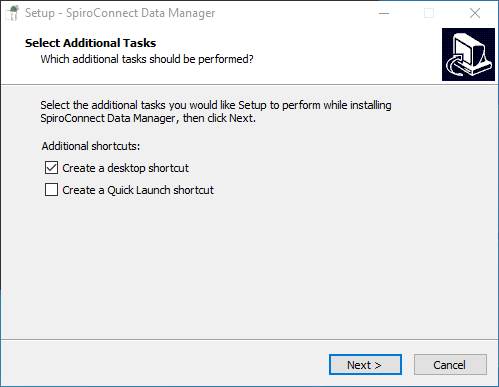

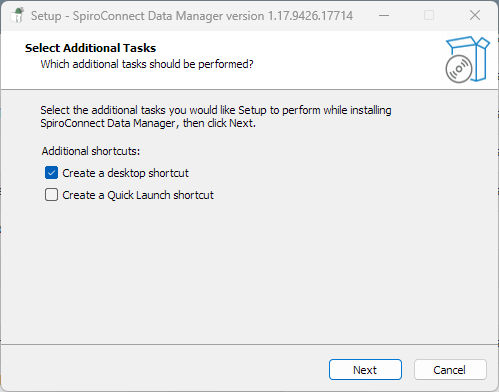

8. Put a tick in the desktop shortcut box
and click next

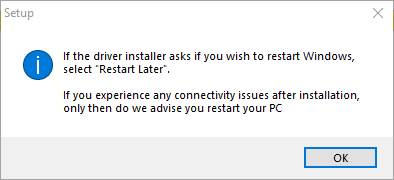

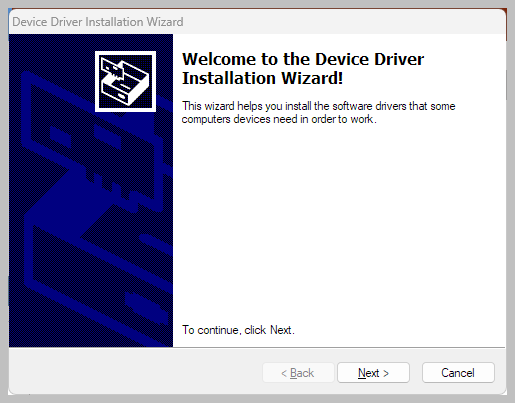

9. Click
OK

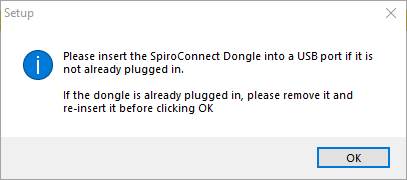

10. If available, plug the dongle into the PC and click OK

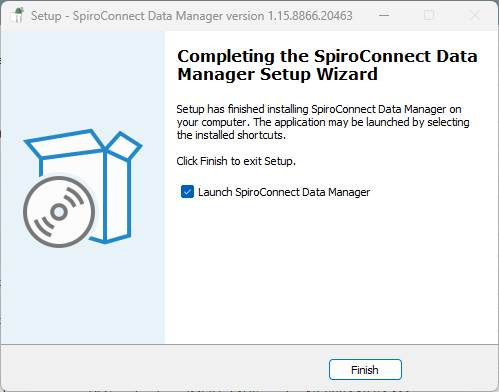

11. Click
Finish
Configuring SpiroConnect Data Manager

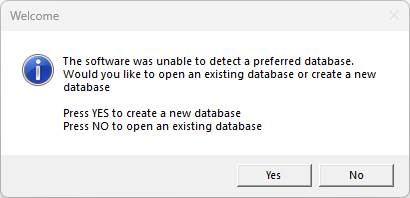

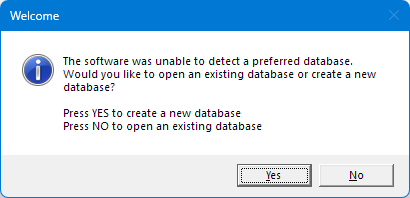

12. Click Yes
to create a new database

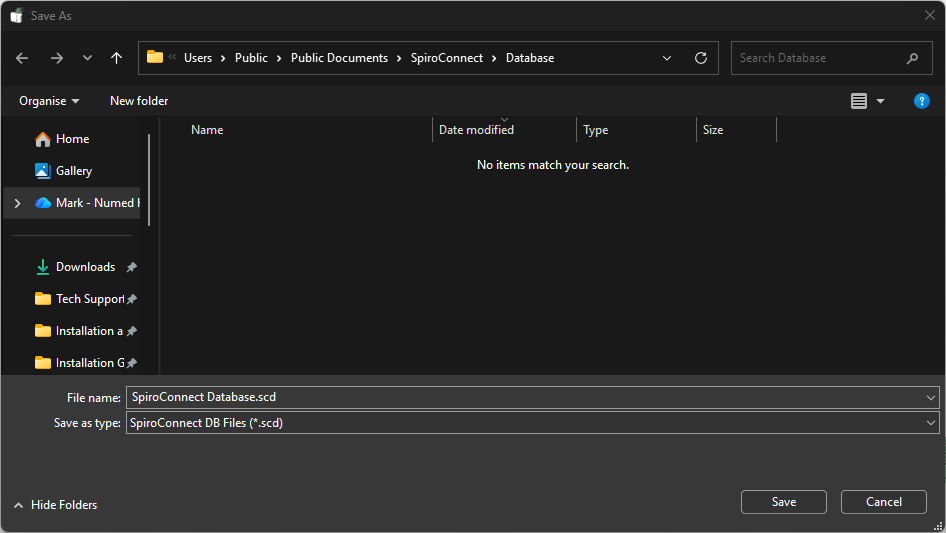

13. We recommend
that the database is saved in the default location, then click Save

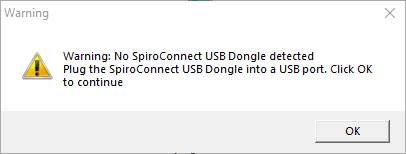

14. If you get
this message, it means that the dongle hasn’t been inserted into the PC,
proceed by clicking OK

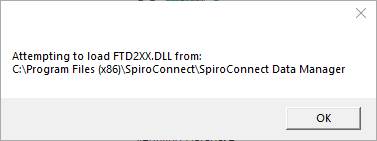

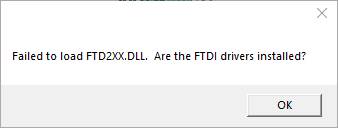

15. As step 15, click OK
16. As step 14, click OK – Please note if the dongle was plugged in, steps 14 to 15 can be
skipped

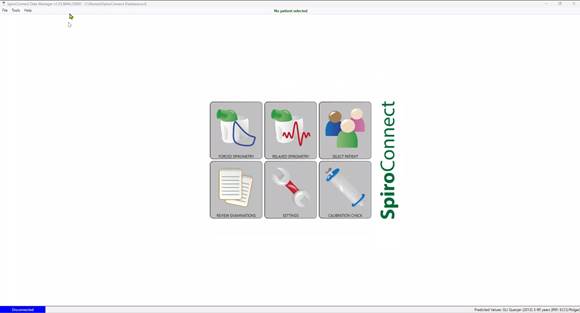

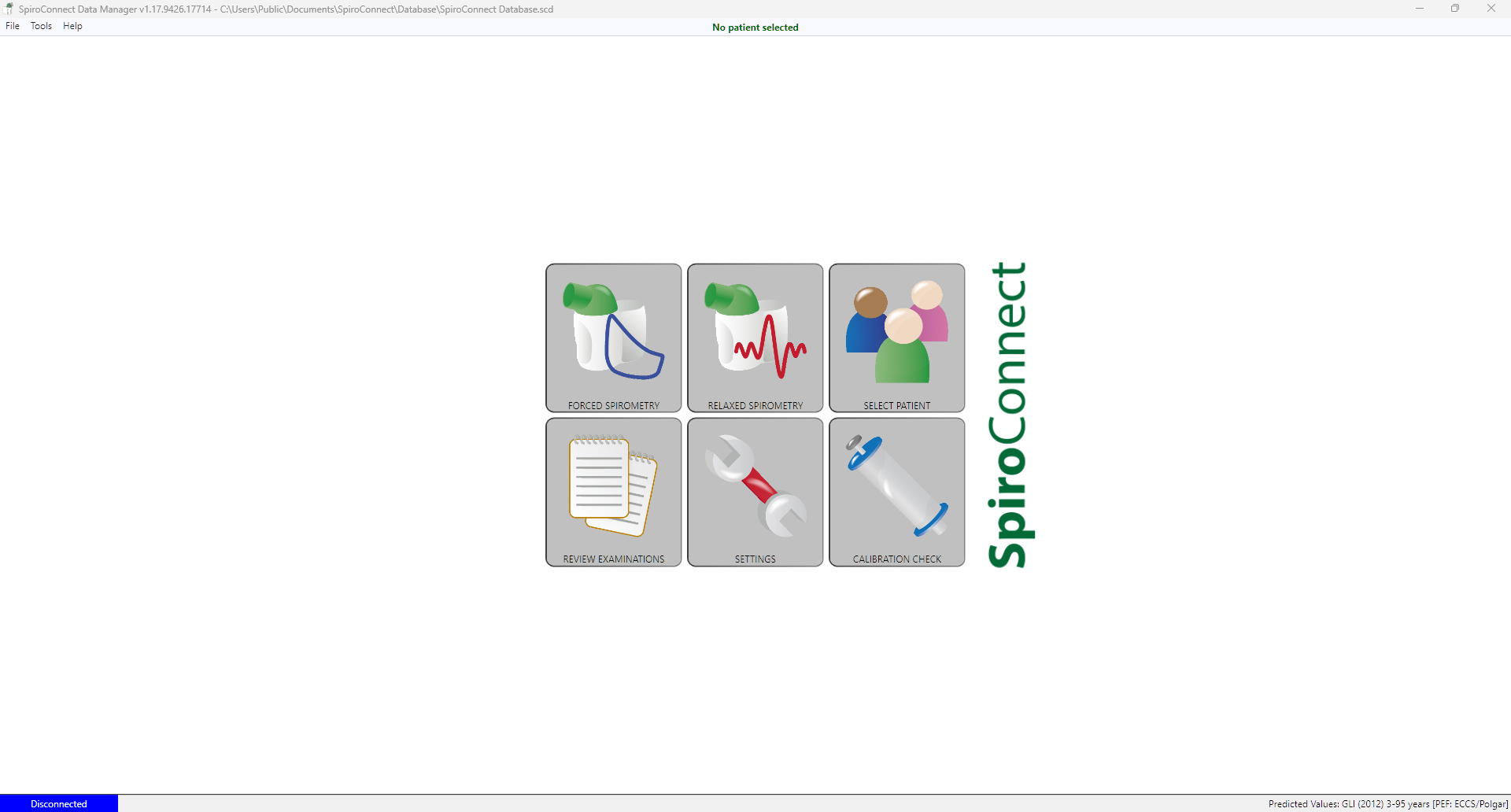

17. Click
Settings

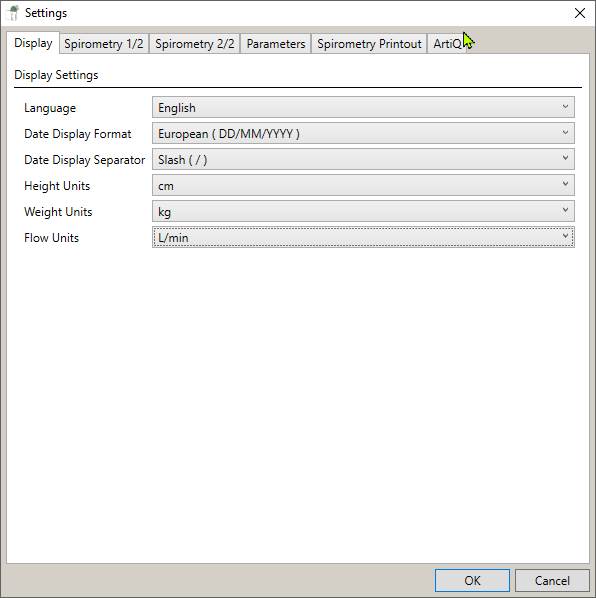

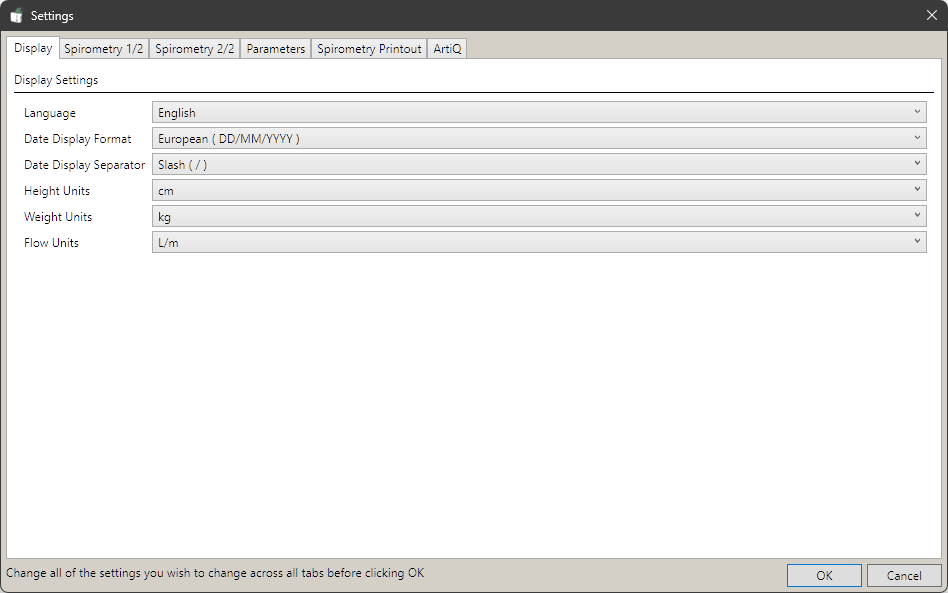

18. Set
display as below

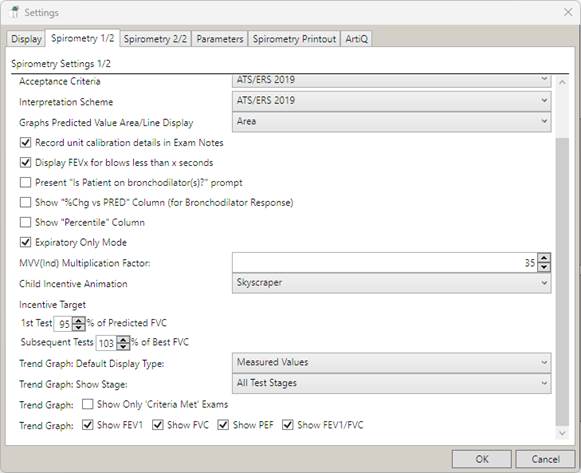

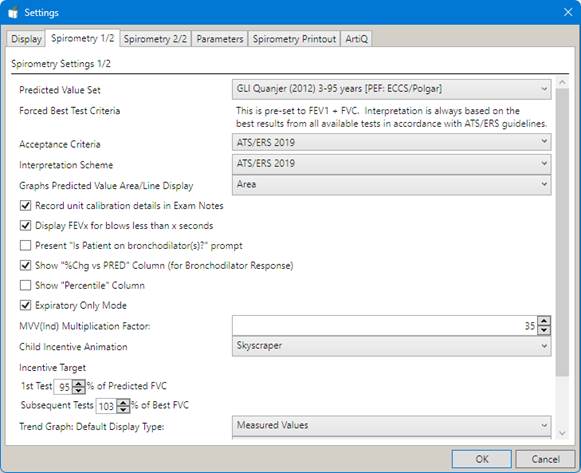

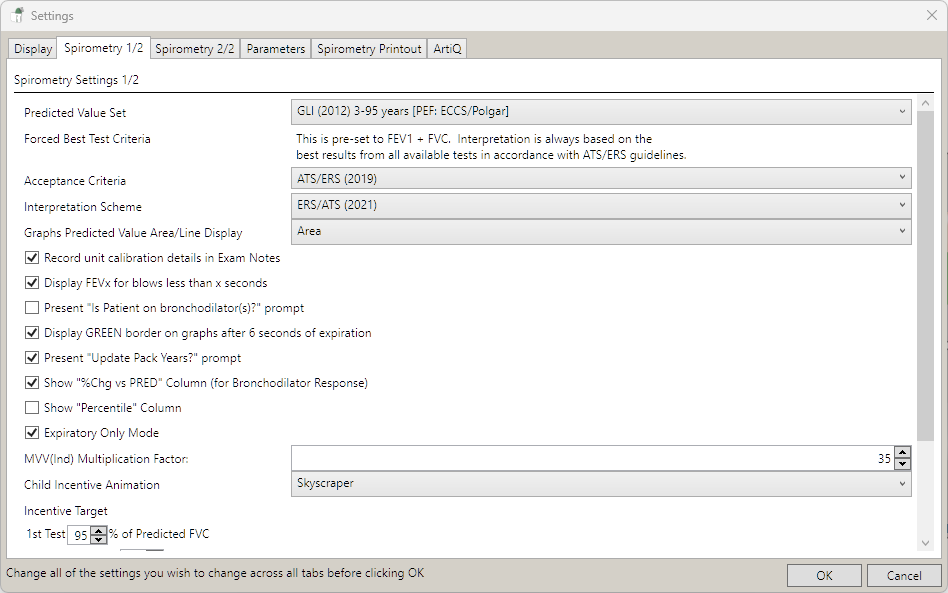

19. Set
Spirometry 1/2 to

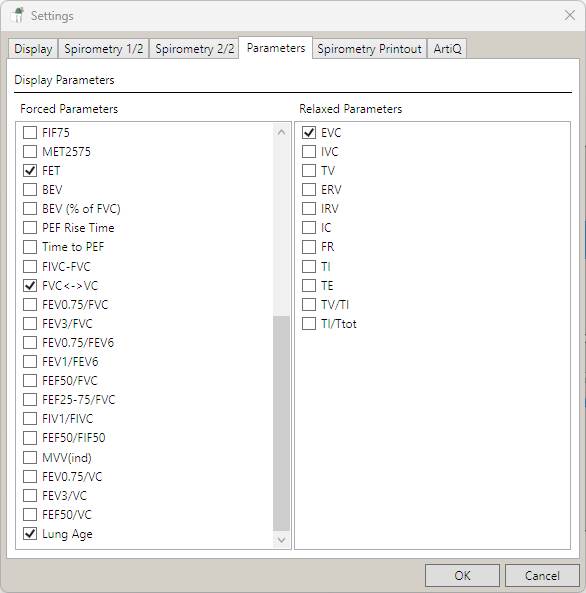

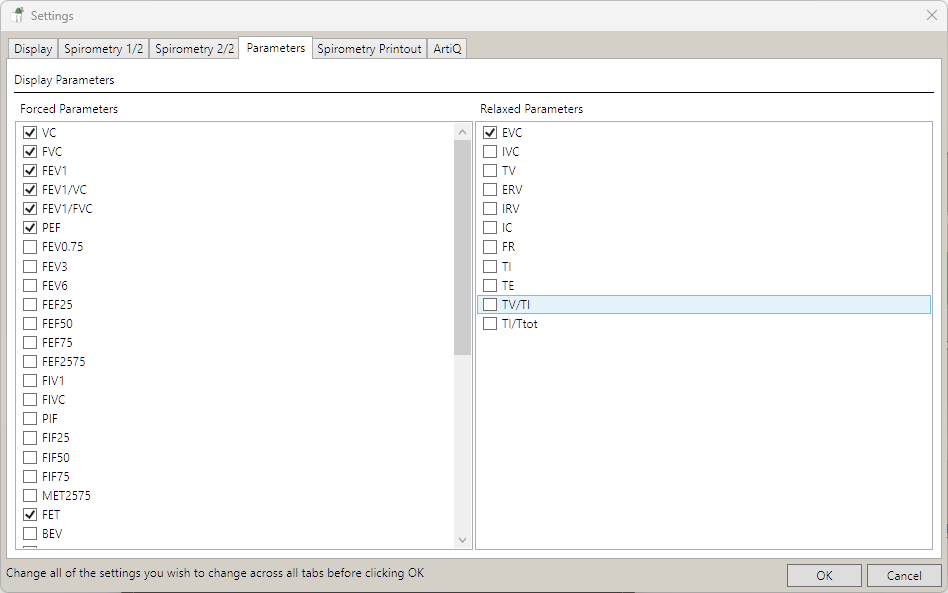

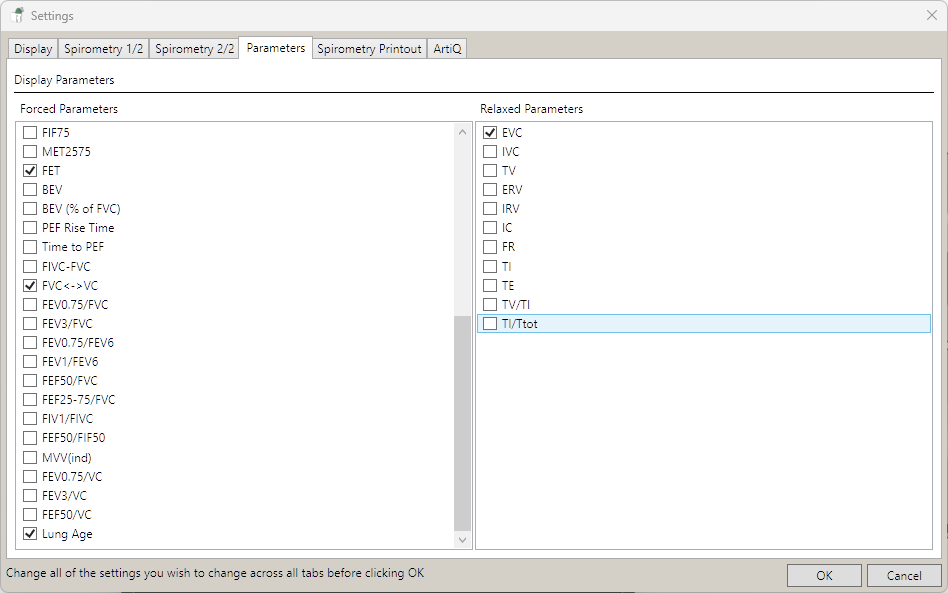

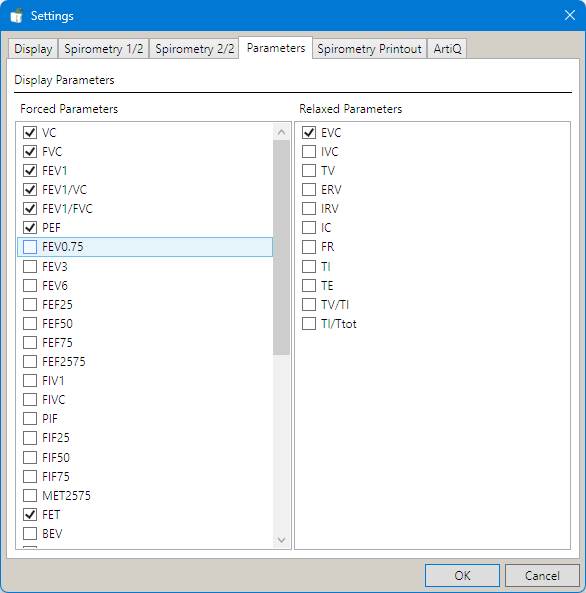

21. Set
Parameters to

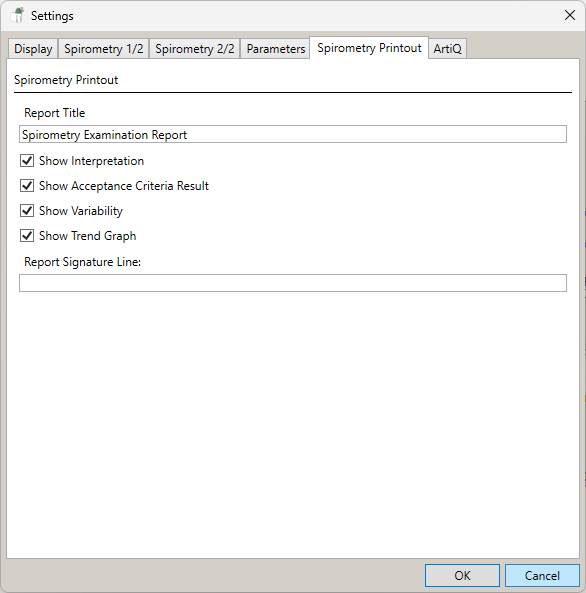

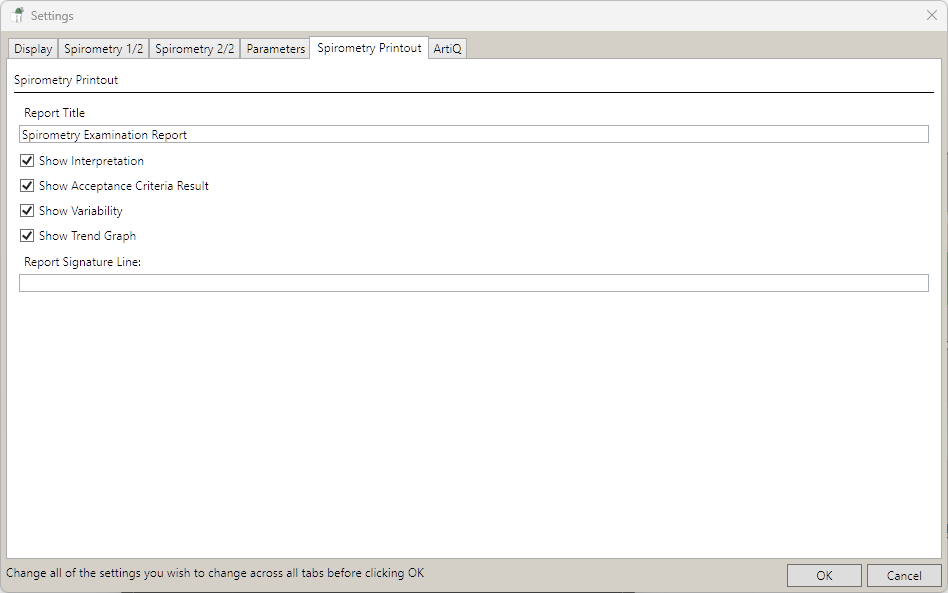

22. Set
Spirometry Printout, the Report Title and Signature can be set to customer
requirement and click OK when done.
23. If ArtiQ has been purchased, please go to the bottom of this article for

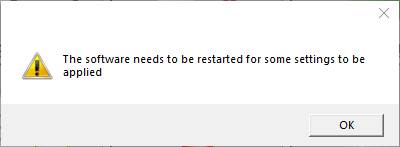

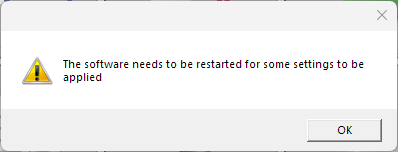

additional settings 25. If you did
make any changes you will get the following message click OK

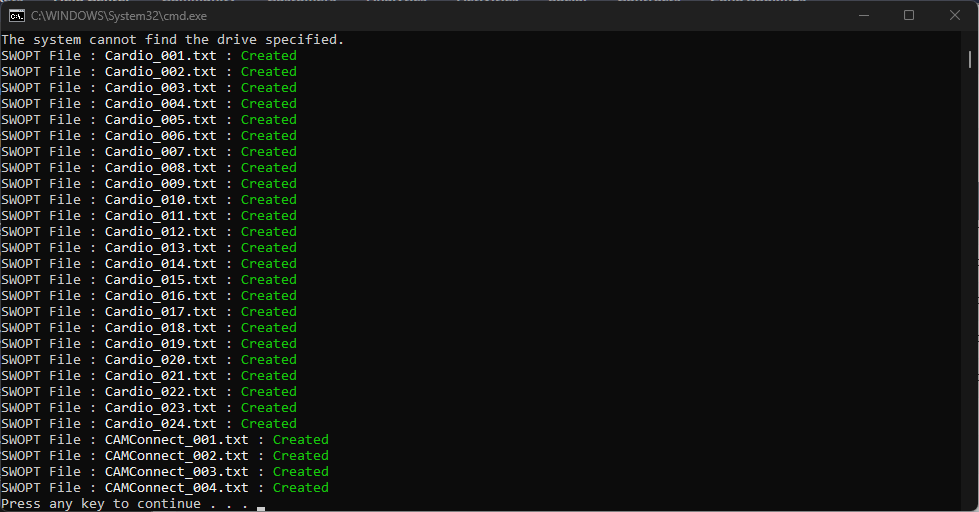

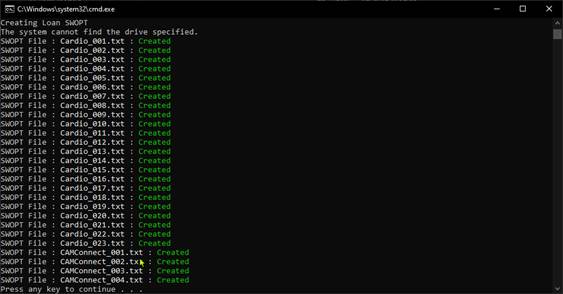

26. Run SetPermissions_All
v1.0.5.bat, press any key once finished

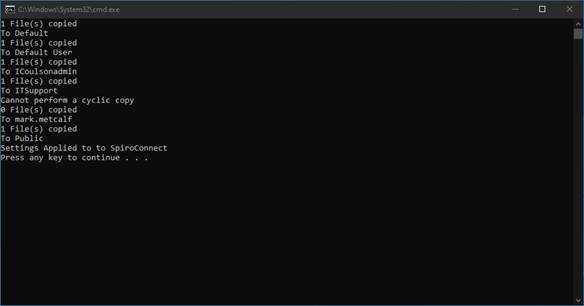

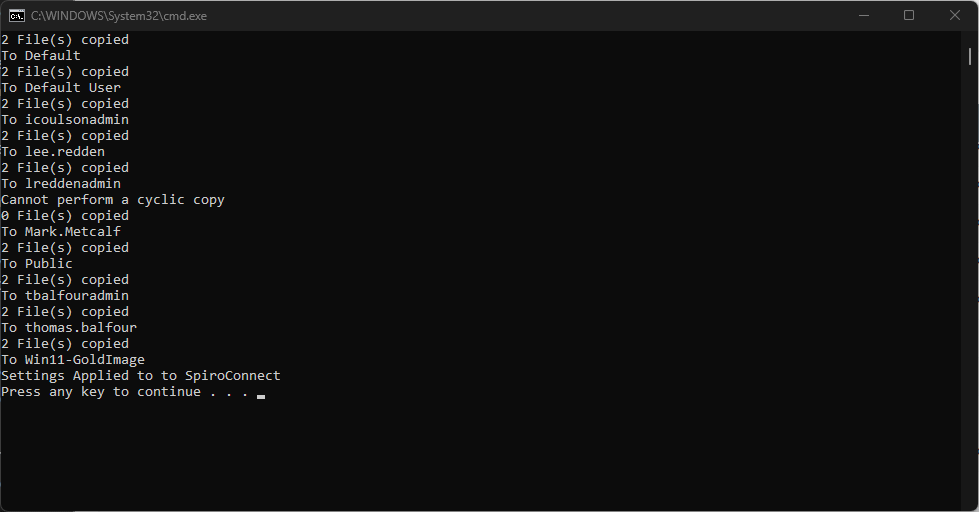

27. Run the SpiroConnect
- Copy Settings to All Users (Run as Administrator).bat. This will then copy
the settings to all Windows User Accounts on that PC. Press any key when done
Configuring Intelligent Integration Interface

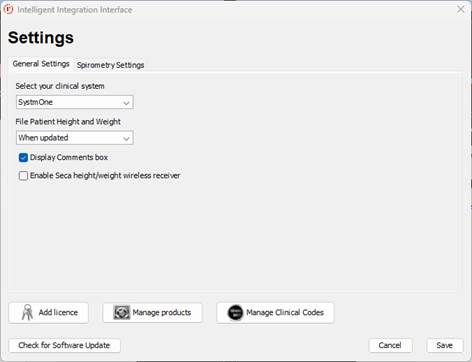

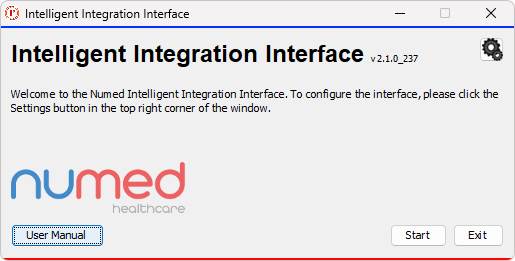

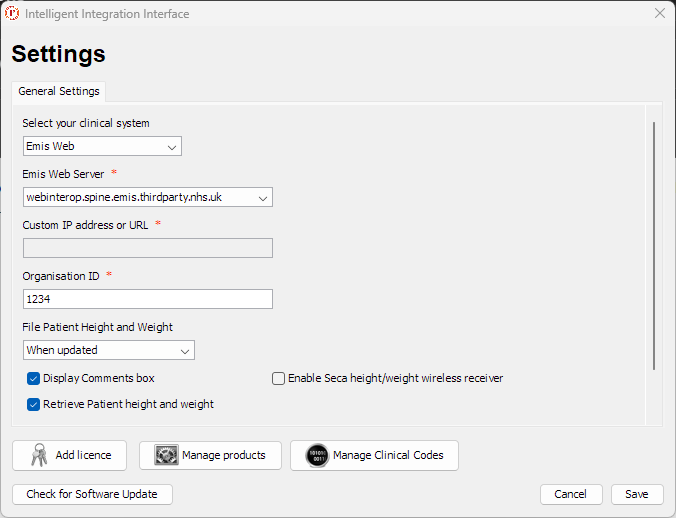

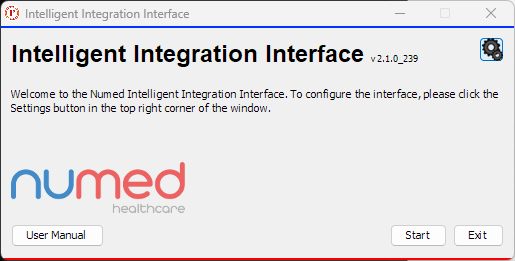

28. Launch the Intelligent Integration
Interface (I3) and click the settings cog in the top right-hand corner

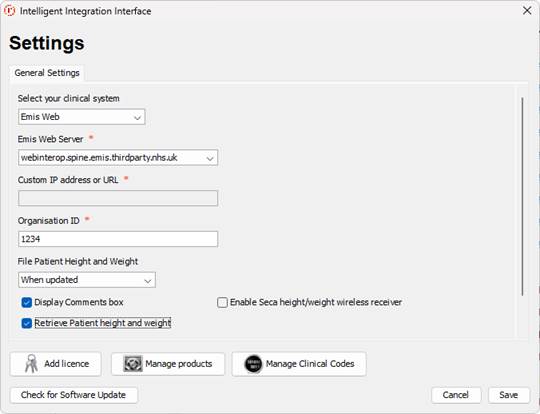

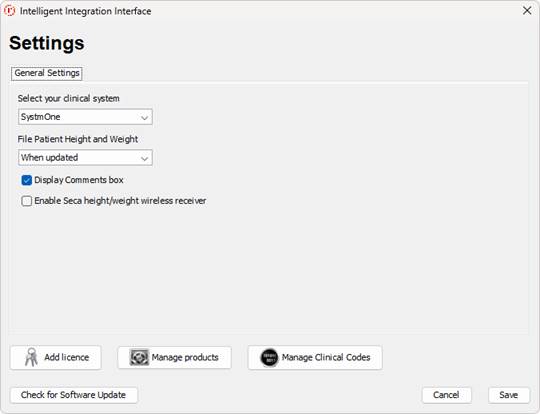

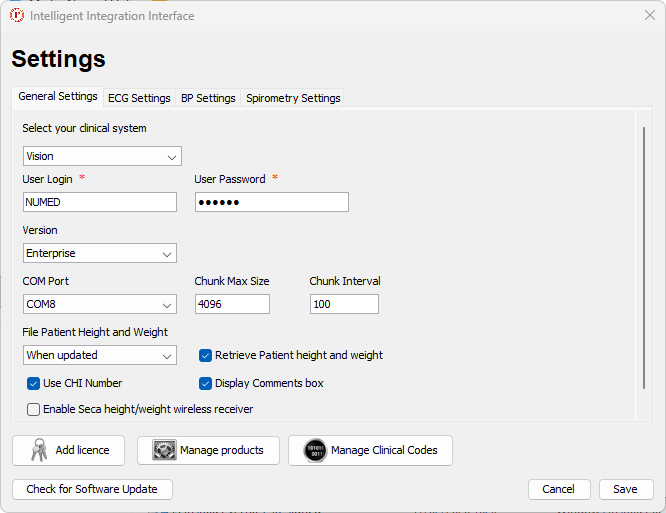

29. Configure correctly for the Clinical
System
TPP SystmOne
EMIS Web
Please note that the EMIS
Web Server is set for England in this example, please ensure that you select
the correct one for the region. The Organisation ID is the EMIS number (may be
known as CDB number)

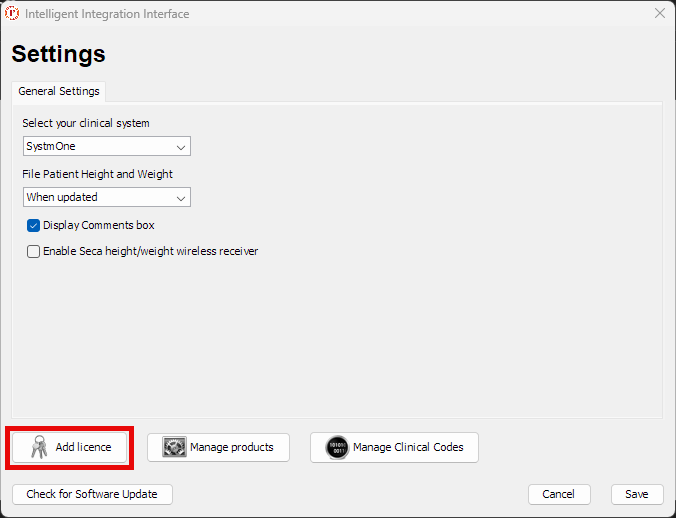

30. Click Add license

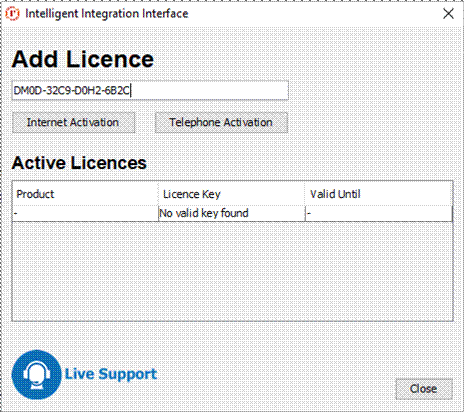

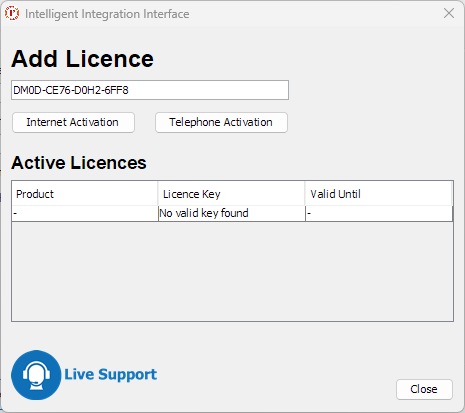

31. Enter the supplied license key from
Numed in the box and click Internet Activation, once added click Close – please
note that the license key in the image is a dummy and will not work

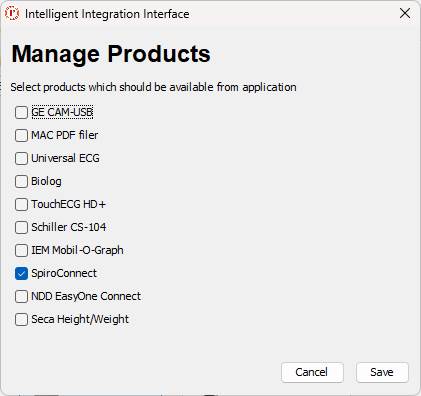

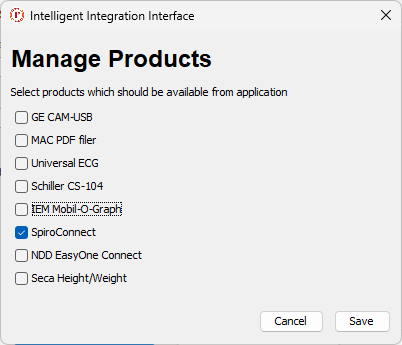

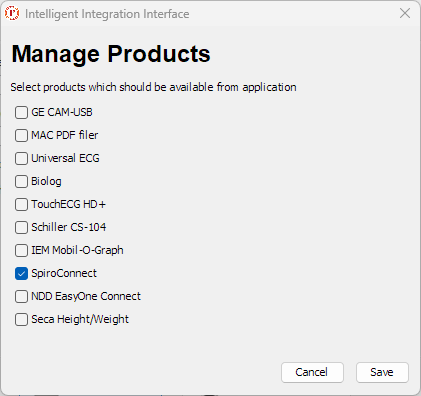

33. Ensure that SpiroConnect is ticked
and remove any non-required products for this customer, please note that they
may have products other than SpiroConnect, then click Save
35. Click Save
and exit the settings
For TPP SystmOne customers please ensure that a
user with high-level access runs the software for the first time to approve the
connection to SystmOne
For EMIS web please ensure that the Intelligent
Integration Interface Partner api has been fully activated in the EMAS manager
before the first use
ArtiQ Integration with SpiroConnect Data Manager

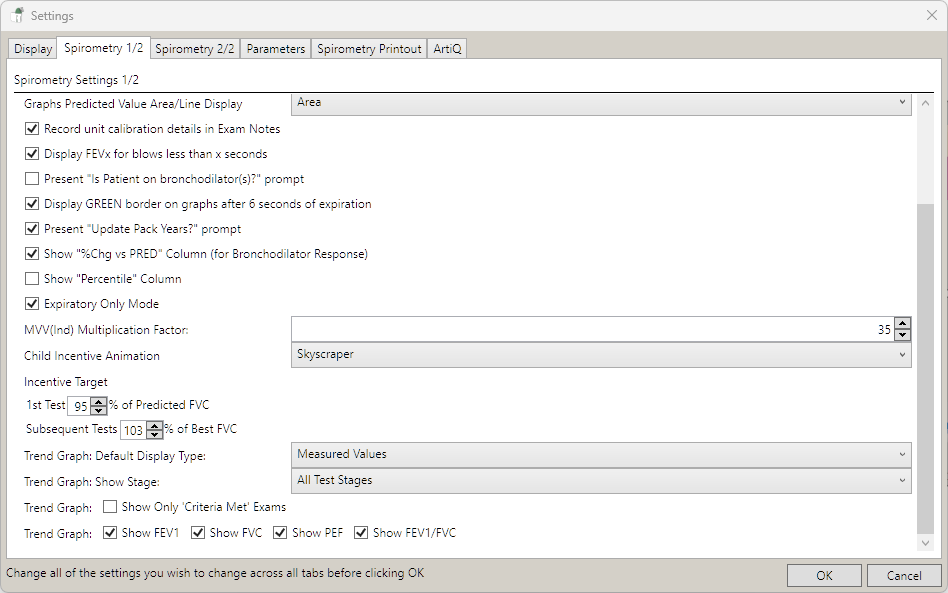

1. In Spirometry 1/2 ensure Show %Chg vs PRED is ticked

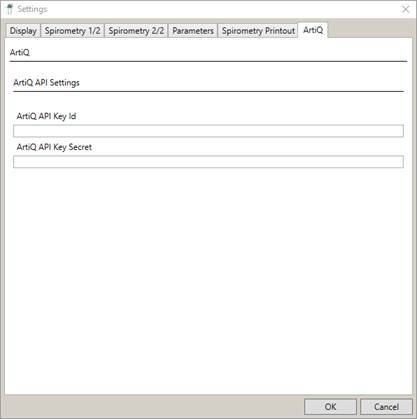

2. On the ArtiQ tab enter the Key ID and Key Secret
supplied by Clario (ArtiQ) here.
